3 | Product description BÜCHI Labortechnik AG
12/34 Operation Manual Ultrasonic Package
3.3 Type plate
Type plate on the ultrasonic controller is located in the rear on the side .
XXXXXXXXX
XXXXXXXXXXX
XXXXXXXXXX
XXXXXXXX
XXXX
XXXX

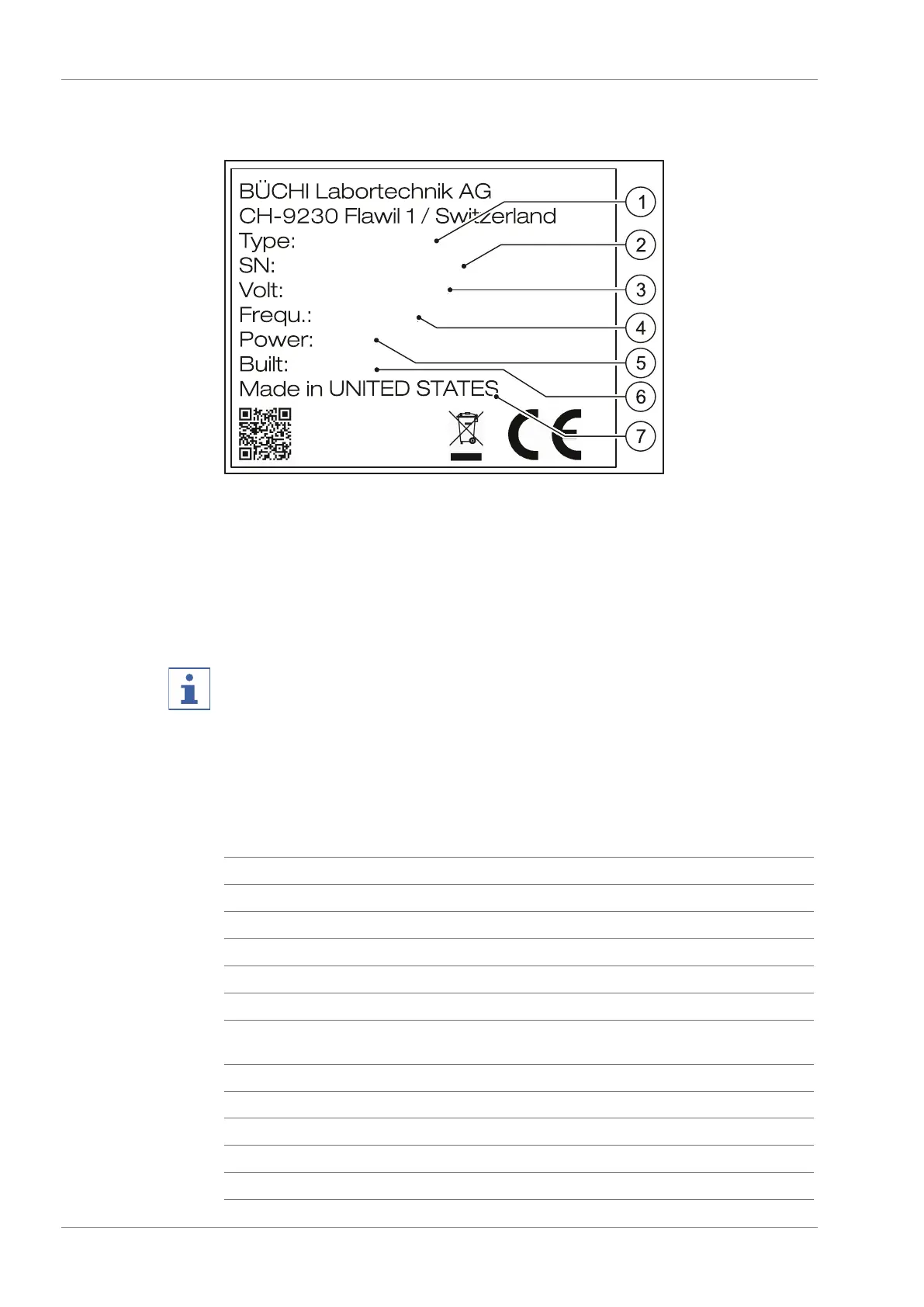

Fig.5: Type plate
1 Device name 2 Serial number
3 Input voltage range 4 Frequency of input voltage
5 Maximum power rating 6 Year of manufacture
7 Country of manufacture
3.4 Scope of delivery
NOTE
The scope of delivery depends of the configuration of the purchase order.
Accessories are delivered as per the purchase order, order confirmation, and deliv-
ery note.
3.5 Technical data
3.5.1 Ultrasonic controller
Dimensions (W x D x H) 223 x 242 x 79 mm
Weight 1.8 kg
Connection voltage 100 - 240 ± 10 % VAC
Frequency 50 / 60 Hz
Power consumption max. 50 W
IP Class 20
3.5.2 Ultrasonic nozzle
Maximum operating temperature of the nozzle 100 °C
Dimensions (W x D x H) 51 x 51 x 190 mm
Weight 0.54 kg
Connection voltage 23 - 25 ± 5 % VAC
Ultrasonic frequency 60 kHz
