8
Digestion Unit K-435
u
4 Installation
4.4 Hose Connections
Place the contact guard (A) with the pre-mounted hoses on
the apparatus as shown in the photo.
Assemble the connection to the suction module (B) and mount
it on the hose (C) and on the suction module (D).
To exhaust the digestion gases, connect the EPDM hose (E)
to the Scrubber B-414 or a water jet pump (e.g., one made
of plastic, Article No. 02913). Please note that the shortest
possible hose connections should be used.
When a water jet pump is used, unpleasant odors can escape
into the immediate surroundings if the suction is inadequate.
If only a suction module (D) is used, the unused hose (C) must
be closed with a rubber stopper.
The Scrubber B-414 220 V, 240 V can be connected directly
to the K-435 with a connecting cable (Art. No. 14738).
However, care must be taken that the voltage of the scrubber
corresponds to the voltage of the K-435.
If the apparatus is operated without remote control, the control
of the scrubber B-414 is regulated by the main switch on the
Digestive Unit, or in other cases with the Control Unit B-436.
026757
002073
026240 003577

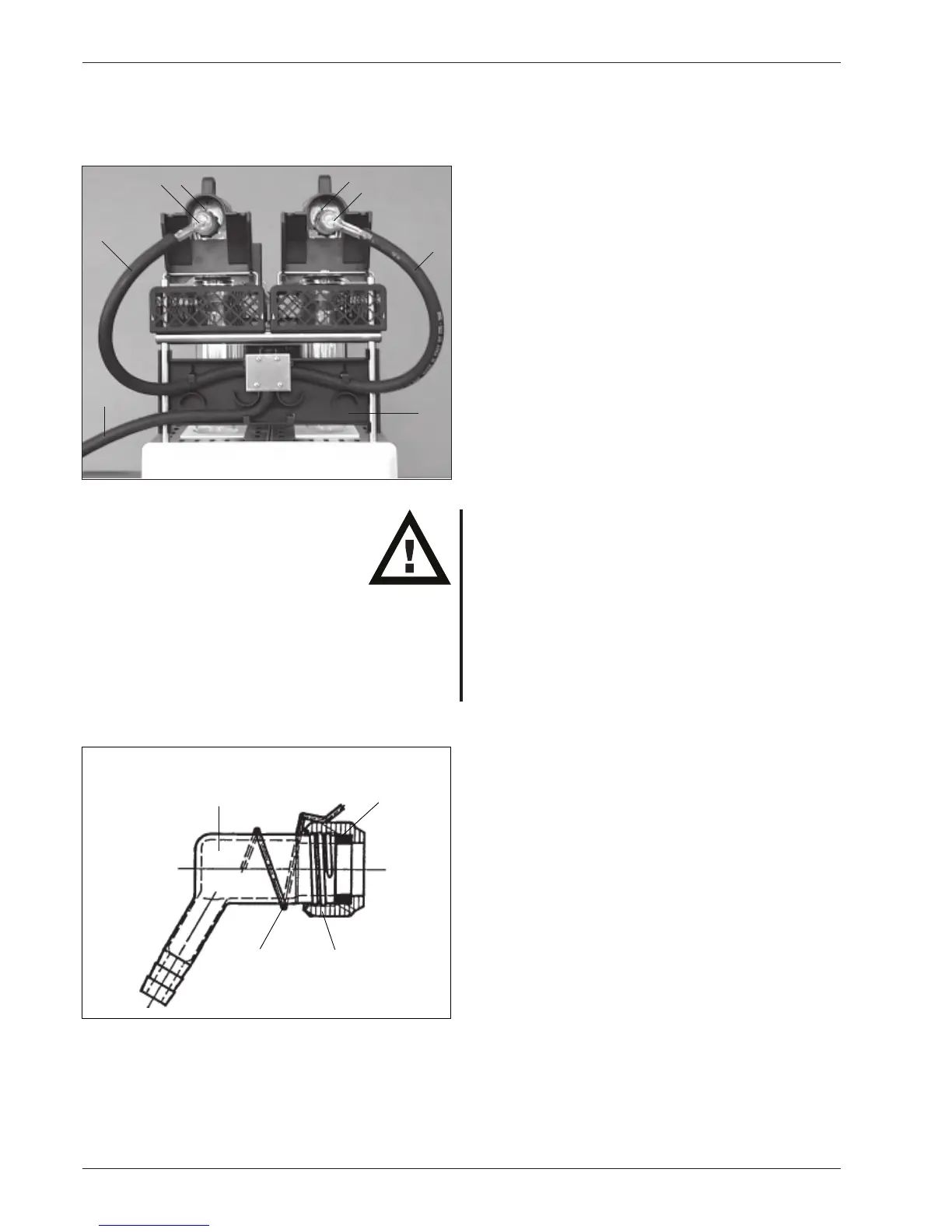

Figure 3: Hose connections, enlarged view
Figure 4: Connection to suction pipe.
u
u
u
u
u
u
u
A
E
C
B
D
D
B
C
uD
