Buderus Logamatic 2107 Applications Manual

10
|
Logamatic 2107 Controls
Applications Manual
Logamatic 2107 Controls applications manual | 06.2018
Technical specifi cations are subject to change without prior notice

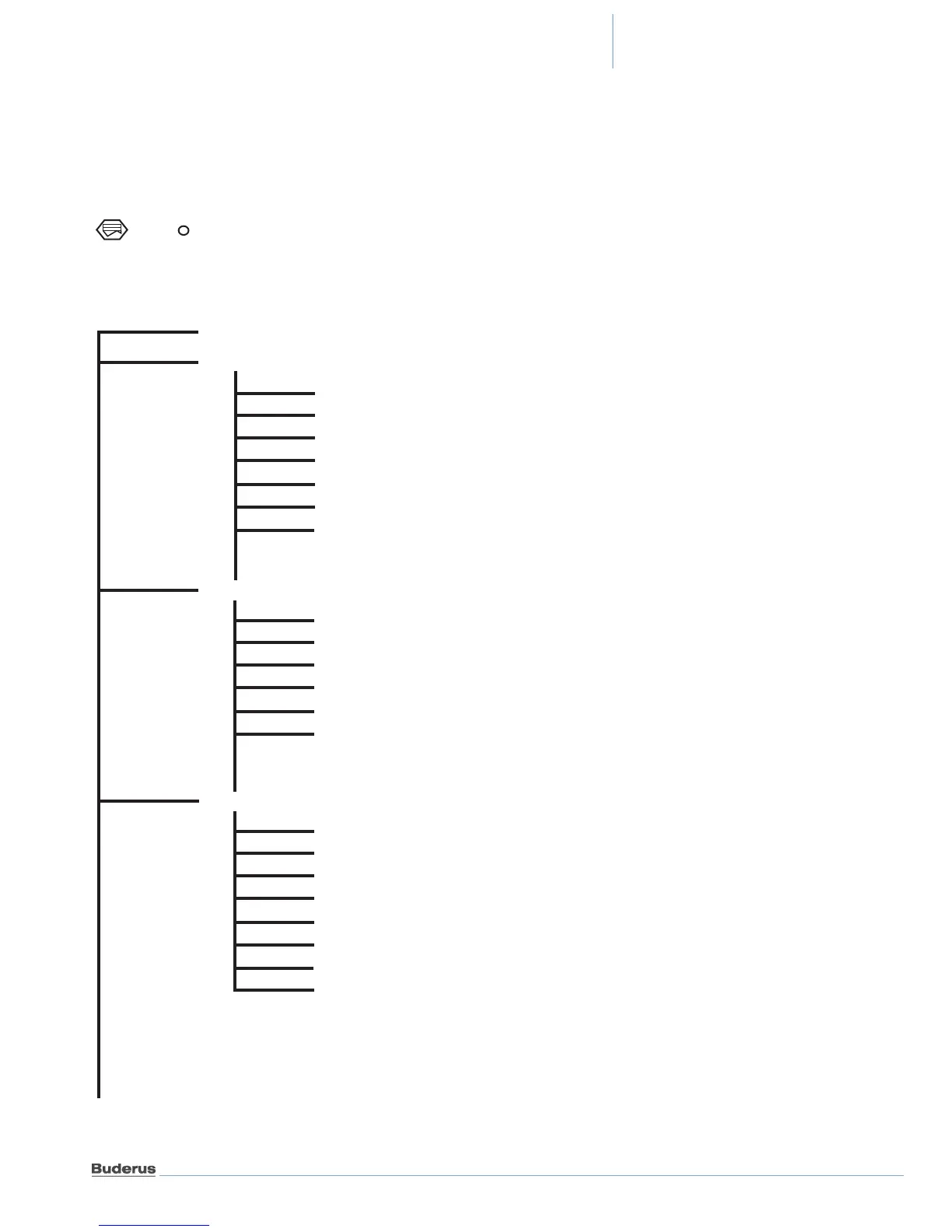

5 Setting parameters and display
data for the Logamatic 2107
Display
AMERICAN Language selection
BOILER Boiler parameters
FREEZE TEMP Freeze protection limit
BUILDING Building response
2-STAGE1 Burner type¹
MIN MOD² Minimum modulation output²
TIME RUN² Minimum burner run time²
PUMPLOGIC Pump logic threshold
MAX TEMP Maximum boiler switch-off temperature
CIRCUIT 01 Heating circuit 1 installation parameters (unmixed heating circuit)
PERIM HTG Heating system
REF TEMP Design temperature
REMOTE 1 Remote control ON/OFF
ROOM COMP Room temperature compensation³
OA SETBACK Type of setback
OFFSET Room temperature offset
CIRCUIT 02 Heating circuit 2 installation parameters (mixed heating circuit)4
FLOOR HTG Heating system
REF TEMP Design temperature
DHW PR5 DHW priority⁵
MAX TEMP Maximum heating circuit temperature
REMOTE 2 Remote control ON/OFF
ROOM COMP Room temperature compensation³
OA SETBACK Type of setback
OFFSET Room temperature offset
Note: For footnotes, see next page
+
Press the ‘Display’ key and ‘Install’ key at the same time to call up the
service level. Alternatively press (1....7), clock, and return arrow button
simultaneously. See Chapter 3 for extended functions.

Buderus Logamatic 2107 Specifications

General

Category	Control Systems
Type	Heating Control Unit
Voltage	230 V
Frequency	50 Hz
Protection class	IP20
Ambient temperature	0°C
Application	Heating systems
