Logamatic 2107 Controls
Applications Manual
Logamatic 2107 Controls applications manual | 06.2018 Technical specifi cations are subject to change without prior notice
4 Installation of the Logabracket
The Logabracket is designed to create strain relief for your line
voltage and low voltage wiring for the 2107 Logamatic controls.
The bracket is mainly designed for use with the G115, G125,
GB125 and G124X boilers, but with minor modifi cations can be
used on other boiler models as well.
G115, G125, GB125, G124X
Line the bracket up with holes, place the Logamatic in place
over the holes and secure with screws provided. Four conduit
connections are provided for line voltage wiring; a slotted
opening is used to run low voltage sensor wiring.
G215
It is necessary to bend down the tabs on the rear jacket panel
to prevent interference between bracket and jacket panel.
G234X, G334X
Simply cut off the tabs of the bracket and mount on the rear
panel by drilling an additional hole for a second mounting screw.
GA124, GA244
These boilers do not require the bracket as strain relief
connections are provided on the rear of the boiler.

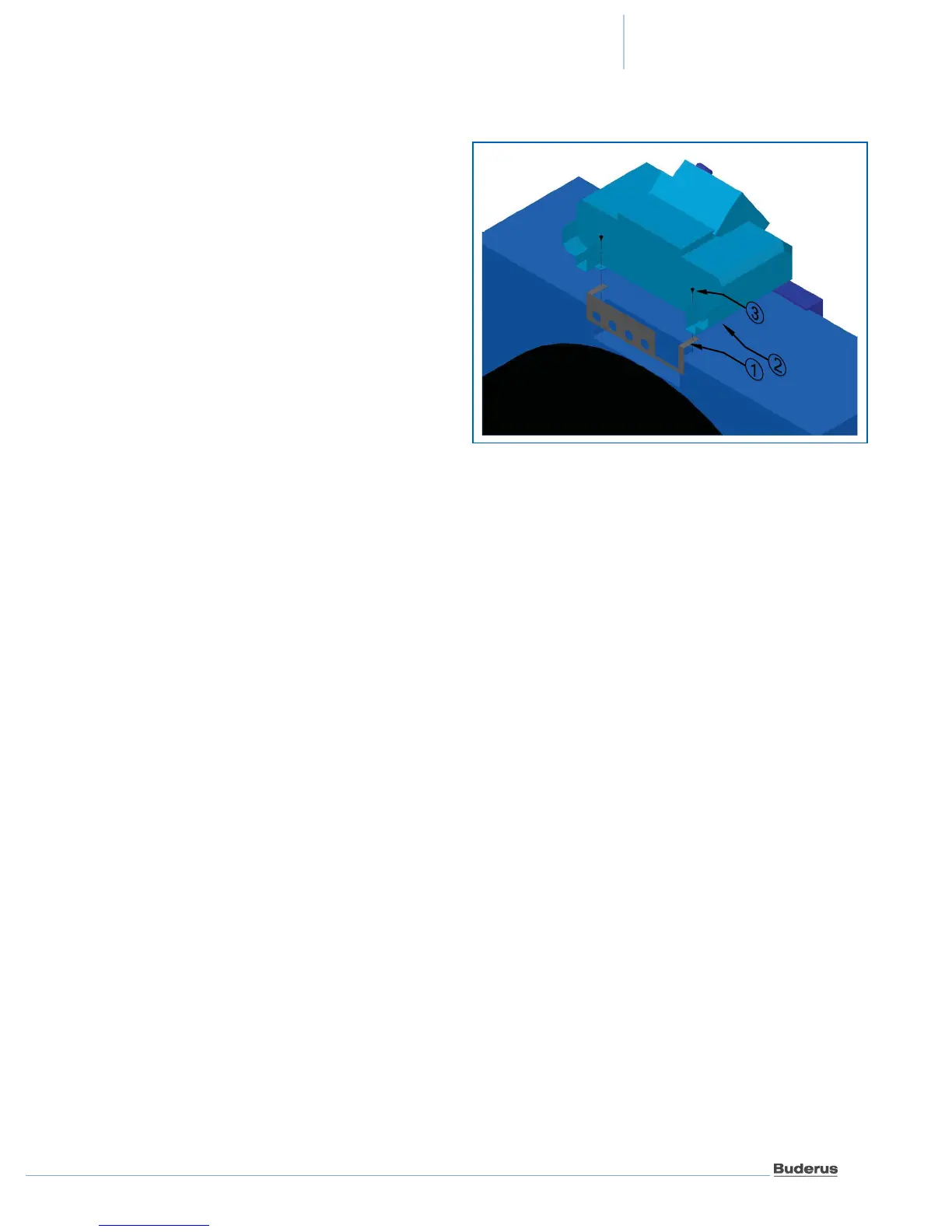

Figure 1 Logabracket installation
1 Logabracket
2 2107 Logamatic control
3 Screws

Buderus Logamatic 2107 Specifications

General

Category	Control Systems
Type	Heating Control Unit
Voltage	230 V
Frequency	50 Hz
Protection class	IP20
Ambient temperature	0°C
Application	Heating systems
