Operation of the heating system3
3.4.4 Filling the heating system
Filling and refilling of the heating circuit must been
carried out by a method that has been approved by the
Water Regulation Advisory Scheme (WRAS), for the
type of heating appliances, i.e. Domestic (in-house)
Fluid Category 3. Non-Domestic (other than in-house)
Fluid Category 4. Depending on the Fluid Category the
approved method should comprise of the following:
1. Requirements Fluid Category 3 systems (fig see
below)
z Control valve (stop valve) including a double check
valve on the mains cold water supply pipe
z Temporary connection to e removed after filling
(filling loop)
z Control valve (stop valve) on the heating system
pipework
2. Requirements Fluid Category 4 systems (fig see
below)
z Control valve (stop valve) on the mains cold water
supply pipe
z Strainer
z Verifiable Backflow Prevention Device with reduced
pressure Zone(RPZ valve assembly) incorporating a
Type BA air gap
z Tundish
z Control valve (stop valve) on the heating system
pipework
z Shut off the pressure expansion vessel from the
system by closing the cap valve.
z Slowly fill the heating system. Observe the pressure
gauge whilst filling.
z Close the water tap and the boiler fill & drain valve
once the required operating pressure has been
reached.

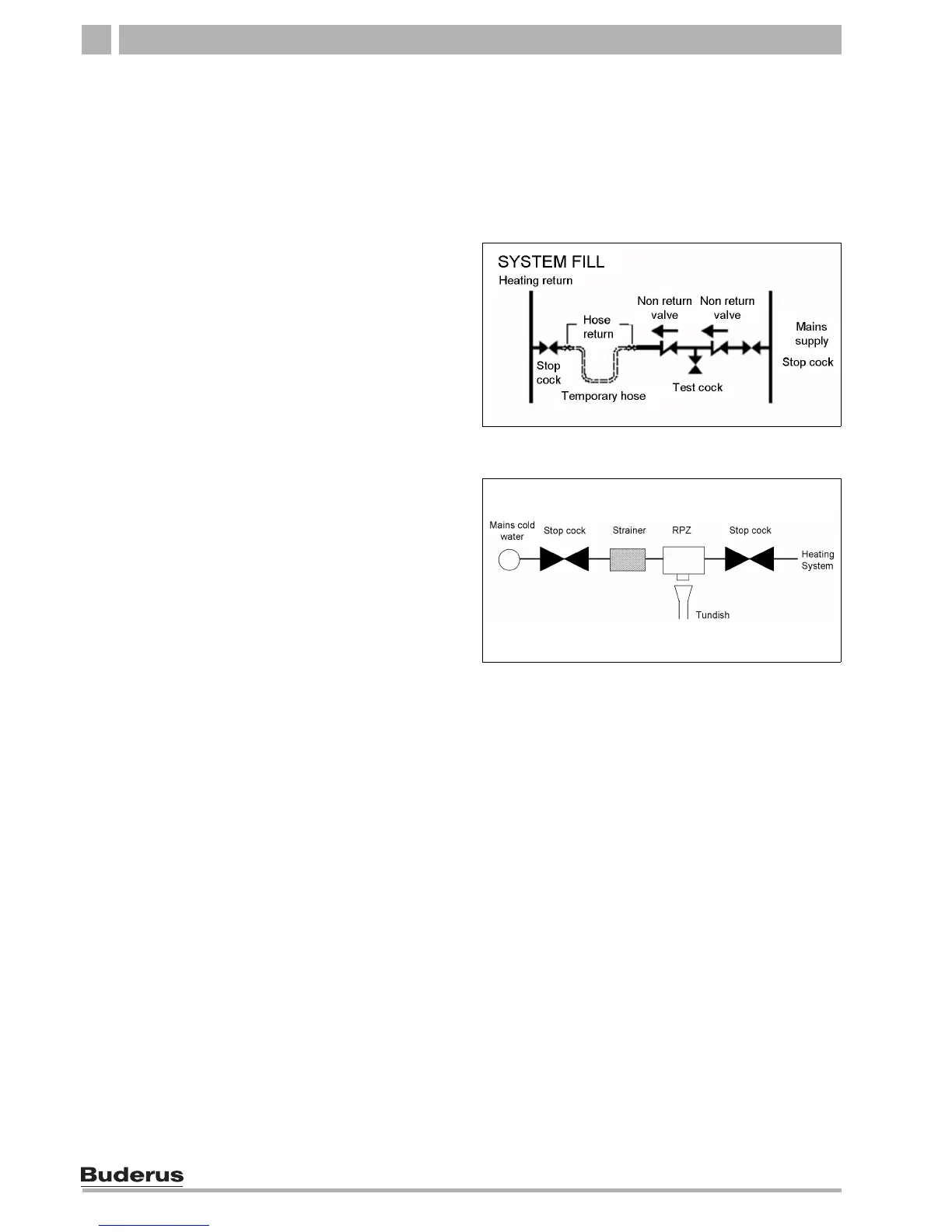

Fig. 5 Requirements Fluid Category 3 systems
Fig. 6 Requirements Fluid Category 4 systems
