Product description2
2 Product description
The boiler is a low temperature gas-fired boiler.
The boiler consists of:
– Automatic ignition unit and aquastat
– Logamatic 2107 control (accessory for separate
order)
– Boiler jacket and front panel
– Boiler block with insulation
– Burner
The automatic igniter, the aquastat and, if applicable,
the Logamatic 2107 monitor and control all electrical
components of the boiler.
The boiler jacket prevents energy loss and acts as
soundproofing.
The boiler block transfers the heat generated by the
burner to the heater water. The insulation prevents
energy loss.

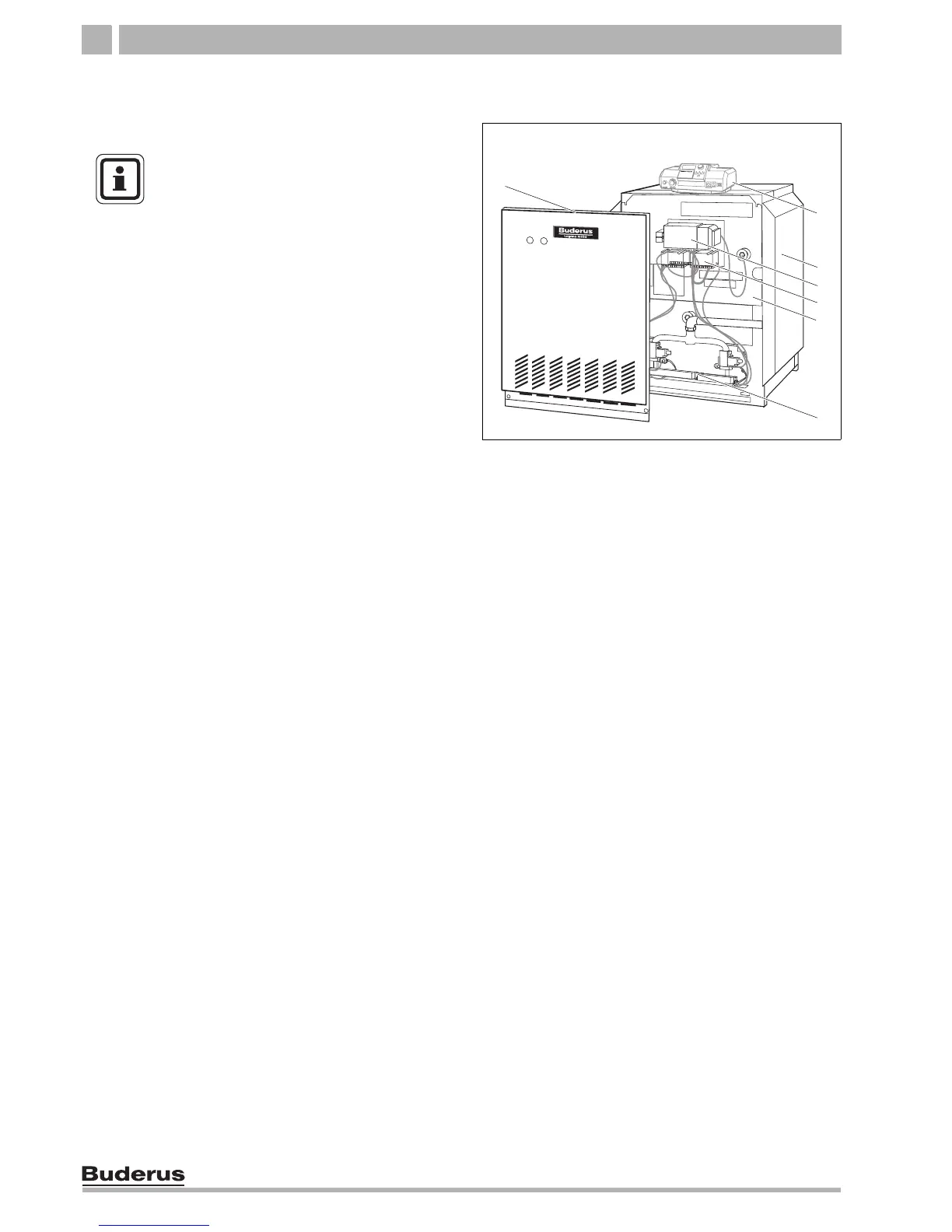

Fig. 1 Logano G334 X boiler
1 Boiler front panel
2 Logamatic 2107 control (accessory)
3 Boiler jacket
4 Aquastat (control unit)
5 Automatic igniter
6 Boiler block with insulation
7 Burner
7
1
6
4
5
3
2
USER NOTE
The boiler is fully functional with the
factory-installed aquastat. The Logamatic
2107 control can also be installed in
addition to the factory-installed aquastat.
