Instructions for conversion kit for Logano G334 X gas-fired boiler • Issue 09/2005
4.1.2 Placing heating system with Logamatic 2107 (accessory) in operation
The boiler is fully functional with the factory-installed
aquastat. The Logamatic 2107 control can also be
installed in addition to the factory-installed aquastat.
Switch on the heating system with the ON/OFF switch
on the control. The burner starts operating if heat is
required (Î observe control service manual).
5. Make sure that heat is required at the control. Select
“Manual operation” (hand symbol) with the mode
selector switch.
6. Switch on ON/OFF switch (“I” position). Then
continue with step 7.
4.2 Then carry out start-up procedures.
The following start-up procedures must be carried out
regardless of the control type.
7. Look at the igniter through the sight glass in the
burner housing.

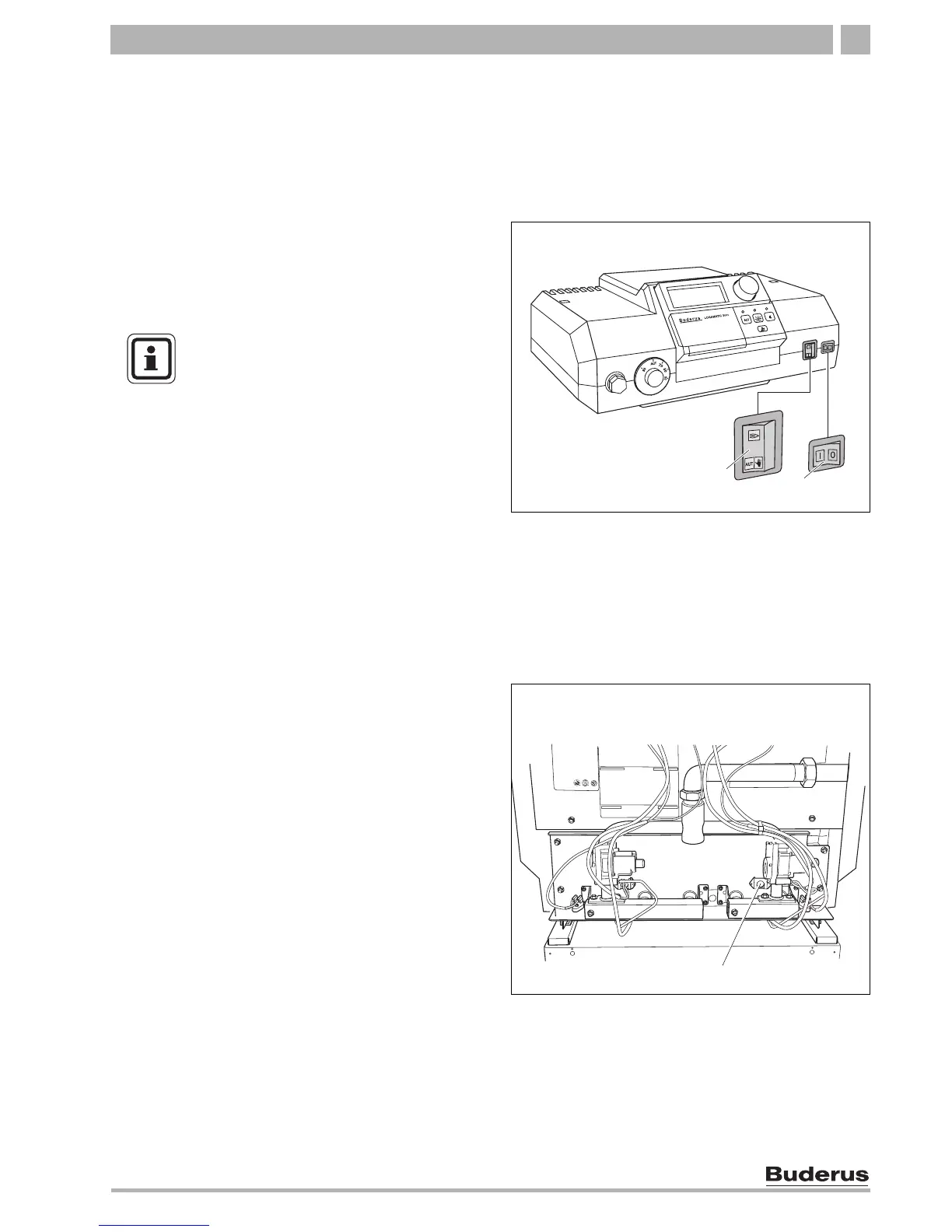

Fig. 9 Switching on heating system (with Logamatic 2107
control)
1 Mode selection switch
2 ON/OFF switch
2
1
USER NOTE
After carrying out the instructions for
starting described below, the control must
be set to “AUT” mode (automatic
operation) with the mode selector.
Fig. 10 Front view
1 Sight glass
1
