Product description
Logano G515 - Subject to technical modifications
5
2 Product description
The oil/gas fired boiler Logano G515 has been
developed and built employing the latest technologies
and safety regulations.
Particular emphasis is placed on ease of operation.
Please observe the safety instructions and the operating
instructions to ensure optimum safe, economical and
environmentally-friendly operation of your system.
The main components of the Logano G515 oil/gas fired
boiler are:
•Boiler block (Æ Fig. 1, [3]).
The boiler block transfers the heat generated by the
burner to the heating water.
• Boiler shell (jacket Æ Fig. 1 and 2, [1]), thermal
insulation (Æ Fig. 1, [2]).
The boiler jacket and thermal insulation minimize
energy loss.
• Control panel (Æ Fig. 1, [4])
The control panel is designed to monitor and control all
electrical components of the oil/gas fired boiler
Logano G515.

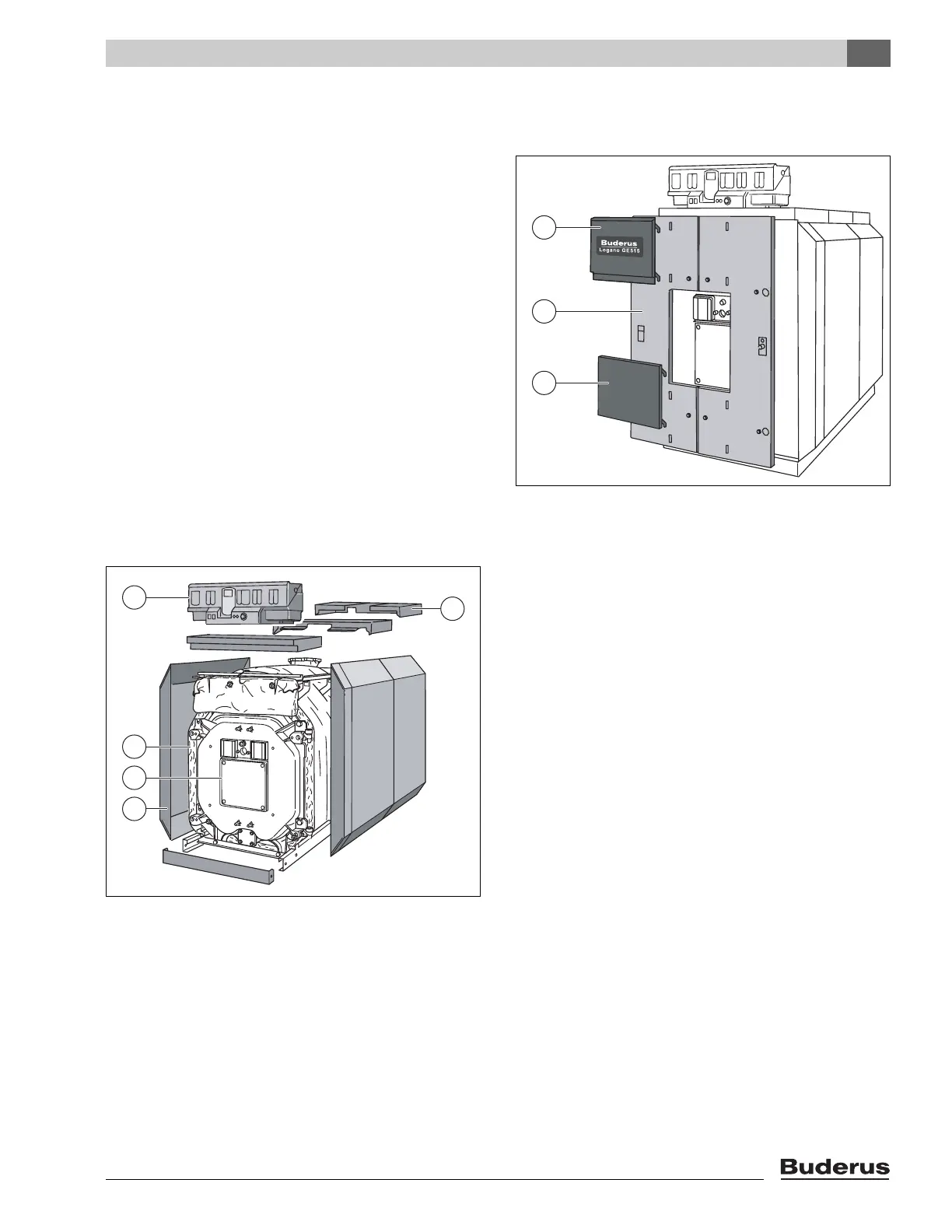

Fig. 1 Oil/gas fired boiler Logano G515
1 Boiler shell (jacket)
2 Thermal insulation
3 Boiler heat exchanger
4 Control panel
Fig. 2 Front jacket
1 Boiler shell (jacket)
2.1 Correct use
The Logano G515 is designed for heating boiler water
and water heating. Any other purpose is considered
improper use. Any resulting damage is excluded from the
manufacturer's warranty.
The Logano G515 can be operated with oil, gas, and
combination burners. For a list of the approved burners,
please contact Bosch Thermotechnology Corp.
This boiler can be operated with an aquastat, the
Logamatic 4000, and other control systems.
2.2 Certification and testing mark
This appliance has been tested and certified and meets all
applicable standards for the US and Canadian markets.
