Conversion to propane 3
5
We reserve the right to make any changes due to technical modifications.
Conversion instructions Logano GA124 special gas-fired boiler • Issue 2012/10
4. Turn gas valve ON/OFF button clockwise to OFF
position. Do not use force.
Replacing main gas orifices
5. Disconnect pilot gas line from gas valve.
6. Disconnect ignition cable from ignition module.

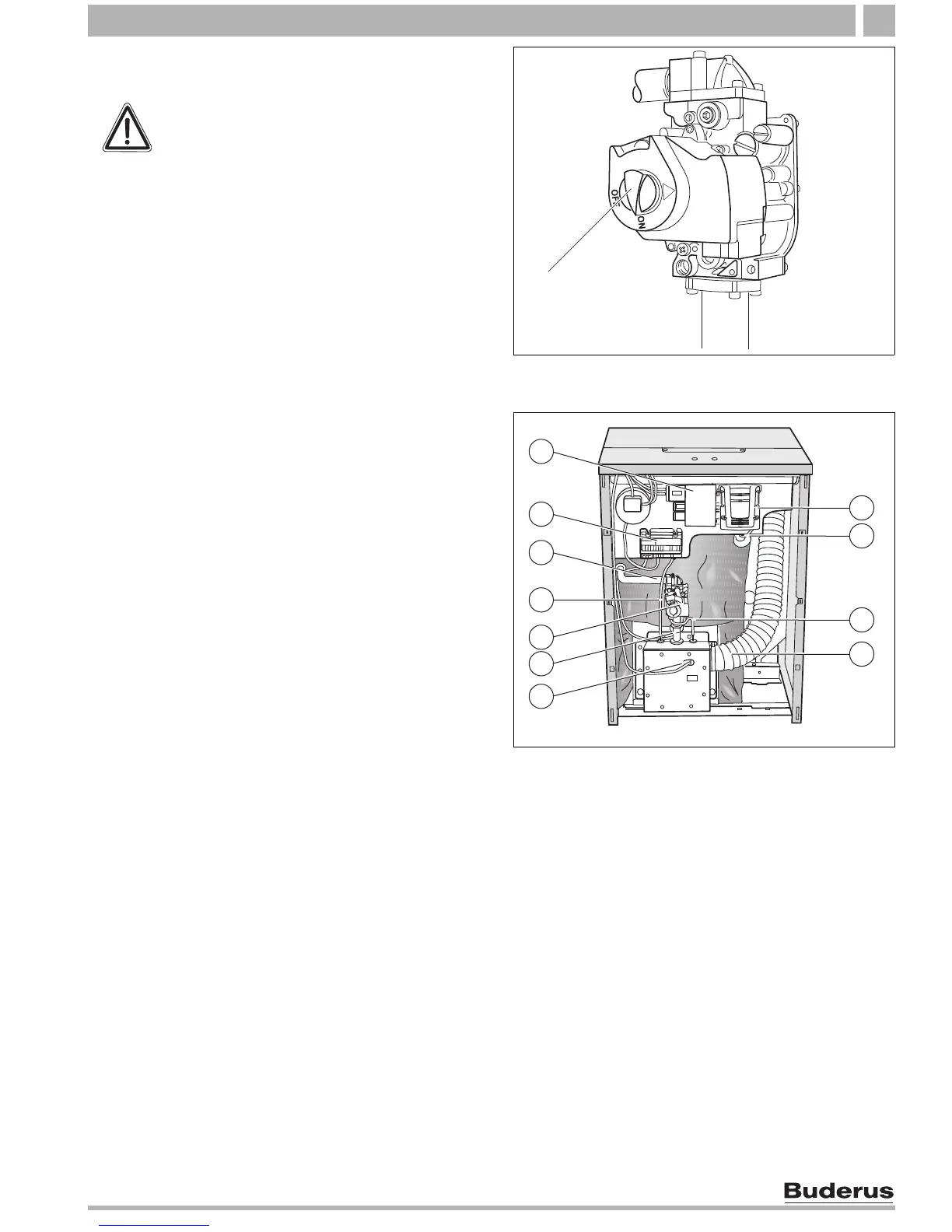

Fig. 2 Gas valve
1 ON/OFF button (at ON position)
WARNING!
RISK TO LIFE
from explosion of flammable gases.
Wait five (5) minutes until all gas
residues have dissipated. Check
whether there is any smell of gas,
including at floor level. If there is a gas
odor: STOP! Follow instructions in
section "B" of the safety instructions on
page 9 If there is no sign of a gas odor,
continue with the next step.
Fig. 3 Front view
1 Flame roll-out switch (boiler size 17)
2 Gas connection pipe
3 Gas valve
4 Ignition cable
5 Ignition module
6 Wire holder for gas supply line
7 Aquasmart
8 Pilot gas line
9 Air supply hose
10 Gas supply pipe
11 Fuse
4
1
2
3
10
11
5
8
7
6
9
6 720 804 894-01.1T
