Details about the MCM10 module
MCM10
58
2.6 Specification
2.6.1 General information
2.6.2 Dimensions

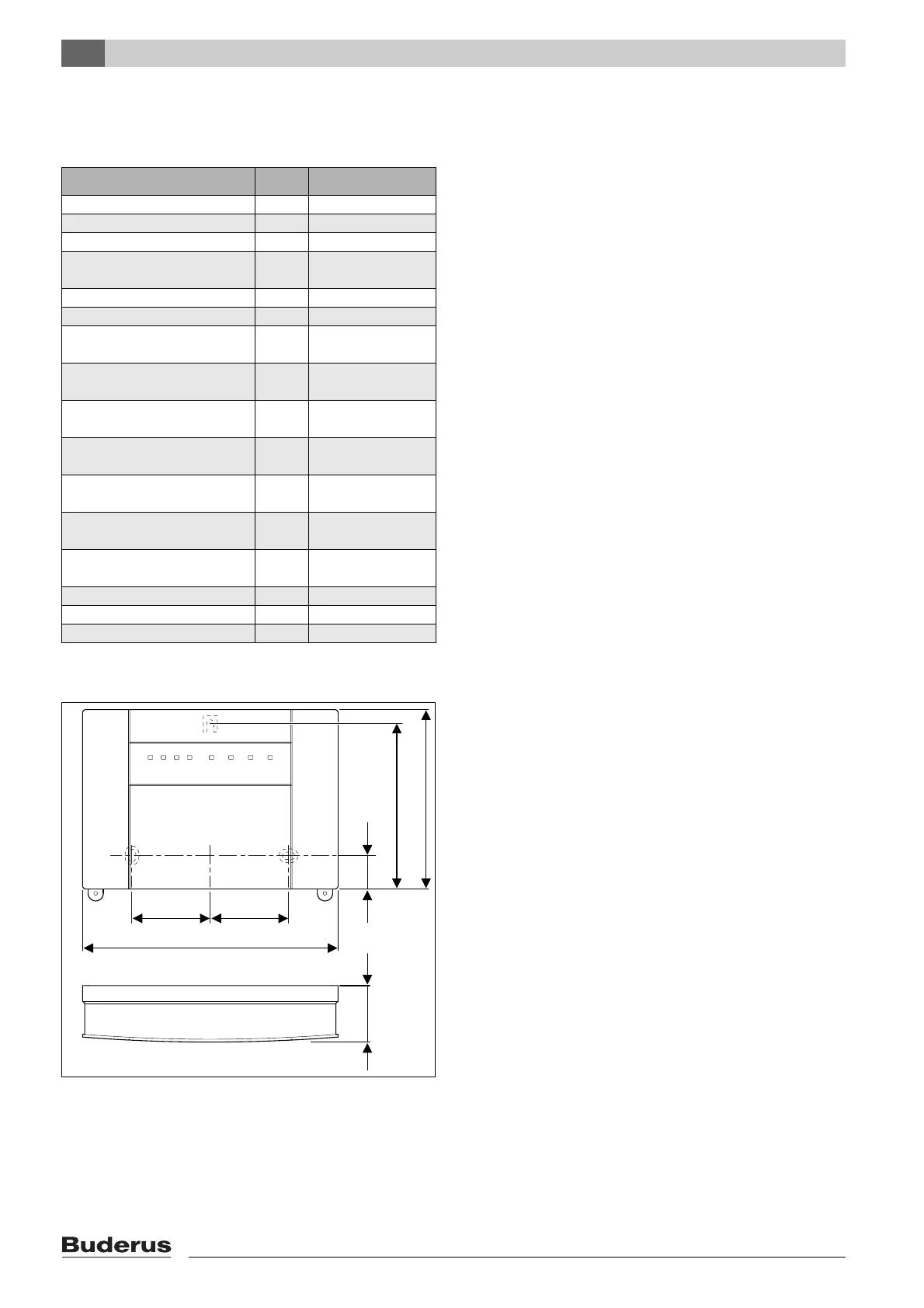

Fig. 2 Dimensions
Designation Unit Values
Weight (excluding packaging) kg 0.8
Rated voltage MCM10 VAC 230
Frequency Hz 50 … 60
Maximum on-site fuse protection on
the power supply side
A 16
Rated output MCM10 W 5
Rated voltage BUS V DC 15
Internal appliance fuse, heating
circuit pump output
AT 2.5 A, ceramic,
filled with sand
Measuring range, flow temperature
sensor
°C 0 … 100
Measuring range, outside
temperature sensor
°C
– 40
… 50
Permissible ambient temperature
MCM10
°C 0 … 50
Permissible ambient temperature,
flow temperature sensor
°C 0 … 100
Permissible ambient temperature,
outside temperature sensor
°C – 50 … 100
Maximum cable length, EMS BUS
connections
m(Æ tab. 7, page 65)
Maximum length of sensor leads m (Æ tab. 8, page 65)
EMC suppression level to EN 60730
IP rating IPX4D
Tab. 2 General information
62 62
37
165
142
58
235
