11. CHANGING THE INJECTOR (Gas safe engineer only)
16/22
11.2 Changing Burner Injectors for Ovens: (Figure B)
- In order to change the burner injectors, open doors of the oven and remove the
base plate.
-Unscrew injector connection, then unscrew the injector clockwise with an
appropriate wrench and demount.
Identify the injector depending on the new gas type and pressure, in the gas system
change table (NOZZLES AND SETTINGS) and find this type of injector in the reserve
injector pocket. Check the number on the injector whether it is the correct type of
injector. Ensure the injector is unobstructed.
- Mount the injector to injector connection, and screw clockwise tightly.
- Remount the injector connection. Gas leakage is checked with soap bubble
method.

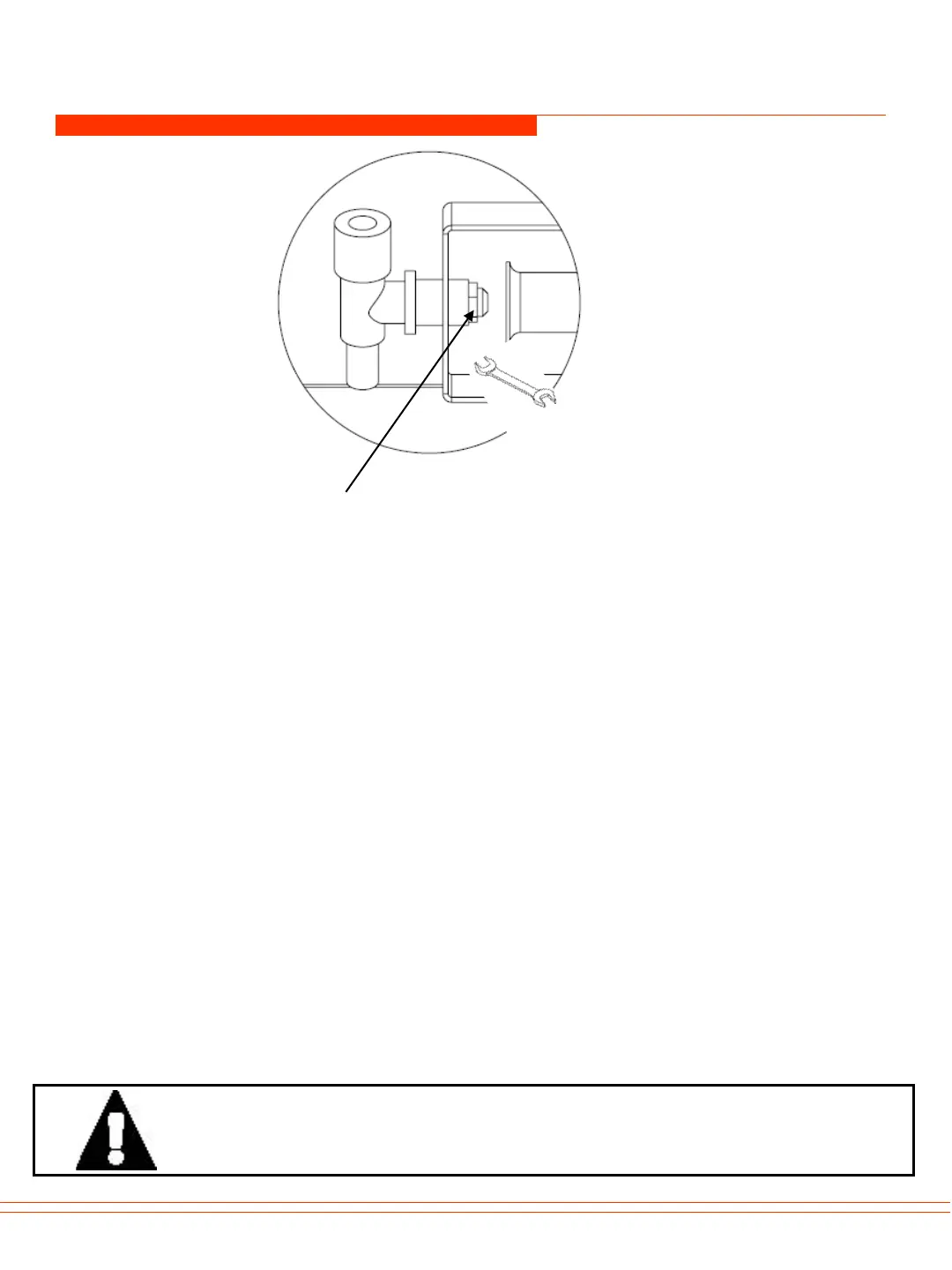

Figure B: Changing Burner Injectors for Ovens
11.3 Making Air Adjustments
-Air adjustment ring should always be in the open position for all burners.
FINAL ACTION:
Replace LABEL#1 or LABEL#2 respectively. (Look at page 7)
NOTE : Burner injectors for changing the gas system are delivered
with the appliance.
