Buffalo CT253 - Exploded View and Spare Part List

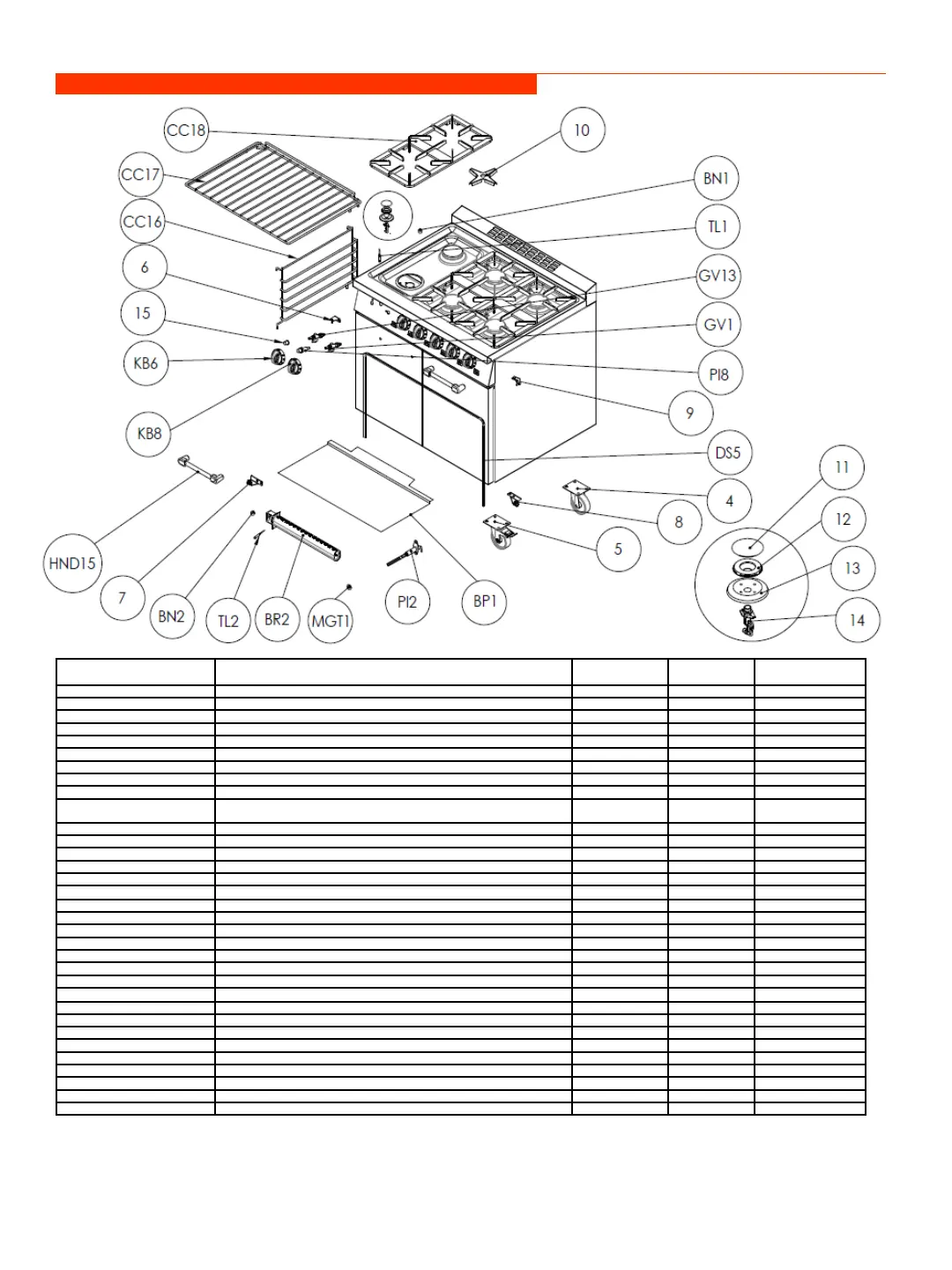

14. EXPLODED VIEW AND SPARE PART LIST
Note1: THE SETTINGS OF SPARE PARTS TO BE SUPPLIED FROM THE MANUFACTURER OR THE
MANUFACTURER'S REPRESENTATIVE MUST NOT BE CHANGED.
Note2: SPARE PARTS REQUIRED FOR THE SERVICE OF APPLIANCES MUST BE ORIGINAL PARTS PROVIDED BY
BUFFALO OTHERWISE THE APPLIANCE WILL BE LEFT OFF OF THE WARRANTY COVERAGE.
21/22
Product Description: RANGE
COOKERS Model:CT253
Code
Description
: Qty. Unit Pos.No
6270.00100.28
CASTOR
3302 PUR 100 2 pcs. 4
6270.00100.29
CAST
OR WITH BRAKE 3302 PUR 100 TBF 2 pcs. 5
6260.00111.17
SIDE HANGER LEFT/RIGHT
2 pcs. CC16
6260.00111.16
OVEN SHELF
2 pcs. CC17
6260.00058.92
PAN SUPPORT 285*565 MOD.
3 pcs. CC18
6232.00004.15
MAGNET Q25*5*5 NEODIUM
2 pcs. MGT1
2865.Z30.GR009.06
DOOR HANDLE
2 pcs. HND15
6020.00003.01
OVEN DOOR SEAL
1 pcs. DS5
6267.00025.16
THERMOSTATIC GAS VALVE FOR OVEN
COPRECI MT 22300
1 pcs. GV13
6267.00002.682
OVEN BURNER 35CM
1 pcs. BR2
6267.00029.05
PIEZO IGNITER IRV
1 pcs. PI8
6226.00011.20
COVER FOR PIEZO IGNITER
1 pcs. 15
6267.00024.15
T
HERMOCOUPLE FOR OVEN 8/1-SOCKET 1500 MM. 1 pcs. TL2
6267.00031.27
WIRED SPARK PLUG M OZ .KB.10210
1 pcs. PI2
6267.00005.03
GAS VALVE FOR OPEN BURNERS TYPE 16
6 pcs. GV1
6267.00001.251
OPEN BURNER CAP
6 pcs. 11
6267.00001.252
OPEN BURNER SPLITTER
6 pcs. 12
6267.00001.253
OPEN BURNER BASE
6 pcs. 13
6267.00001.254
OPEN BURNER VENTURI
6 pcs. 14
6267.00024.05
T
HERMOCOUPLE FOR OPEN BURNER 8/1*8/1 L600MM ERTA OZM 13 M.ÖZ.10620 6 pcs. TL1
6267.M8075.100
NOZZLE M8*075
-Ø1,00 MM.OPEN BURNER(LPG) 6 pcs. BN1
6267.M8075.130
NOZZLE M8*075
-Ø1,30 MM.OVEN BURNER(LPG) 1 pcs. BN2
6267.M8075.160
NOZZLE M8*075
-Ø1,60 MM.OPEN BURNER(NG) 6 pcs. BN1
6267.M8075.200
NOZZLE M8*075
-Ø2,00 MM.OVEN BURNER(NG) 1 pcs. BN2
6260.GR00015.40
KNOB FOR OPEN BURNERS Ø8 MM.(SET)
6 pcs. KB8
6260.GR00015.44
KNOB FOR OVEN Ø6 MM.(SET)
1 pcs. KB6
2865.Z20.00730056.M.25
DOOR HINGE BOTTOM LEFT
1 pcs. 7
2865.Z20.00730056.R.25
DOOR HINGE BOTTOM RIGHT
1 pcs. 8
2876.N20.00570034.M.25
DOOR HINGE UP LEFT
1 pcs. 6
2876.N20.00570034.R.25
DOOR HINGE UP RIGHT
1 pcs. 9
2865.Z20.07980594.7.10
OVEN BASE PLATE
1 pcs. BP1
2865.Z20.01830183.7.15
COOKER RING FLAME REDUCER
1 pcs. 10
