10-28 Vehicle Care
Engine Compartment

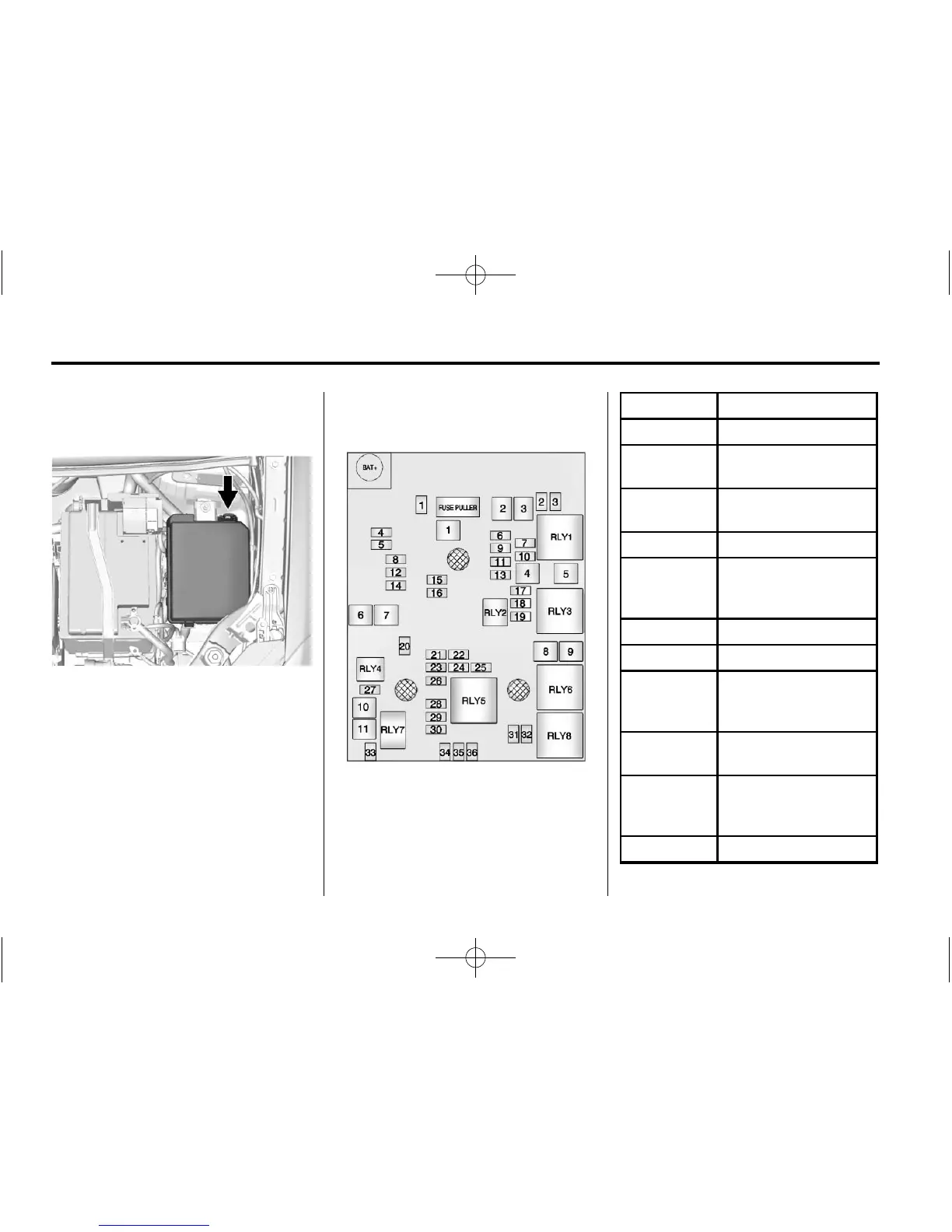

Fuse Block
To remove the fuse block cover,
squeeze the clip and lift it up.
Notice: Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Mini Fuses Usage
1 Sunroof
2 Outside Rearview
Mirror Switch
3 Canister Vent
Solenoid
4 Not Used
5 Electronic Brake
Control Module
Valve
6 Not Used
7 Not Used
8 Transmission
Control Module
Battery
9 BCM Regulated
Voltage Control
10 Fuel System Control
Module R/C/
Headlamp Leveling
11 Rear Wiper
To Next Page
