Vehicle Care 10-31

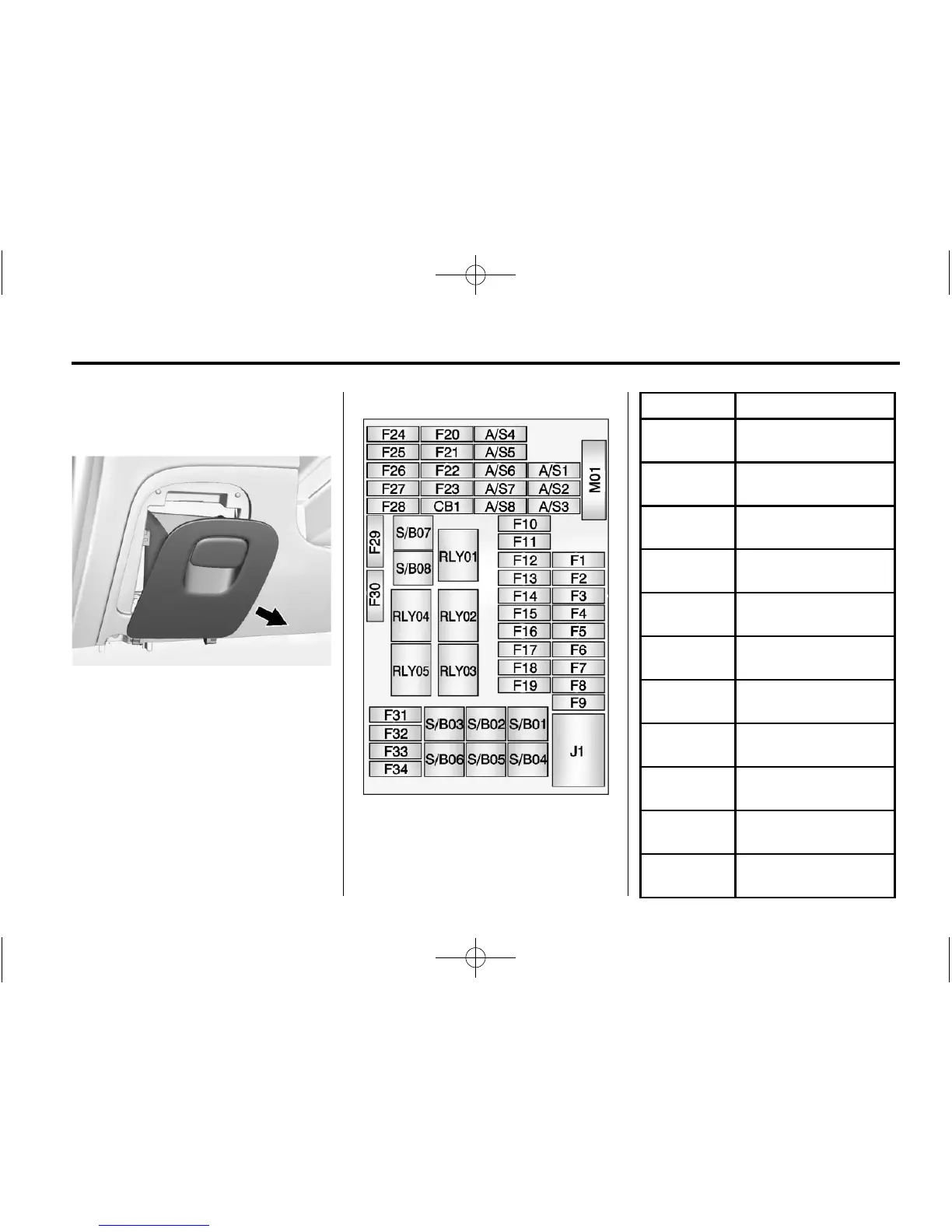

Instrument Panel Fuse
Block
The instrument panel fuse block is
on the underside of the driver side
instrument panel. To access the
fuses, remove the storage
compartment. To remove the
storage compartment, open the
compartment and pull it out.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Mini Fuses Usage
1 Body Control
Module 1
2 Body Control
Module 2
3 Body Control
Module 3
4 Body Control
Module 4
5 Body Control
Module 5
6 Body Control
Module 6
7 Body Control
Module 7
8 Body Control
Module 8
9 Discrete Logic
Ignition Sensor
10 Sensing Diagnostic
Module Battery
11 Data Link
Connection
To Next Page
