J-Case
Fuses
Usage
11 Starter Solenoid
U-Micro
Relays
Usage
2 Not Used
4 Spare
HC-Micro
Relays
Usage
7 Starter
Mini
Relays
Usage
1 Run Crank
3 Cooling Fan Mid
5 Powertrain Relay
8 Cooling Fan Low
HC-Mini
Relays
Usage
6 Cooling Fan High

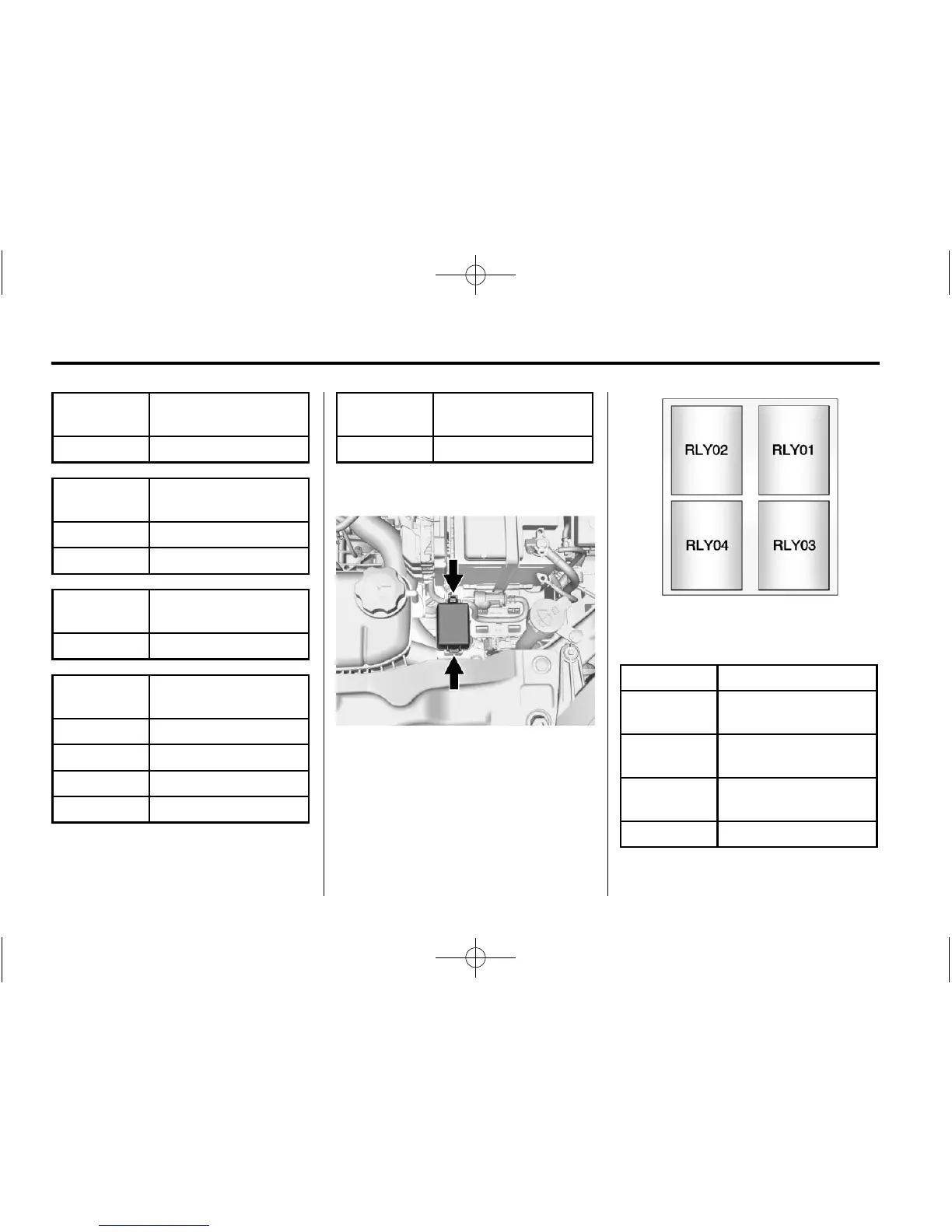

Auxiliary Fuse Block
To remove the fuse block cover,
squeeze the clips and lift it up.
Notice: Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
Relays Usage
01 Electric
Vacuum Pump
02 Cooling Fan
Control 1
03 Cooling Fan
Control 2
04 Trailer (N/A)
To Next Page
