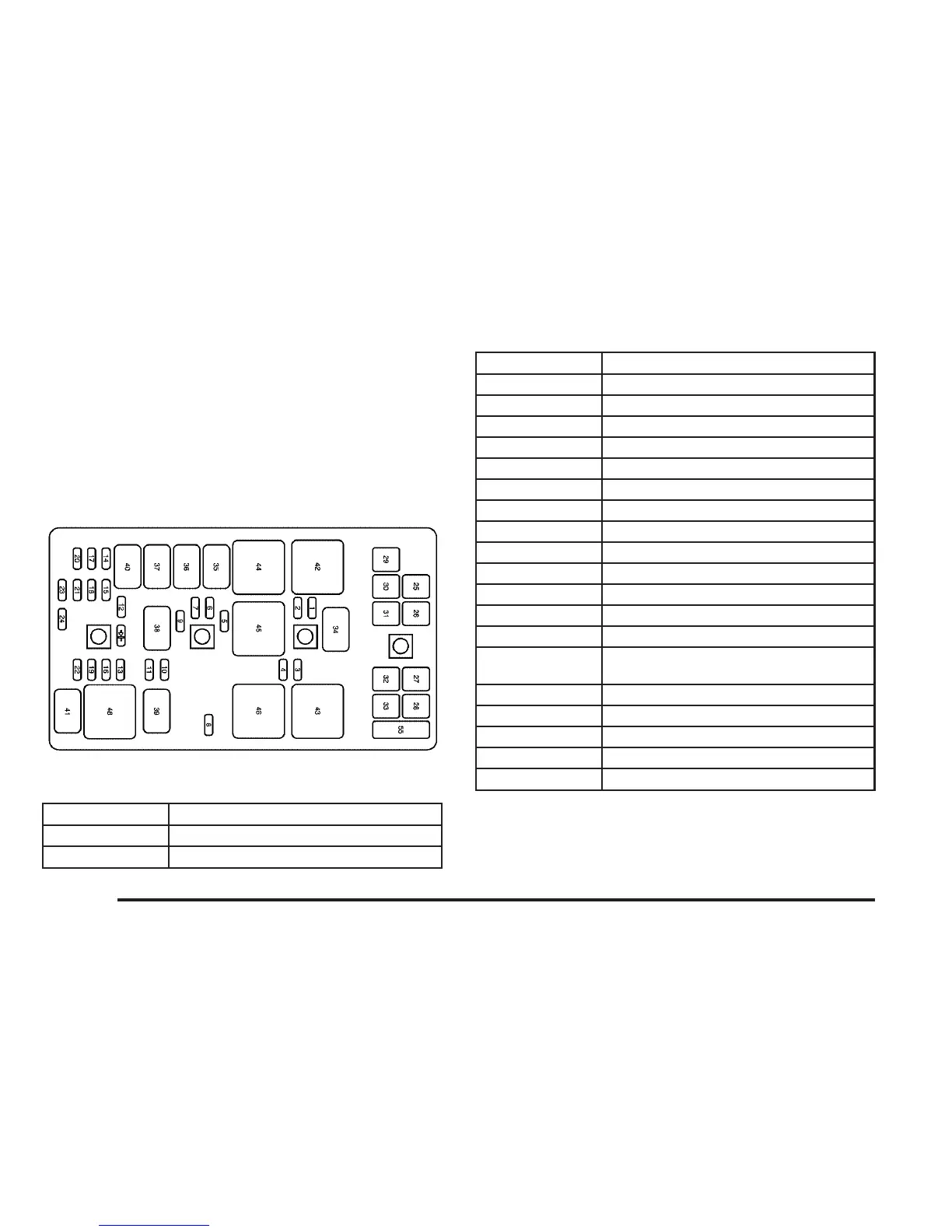

Underhood Fuse Block
Some fuses and relays are located in the underhood fuse
block on the passenger side of the vehicle in the engine
compartment. See Engine Compartment Overview on
page 5-12 for more information on location.
Notice: Spilling liquid on any electrical components
on your vehicle may damage it. Always keep the
covers on any electrical component.
Mini-Fuses Usage
1 Driver Side High-Beam
2 Passenger Side High-Beam
Mini-Fuses Usage
3 Driver Side Low-Beam
4 Passenger Side Low-Beam
5 Windshield Wiper
6 Washer/Regulated Voltage Control
7 Fog Lamps
8 Transmission Control Module
9 Supplemental Inflatable Restraint
10 Auxiliary Power
11 Horn
12 Emission
13 Air Conditioner Clutch
14 Oxygen Sensor
15 Powertrain Control Module
16
Powertrain Control Module,
Electronic Throttle Control
17 Electronic Throttle Control
18 Display
19 Antilock Brake Solenoid
20 Fuel Injector
21 Transmission Solenoid
3.6L & 3.8L V6 Engines
5-112
