Buick Encore Owner Manual (GMNA-Localizing-U.S./Canada-15498924) -
2022 - CRC - 5/27/21
190 Vehicle Care
Relays Usage
RLY05 Logistic mode

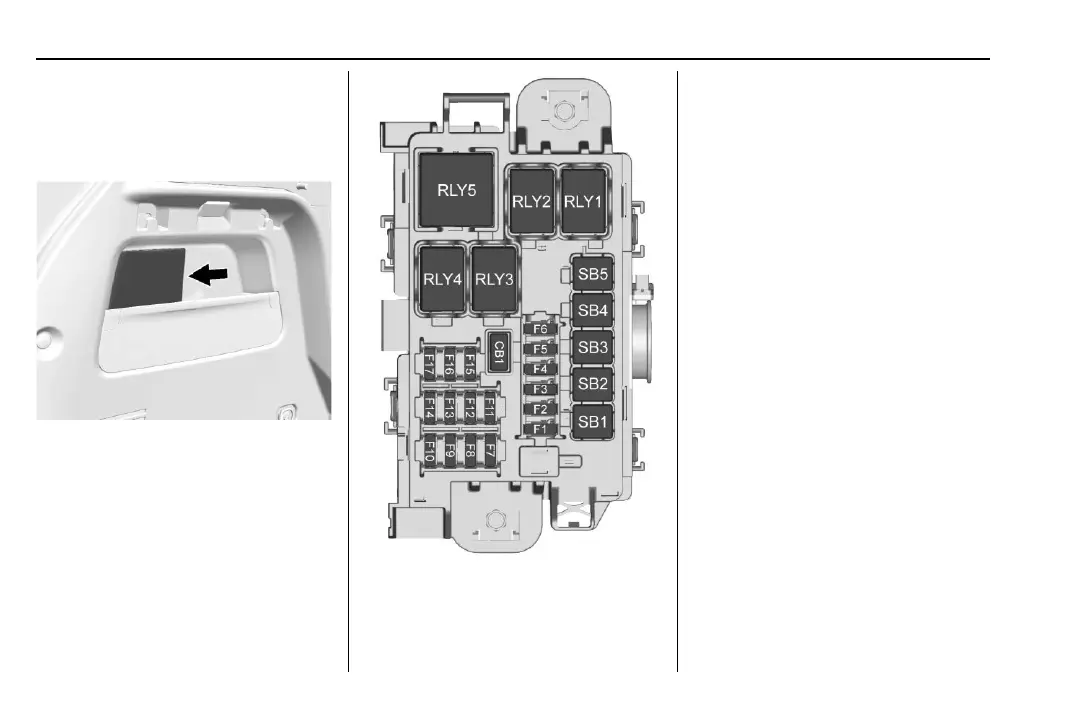

Rear Compartment Fuse Block
The rear compartment fuse block is behind a
cover on the driver side of the rear
compartment. To access the fuses, remove
the cover.
The vehicle may not be equipped with all of
the fuses, relays, and features shown.
Fuses Usage
F1 –
F2 Rear drive control module
Fuses Usage
F3 –
F4 –
F5 –
F6 –
F7 –
F8 –
F9 –
F10 –
F11 –
F12 –
F13 –
F14 –
F15 –
F16 –
F17 –
S/B Fuses Usage
S/B1 –
S/B2 –
S/B3 DC/AC inverter module
