6- and 9-Pin Data Plugs

The 6- and 9-pin data plugs connect the ECM Tuner to the

vehicle. Count the number of pins in the vehicle data port and

use the matching plug. (If both plug types are present, use the

9-pin connection.)

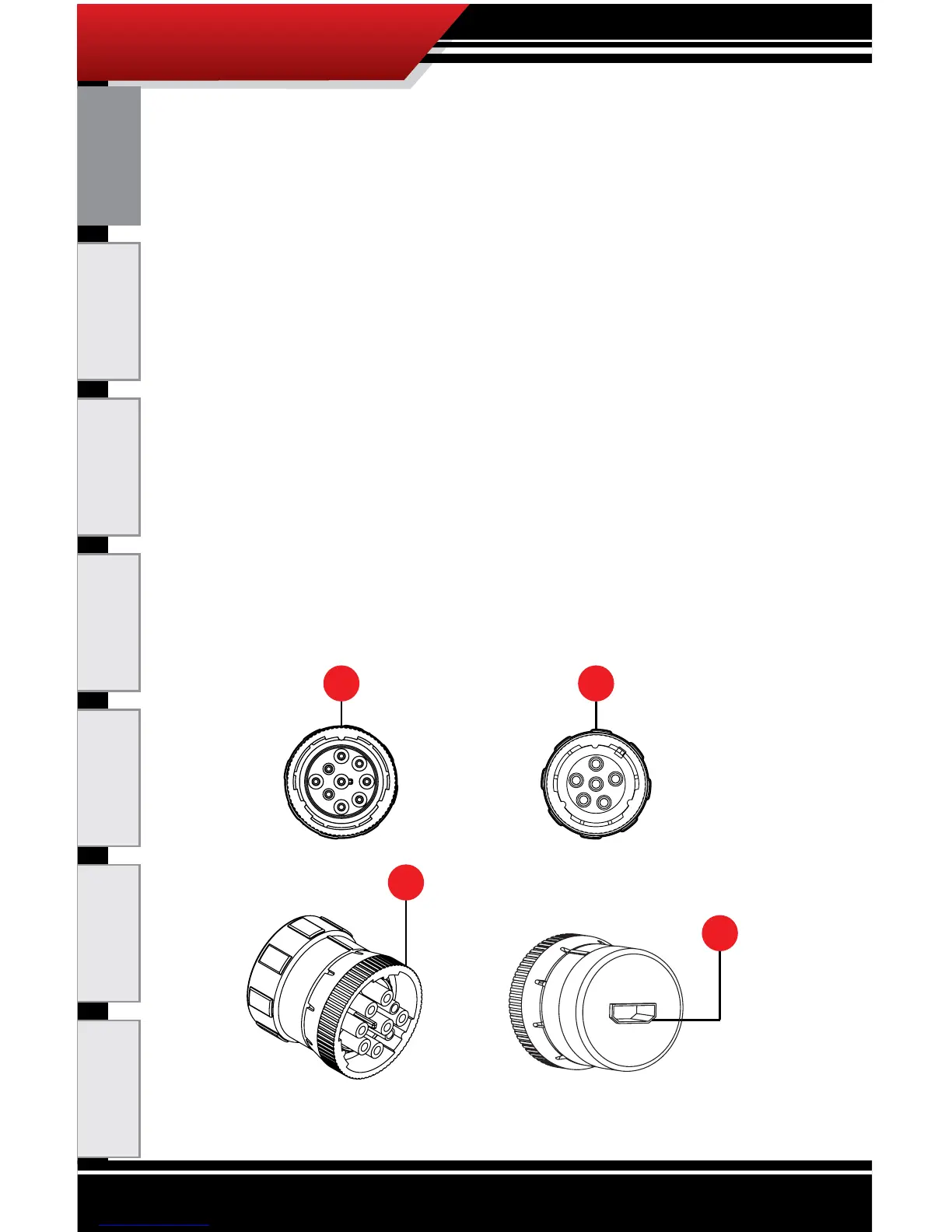

The diagram below shows the important parts of each type of

Data Plug:

1. 9-Pin Data Plug Face

2. 6-Pin Data Plug Face

3. Plug lock ring: Each vehicle data port will have a lock

ring receiver. This lock ring will secure the data plug

to the port when it is properly seated in the lock ring

receiver.

4. HDMI Port: Connects the HDMI cable (which links the

Data Plug and the Head Unit).

Bully Dog ECM Tuner - Page 6
