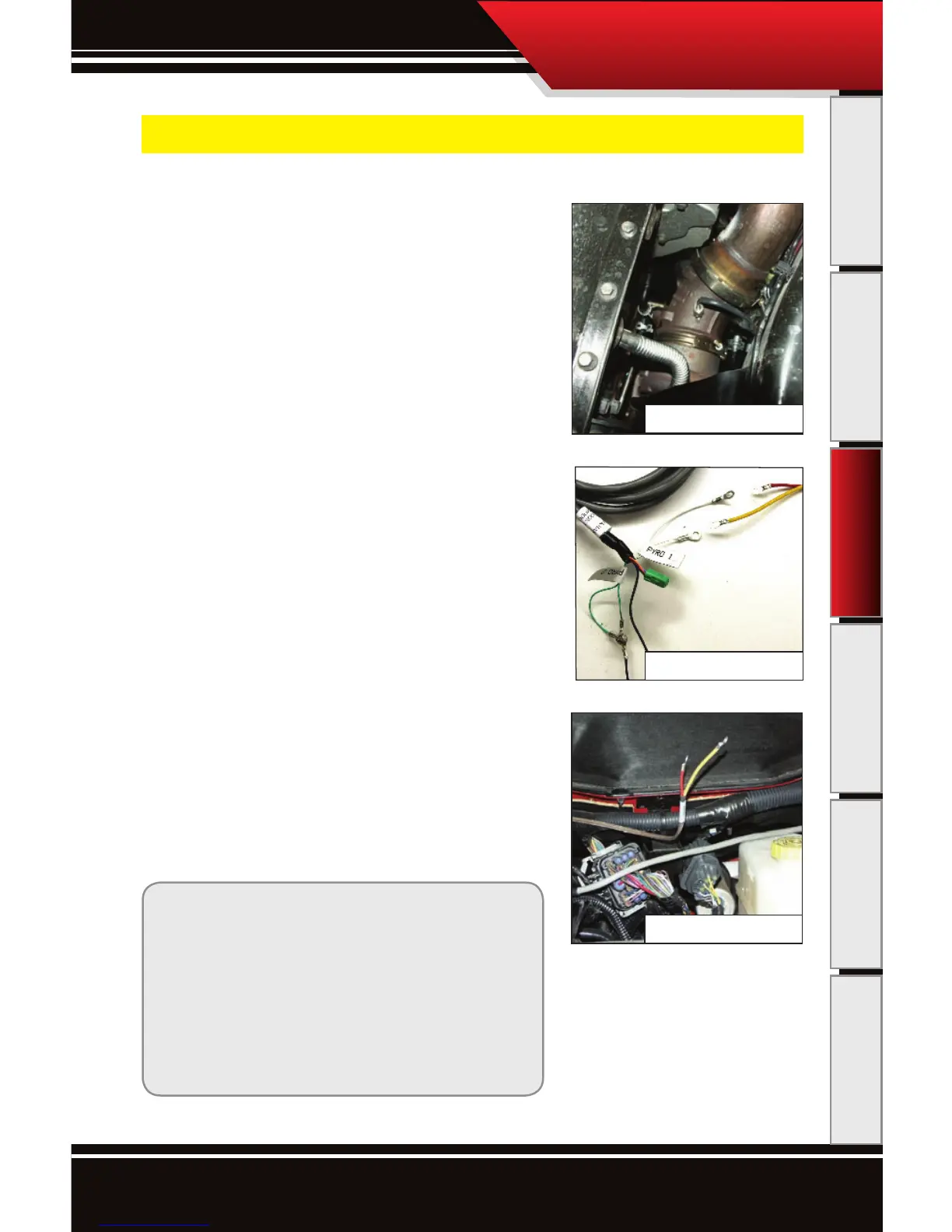

Installation Steps
INSTALLATION
POSTTURBO MOUNT:
1. Find a location on the exhaust pipe that is 3-6” downstream
from the turbo charger output. This may require removing the
down pipe in order to drill the hole. Then drill a 5/16” hole and
run a 1/8” pipe tap into the hole. Mount the Pyrometer Probe
in the threaded hole using a 9/16” wrench to tighten the probe
holder or tube tting to the down tube. Then tighten the Pyro
Probe Cap to the holder using a 5/8” wrench.
2. Run the Pyro Cable along the brim of the engine bay so the
end meets the end of the OutLook Main Harness and use zip ties
to secure the pyro line.
3. Connect the pyrometer end to the Outlook Main Harness. If you
want Post-turbo temperatures displayed in the bottom left quad-
rant on the OutLook screen, connect the Post-turbo connectors to
the Pyro 1 connectors on the OutLook Main Harness. Connect the
shorter wire from the Pyrometer to the longer wire on the OutLook
Main Harness labeled Pyro 1 using a 5/16” wrench and a Phillips
screw driver. Connect the longer wire from the Pyrometer to the
shorter wire coming off the OutLook Main Harness labeled Pyro 1.
4. If a second Pyro is not used, then connect the remaining Pyro 2
wires to the long black ground wire that is sticking out from the
Main Harness using the existing hardware. This will ensure that
there is no electrical interference between the Pyro connections.
To further protect the connections, wrap all of the Pyrometer
connections in electrical tape.
TOOL TIP POSTTURBO MOUNT
When drilling into the exhaust pipe broken drill bits can fall
inside. Since it is after the turbo and no damage will be done.
Generally you still try to have as clean a drill hole as possible.
To avoid this possible problem use a high quality twist bit and
a slow speed drill, about 500-800 rpm and start with a small
pilot bit about 1/8”.
Securing pyro line
Pyrometer Wiring
IMPORTANT: At least one Pyrometer Probe is required for OutLook installation.
Dodge Post-turbo Mount
