Bunn DUAL TF DBC W/SMART FUNNEL DUAL068000 - Test Outputs (Components); Test Switches; Test Frequency

Page 35

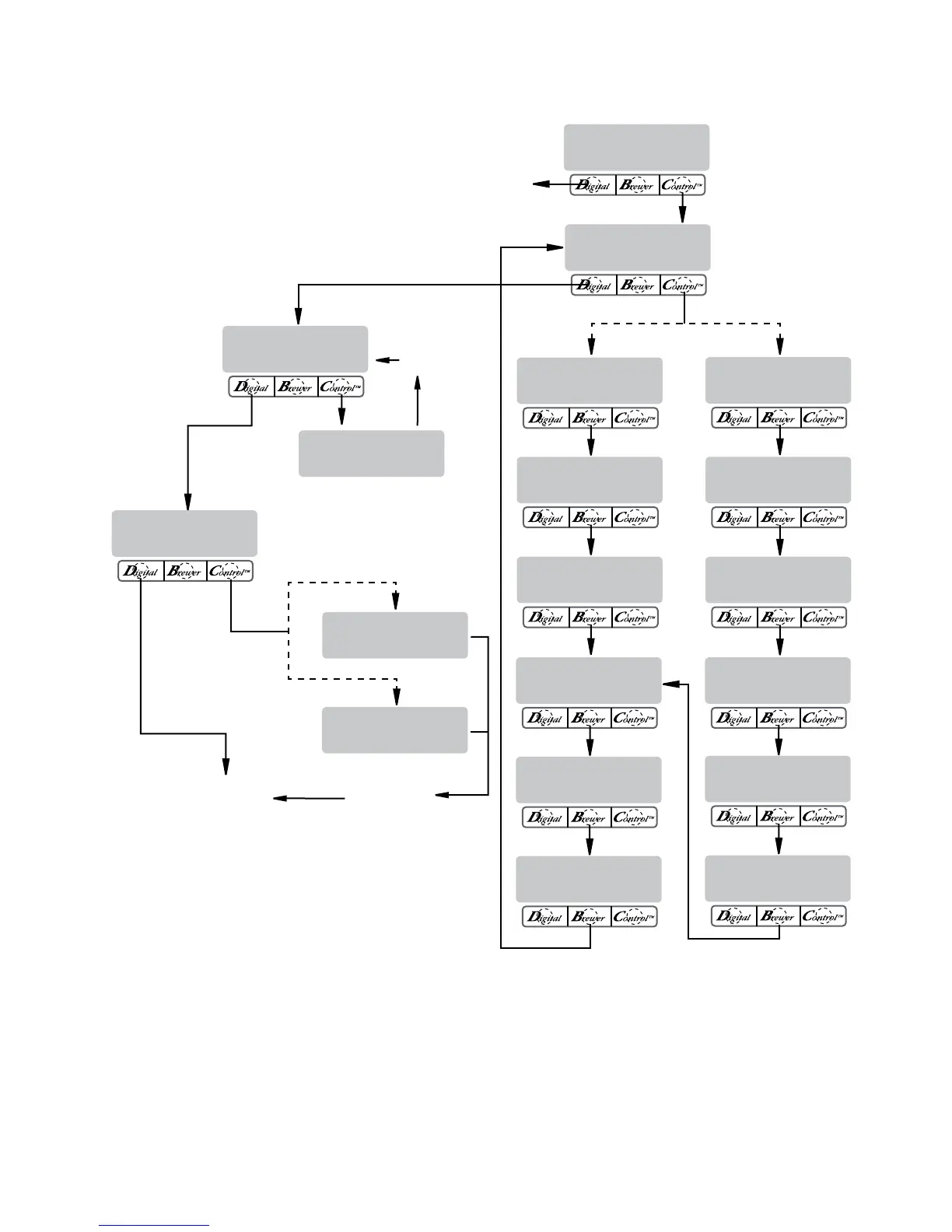

TEST OUTPUTS?
NO YES
SERVICE TOOLS?
NO YES
LEFT BREW VALVE
ON NEXT OFF
LEFT BYPASS
ON NEXT OFF
LEFT FUNNEL LOCK
ON NEXT OFF
RIGHT BREW VALVE
ON NEXT OFF
RIGHT BYPASS
ON NEXT OFF
RIGHT FUNEL LOCK
ON NEXT OFF
REFILL VALVE
ON NEXT OFF
TANK HEATRS
ON NEXT OFF
HEATER CONTACTOR
ON NEXT OFF
BREW VALVE
ON NEXT OFF
BYPASS
ON NEXT OFF
FUNNEL LOCK
ON NEXT OFF
SINGLE
BREWERS
DUAL
BREWERS
EXIT TO
NEXT FUNCTION
SCREEN
TEST SWITCHES?
NO YES
NOTHING PRESSED
PRESS AND RELEASE
® SYMBO L
TEST FREQUENCY?
NO YES
<-<-<- 125.0 KHZ. 4
4 125.0 KHZ ->->->
PRESS AND RELEASE
® SYMBOL
125.0 KHZ. 4
SINGLE
BREWERS
DUAL
BREWERS
EXIT TO
NEXT FUNCTION
SCREEN
PROGRAMMING THE BREWER (cont.)
