SERVICE (cont.)
P776
27040 032201
To Left or Right Timer
TAN
GRY
PNK
WHI/VIO to Left or Right By-Pass Valve
WHI/RED to Left or Right Dispense Valve
GRY to Left or Right Selector Switch
to GRY Lead on Interface Socket
PNK from Left Switch to Grinder
Switch (Lower Left)
PNK from Right Switch to Grinder
Switch (Lower Right)
TAN to Left or Right Selector Switch to
TAN Lead on Interface Socket

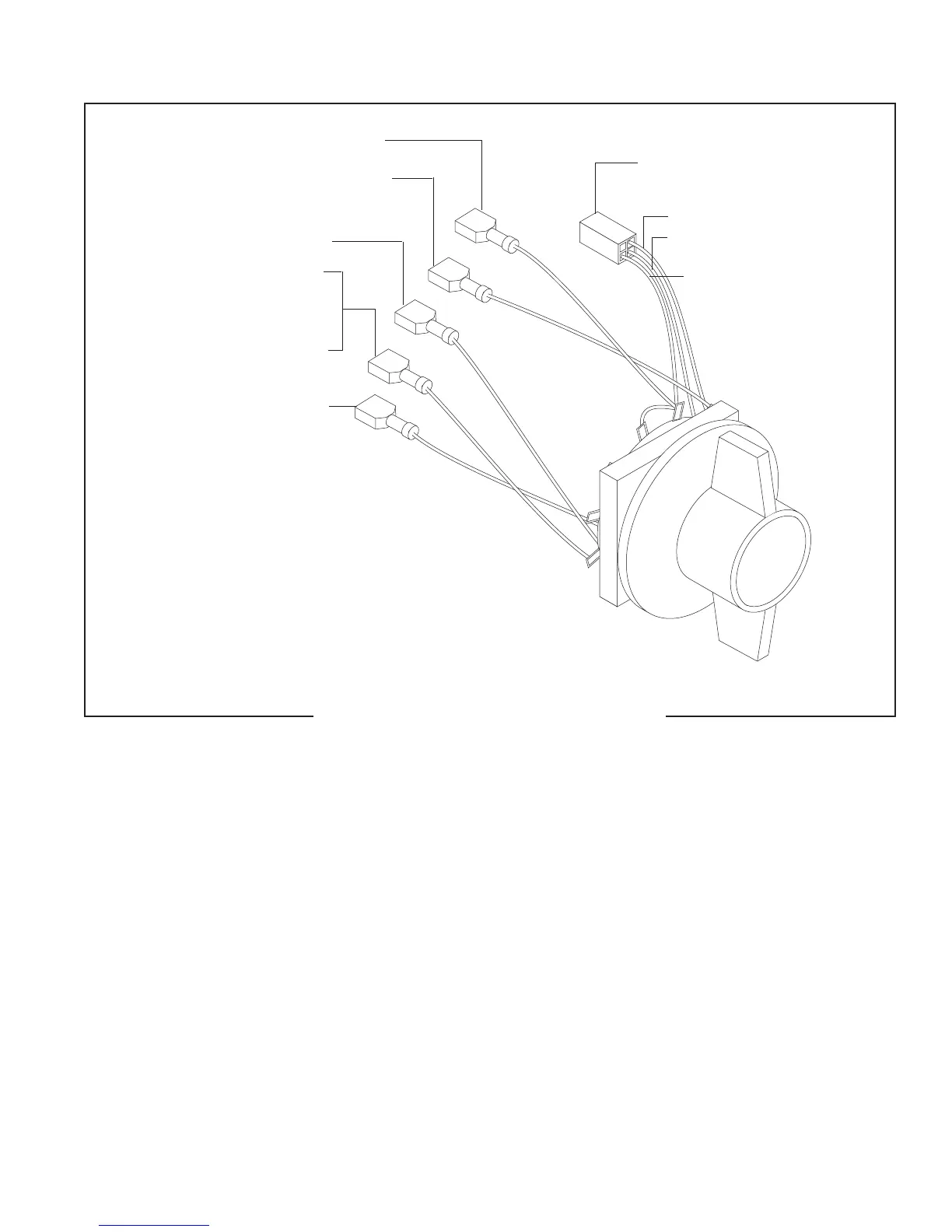

FIG. 4 BREW SELECTOR SWITCH TERMINALS
