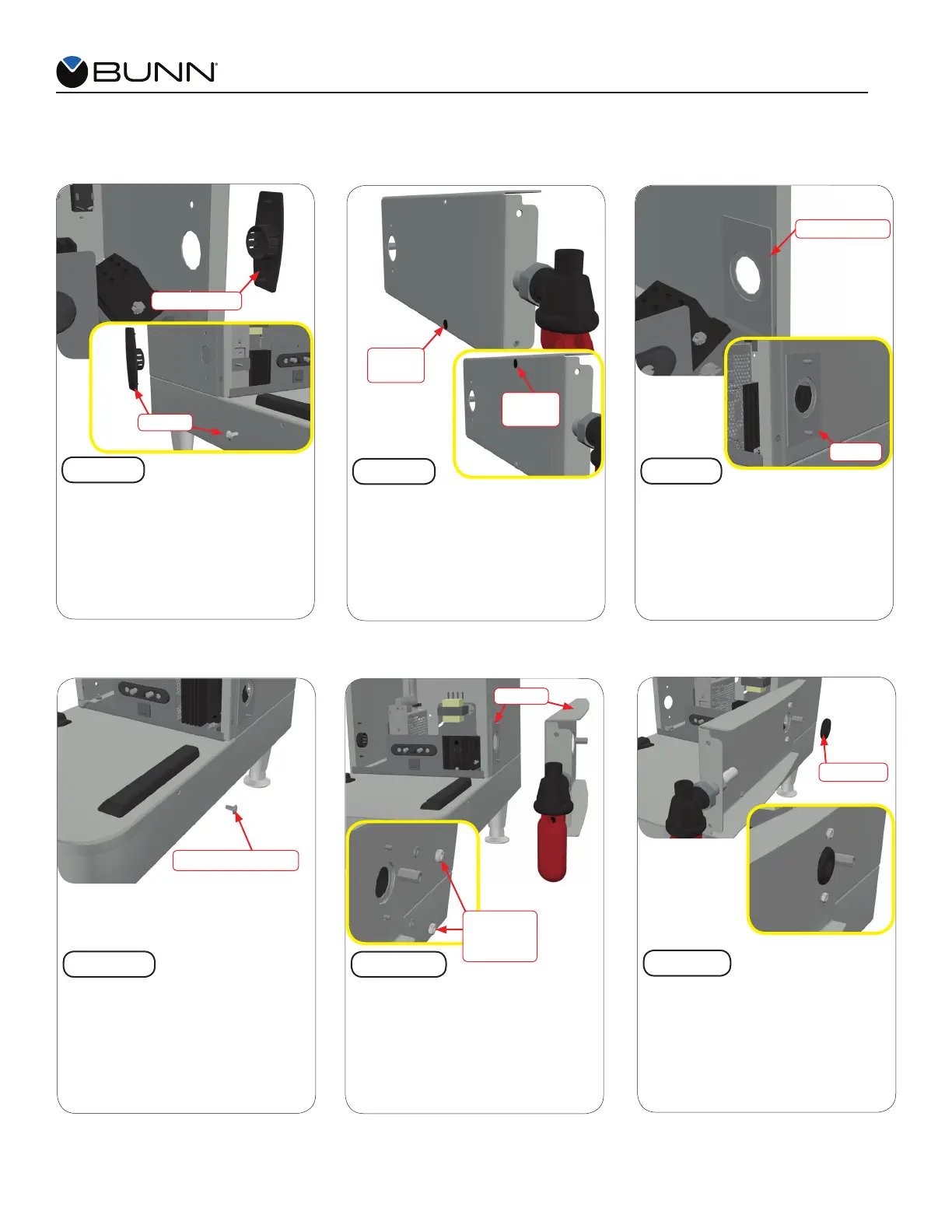

Bunn ICB SH - Side Car Preparation and Mounting; Attaching and Securing the Side Car

• Remove the plastic badge from the right
side of the brewer.
• Install the plastic badge on the left side of
the brewer to cover the panel holes.
• Install the base screw that was removed
in step 5.
STEP 7
• Remove the snap-in fastener from the
faucet side car and place into the hole
directly above as shown.
STEP 8
ICB SH Faucet Side Car Installation Instructions
• Place the plate assembly into the
uncovered holes on the inside of the right
panel.
• Place the spacer on the outside of the
right panel on the plate assembly.
STEP 9
• Remove the base screw on the right side.
STEP 10
• Align the faucet side car to the right side
of the brewer.
• Secure the faucet side car using the
washers and screws that were removed in
step 5.
STEP 11
• Insert the black grommet into the large
tubing hole. This is the same grommet
removed in step 5.
• Secure the base screw to the faucet side
car.
STEP 12
Plastic Badge
Secure
Remove
Fastener
Insert
Fastener
Plate Assembly
Spacer
Remove Base Screw
Align
Secure with
Washers &
Screws
Grommet
