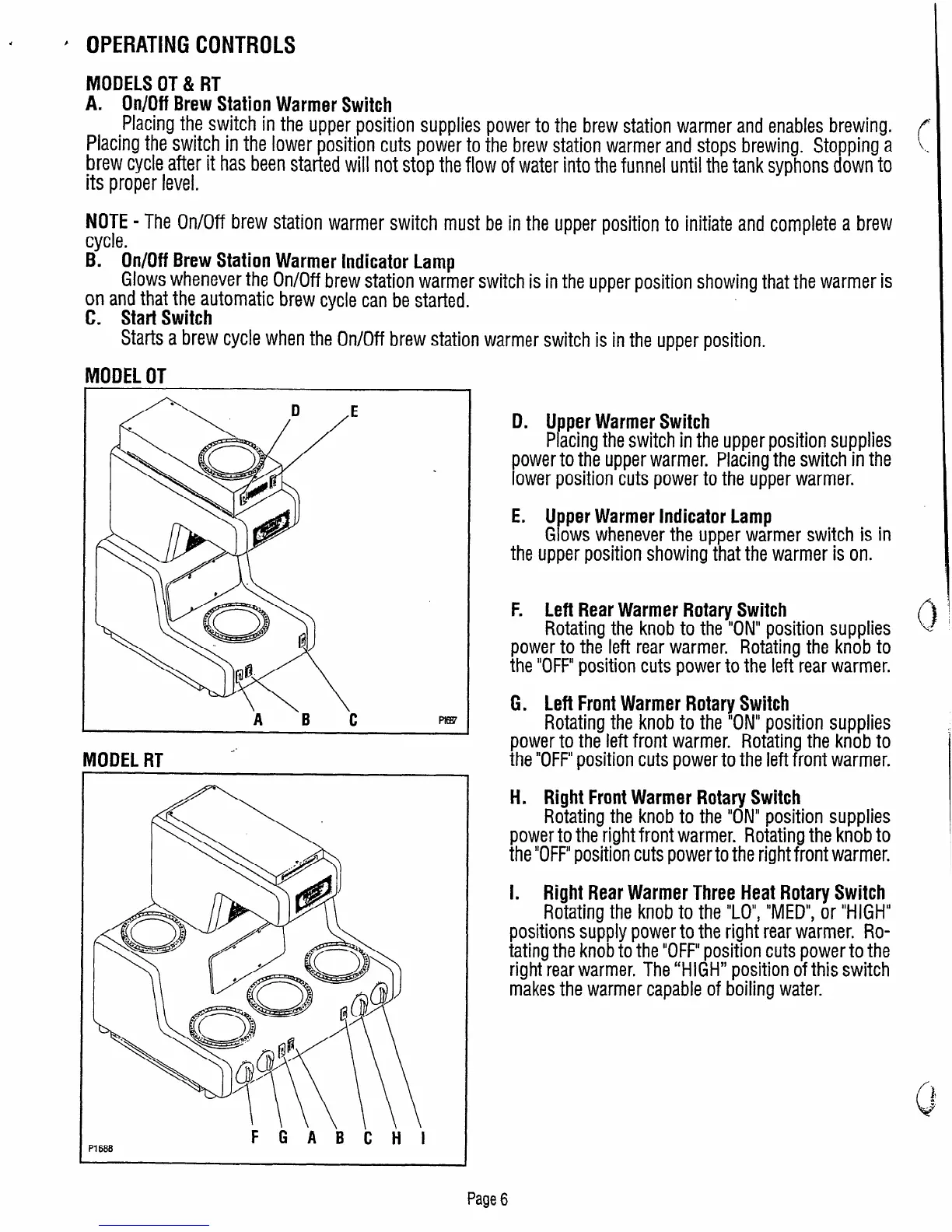

OPERATINGCONTROLS
MODELS OT & RT
A. On/Off Brew Station Warmer Switch
Placing the switch in the upper position supplies power to the brew station warmer and enables brewing.
Placing the switch in the lower position cuts power to the brew station warmer and stops brewing. Stopping a
r
1..
brew cycle after it has been started will not stop the flow of water into the funnel until the tank syphons down to
its proper level.
NOTE - The On/Off brew station warmer switch must be in the upper position to initiate and complete a brew
cycle.
B. On/Off Brew Station Warmer Indicator Lamp
Glows whenever the On/Off brew station warmer switch is in the upper position showing that the warmer is
on and that the automatic brew cycle can be started.
C. Start Switch
Starts a brew cycle when the On/Off brew station warmer switch is in the upper position.
MODEL OT
A B C
Pl837
MODEL RT ..’
I
c
FGABCHI
P1688
Page 6
D. Upper Warmer Switch
Placing the switch in the upper position supplies
power to the upper warmer. Placing the switch in the
lower position cuts power to the upper warmer.
E. Upper Warmer Indicator Lamp
Glows whenever the upper warmer switch is in
the upper position showing that the warmer is on.
F. Left Rear Warmer Rotary Switch
‘7
Rotating the knob to the-“ON” position supplies
c
)
L
power to the left rear warmer. Rotating the knob to
the “OFF” position cuts power to the left rear warmer.
G. Left Front Warmer Rotary Switch
Rotating the knob to the “ON” position supplies
power to the left front warmer. Rotatina the knob to
the “OFF” position cuts power to the left front warmer.
H. Right Front Warmer Rotary Switch
Rotating the knob to the “ON” position supplies
power to the right front warmer. Rotating the knob to
the “OFF” position cuts power to the right front warmer.
I. Right Rear Warmer Three Heat Rotary Switch
Rotating the knob to the “LO”, “MED”, or “HIGH”
positions supply power to the right rear warmer. Ro-
tating the knob to the “OFF” position cuts power to the
right rear warmer. The “HIGH” position of this switch
makes the warmer capable of boiling water.
