9
OPERATING CONTROLS

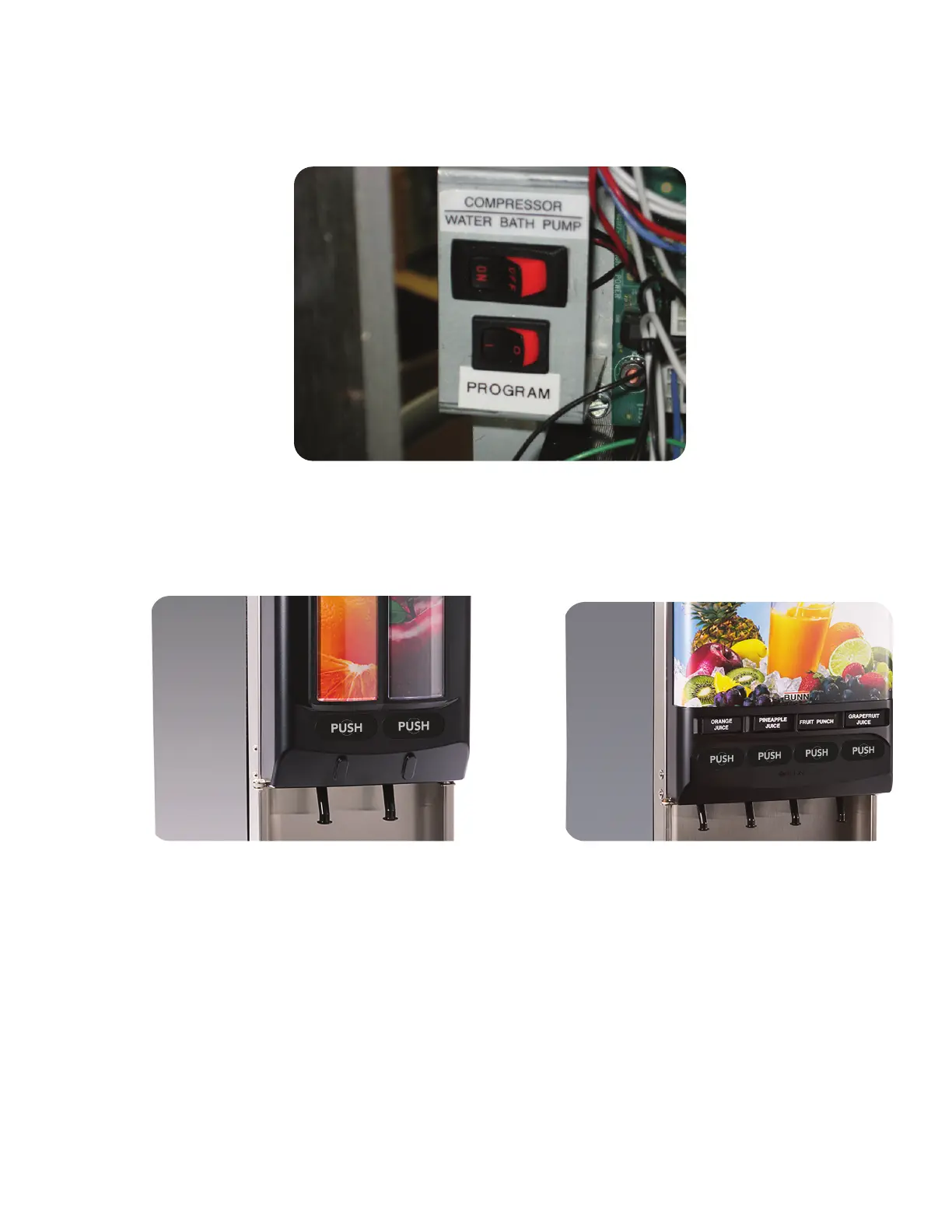

FIG 7 Refrigeration Switch
The refrigeration switch is located on the Electrical Panel of the dispenser near the Circuit Board. This switch
controls power to the water bath pump and relay contacts for the compressor and condenser fan motor.
Pressing and
holding dispense switch (labeled PUSH) will initiate product flow from the respective nozzle;
releasing the switch will stop the flow.
44744.2 110813
FIG 9 Product Dispense Switches - JDF-2S FIG 10 Product Dispense Switches - JDF-4S
