DIGITAL DISPLAY
The Digital Sight Gauge (DSG) senses liquid levels and monitors hold times.
Horizontal bars indicate the liquid level. The 1.0 gallon sensor displays a total of 4 bars and the 1.5 gallon sensor
displays 6 bars. Each bar represents approximately 32 ounces of liquid. All bars will be displayed when the
server is full. As liquid is dispensed the number of bars displayed decreases beginning with the upper most bar.
When the server is close to empty no bars are displayed.

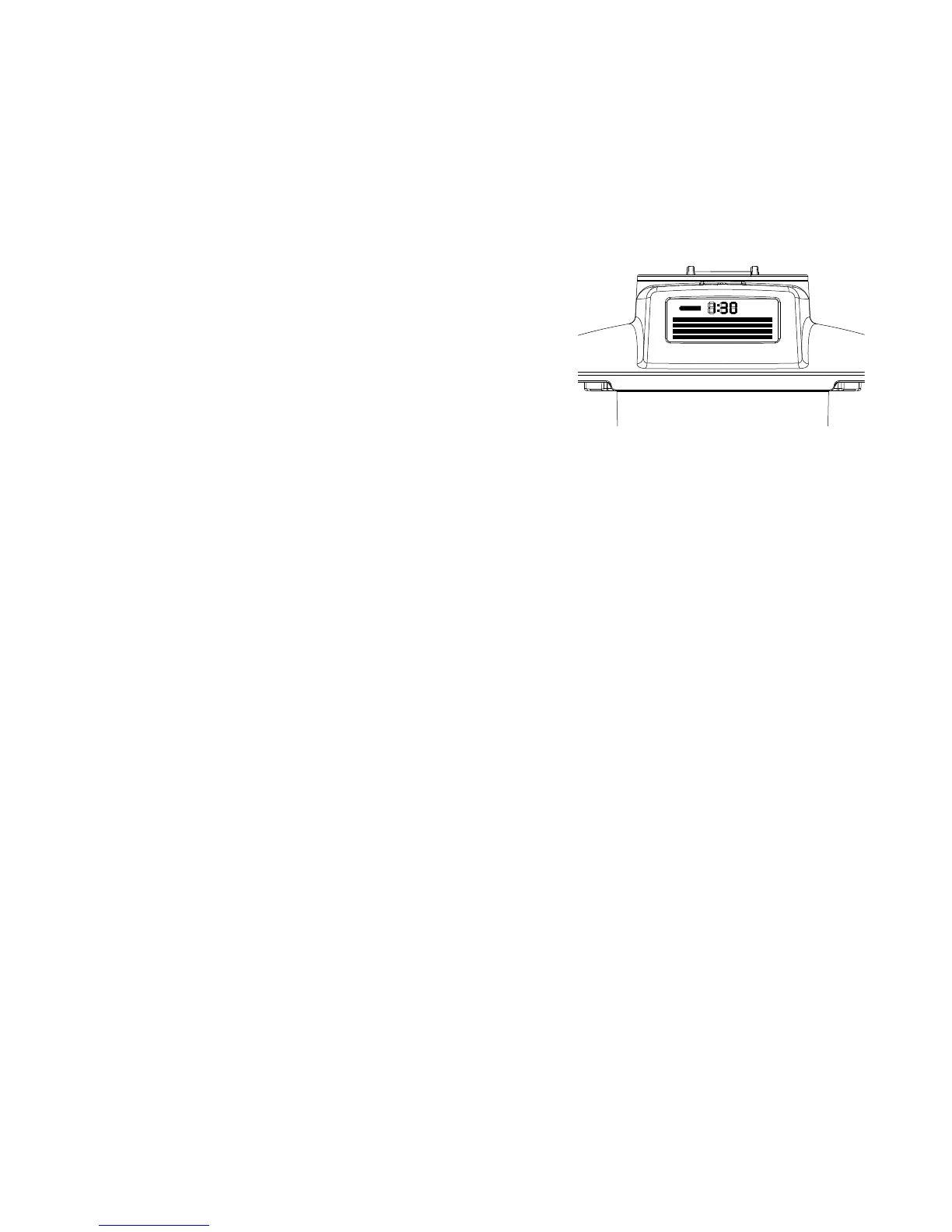

FIG. 1
54923 041118
Freshness Time Yes 0:30, 1:00, 1:30, 2:00, 2:30, 3:00, 3:30, 4:00 Ftd…2:00…
Duration
Flashing Notification Yes Off, 0:30, 1:00, 1:30, 2:00, 2:30, 3:00, 3:30, 4:00 Fnt…oFF…
Time Fnt…0:30..
Freshness Timer Yes Off –Timer is disabled dir…oFF…
Direction Up – Timer counts from 0:00 to FTD dir…up…
Down – Timer counts down from FTD to 0:00 dir…dn…
Status LED Yes Off – Status LED is Disabled LEd…oFF…
Freshness Time Expired LEd…Ft…
Flashing Notification LEd…Fn…
Server Empty LEd…E…
Freshness Time Expired & Server Empty LEd…FtE…
Flashing Notification & Server Empty LEd…FnE…
Configuration
Parameter
Rotary
Switch
Access
DisplayValues (Default setting is bold)
Hold times are displayed by a freshness timer. As liquid level increases,
the DSG Display will show 1 Bar, and the freshness timer will show
the initial value (4:00 for default count down timer). As the liquid level
continues to increase, typical during a brew, the timer may reset on
every bar increase, depending on the length of time it takes to increment
to the next bar. When the liquid level has stabilized, the timer will start
counting down in 1 minute increments until the server is empty or the
time has expired. Whenever the liquid level is decreased to zero bars
the timer is replaced with three dashes.
Warning of freshness time expiration is indicated by the timer flashing as it continues to count (flashing from
2:00 until 0:00 is the default setting).
A status LED will flash to indicate the liquid level is near empty (zero bars), the freshness time warning has been
reached or the freshness time has expired.
