Burkert 8030 - Dimensional Data

16

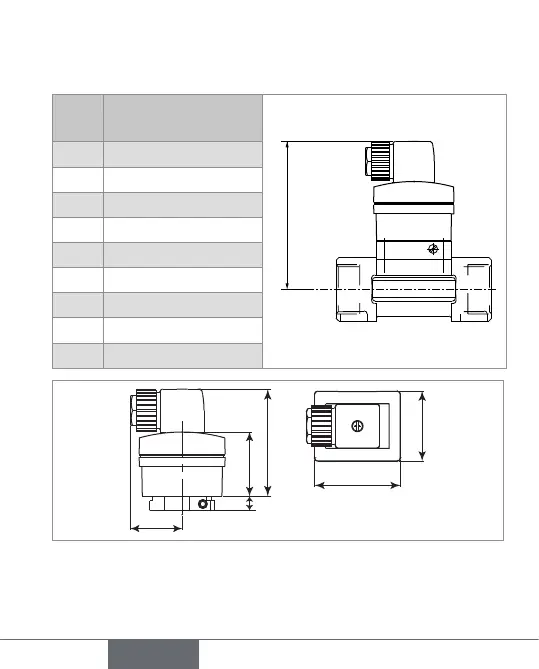

Table 1: Dimension H [mm] of the 8030 depending on
the DN of fitting S030
DN
H with fitting
S030
H
06 95,5
08 95,5
15 100,5
20 98
25 98
32 102
40 105,5
50 112
65 112
32
40
66
44
54
9
Fig. 1: Dimensions [mm] of the SE30 electronic
module
