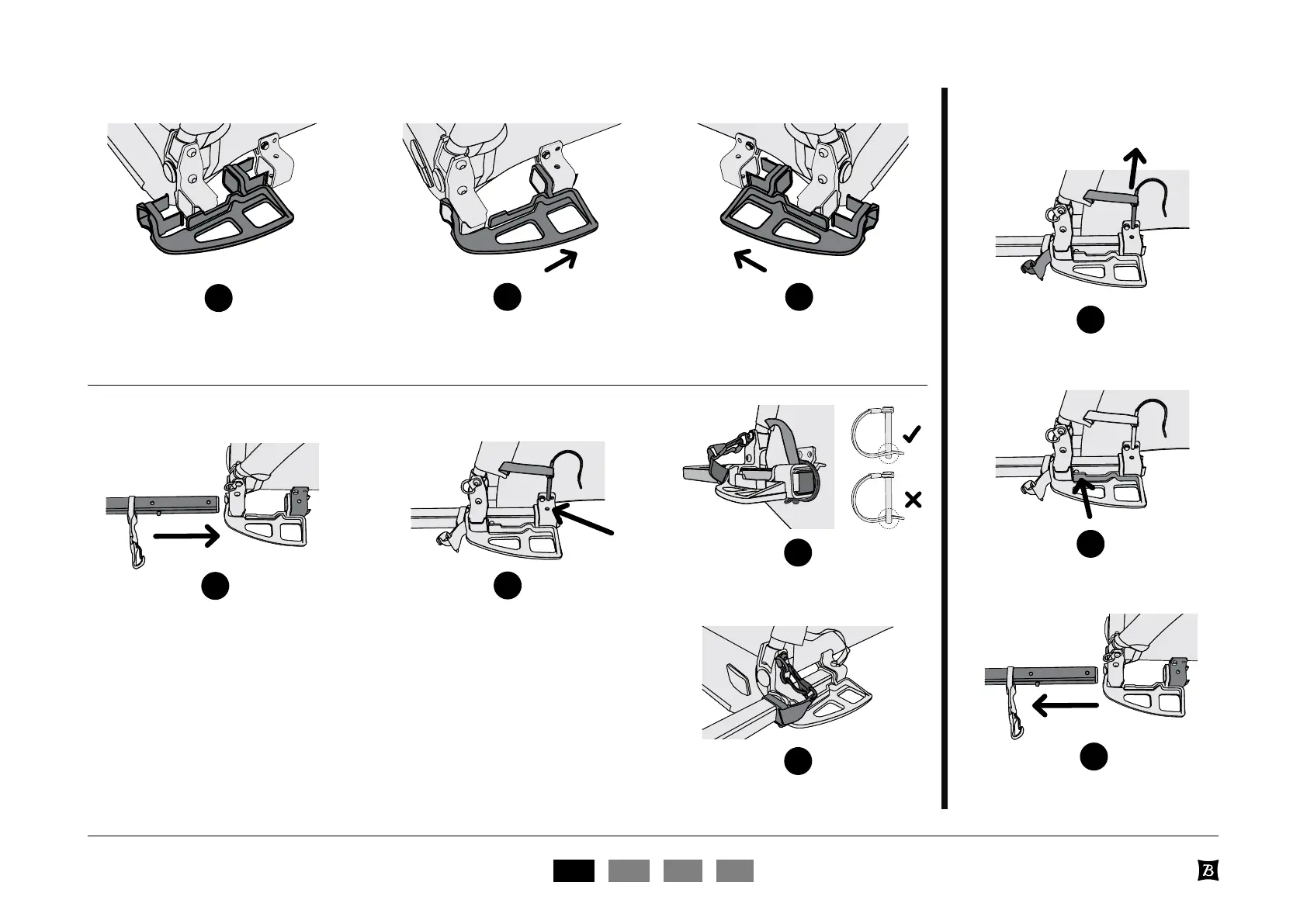

Align the wheel guards with
the tow bar reciever.
Slide the tow bar into the tow bar
receivers until the first hole is aligned
with the hole in the rear receiver.
The red safety collar should be
flush with the front of the tow bar
receiver, which indicates that the
tow bar has been fully inserted.
Slide the wheel guard into the tow bar
receiver until it snaps into place. Lightly
bend front tabs inward when inserting.
Insert the retaining pin from the
top through the aligned holes
Make sure the retaining pin has
locked properly as shown.
Repeat on the opposite side.
Clip the safety strap to the
D-ring on the trailer frame.
1
1
3
2
2
3
3
4
Installing the Wheel Guards
Installing the Tow Bar
1
2
Remove the retaining pin, and
unclip the safety strap
Press the tab on the wheel guard
to depress the detent.
Remove the tow bar.
Removing the
Tow Bar
