Burnham 8H Series - Page 5

5

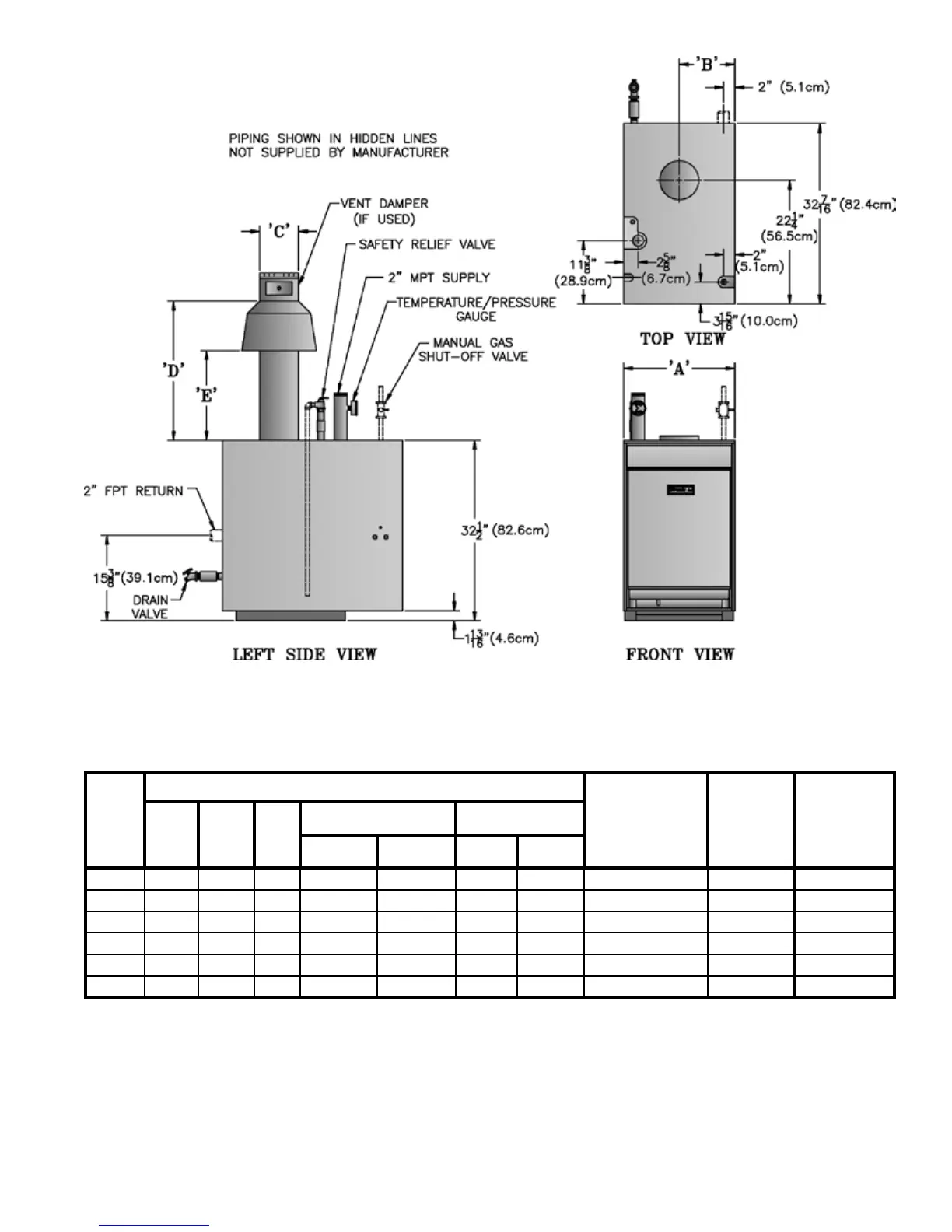

Figure 1: Dimensional Data
Boiler
Model
Dimensions (Inches)
Recommended
Chimney Size
(Round)
Water
Content
(Gallons)
Approx.
Shipping
Weight (LB.)
A B C
D E
USA Canada USA Canada
805H 20 10 7 24-13/16 24-13/16 16-1/8 16-1/8 7” dia. x 15 ft. 11.9 705
806H 23-3/4 11-7/8 8 27-13/16 25-3/4 18 16 8” dia. x 15 ft. 13.9 785
807H 27-1/2 13-3/4 9 28-13/16 25-3/4 18 16 8” dia. x 15 ft. 15.9 890
808H 31-1/4 15-5/8 9 30-13/16 26-11/16 20 16 8” dia. x 15 ft. 17.9 1000
809H 35 17-1/2 10 33-1/2 26-7/16 22 15 10” dia. x 15 ft. 19.9 1100
810H 38-3/4 19-3/8 10 33-1/2 26-7/16 22 15 10” dia. x 15 ft. 21.9 1220
Table 1: Dimensional Data
