Connection, installation / mounting
Product manual 2CKA001473B8289
For mounting, perform the following steps:
1. Connect the device according to the circuit diagram (Page 15).
2. Fix the device in the flush-mounted box according to its design.
3. Seat the cover plate [1] on the insert.
4. Attach the adjusting knob [3]:
– Before attaching the adjusting
knob, turn the two arrows toward
each other (basic setting).
– Attach the adjusting knob
vertically, so that the position lug
[4] engages in the recess of the
drive plate [2].

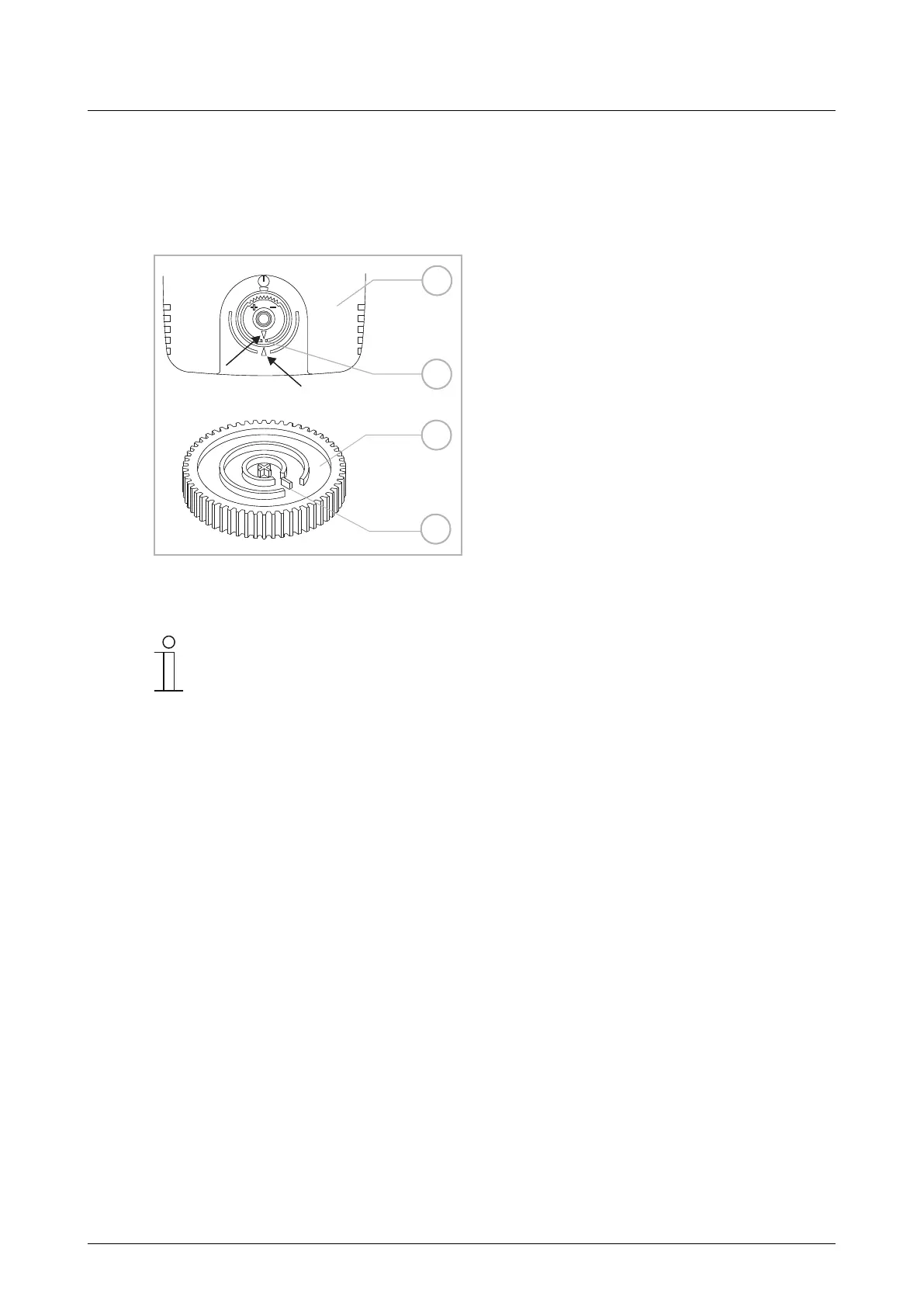

Fig. 2: Attaching the adjusting knob
Notice
In connection with hot-water heating, servo valves of "closed when de-
energized" design are required for the controller.
