6.3 Electrical connection
N
N
L
L
1
N
N
L
L
1
2
2
1
2
1
1
N
N
L
L
1
16A
16A
16A
230 V230 V230 V 24 V
1094...
1095...
1095 UF 1097... 1096

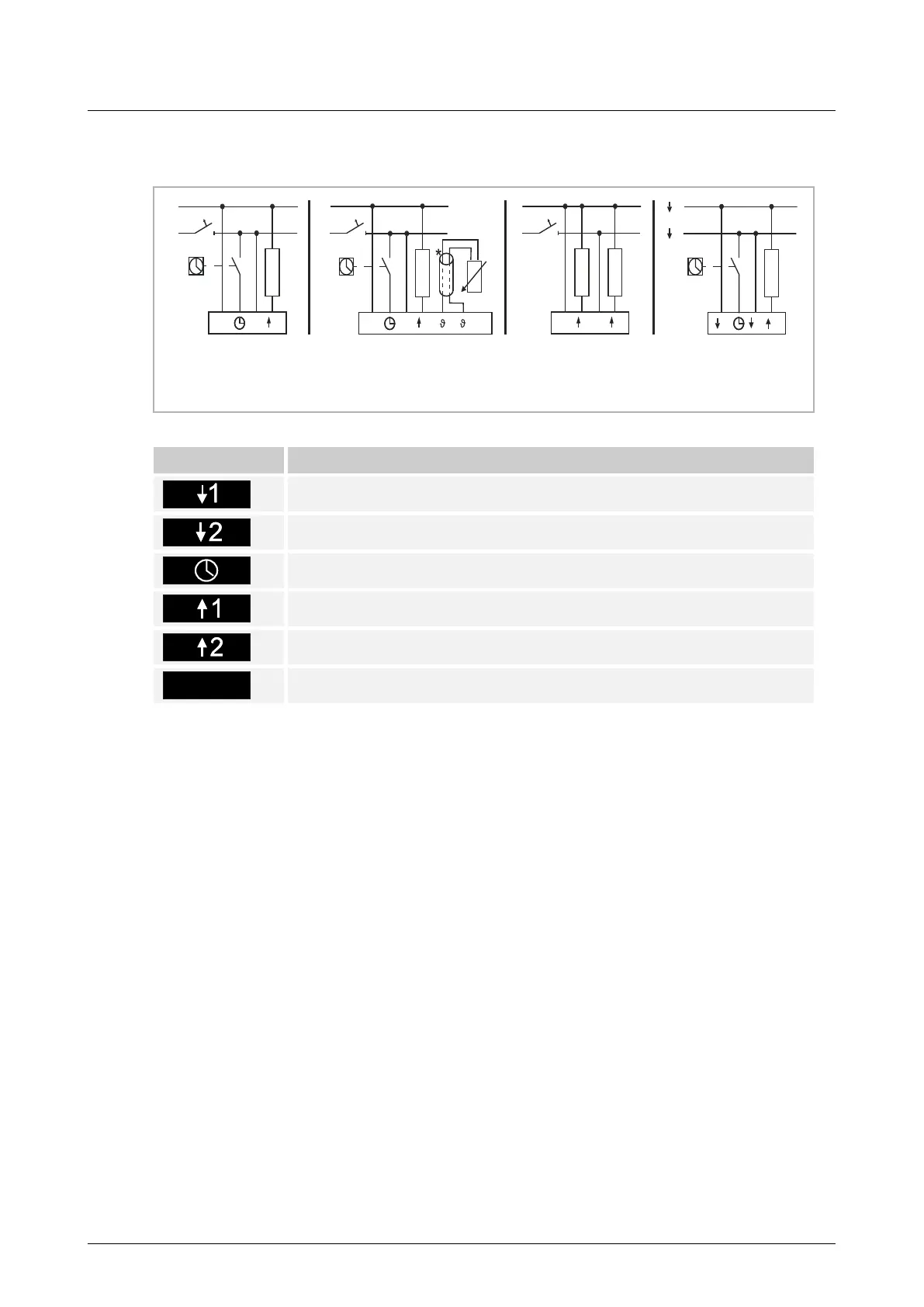

Fig. 3: Circuit diagrams
Icon Assignment
Connections 24 V AC
Connections 24 V AC
Input for activating the temperature reduction (see night-time reduction)
Output for controlling the heating load
Output for controlling the cooling load
* *
The sensor cable must be installed in a protective cable duct.
