Busch-Jaeger 1094 U - Operation

Operation
Product manual 2CKA001473B8289
│17
8 Operation

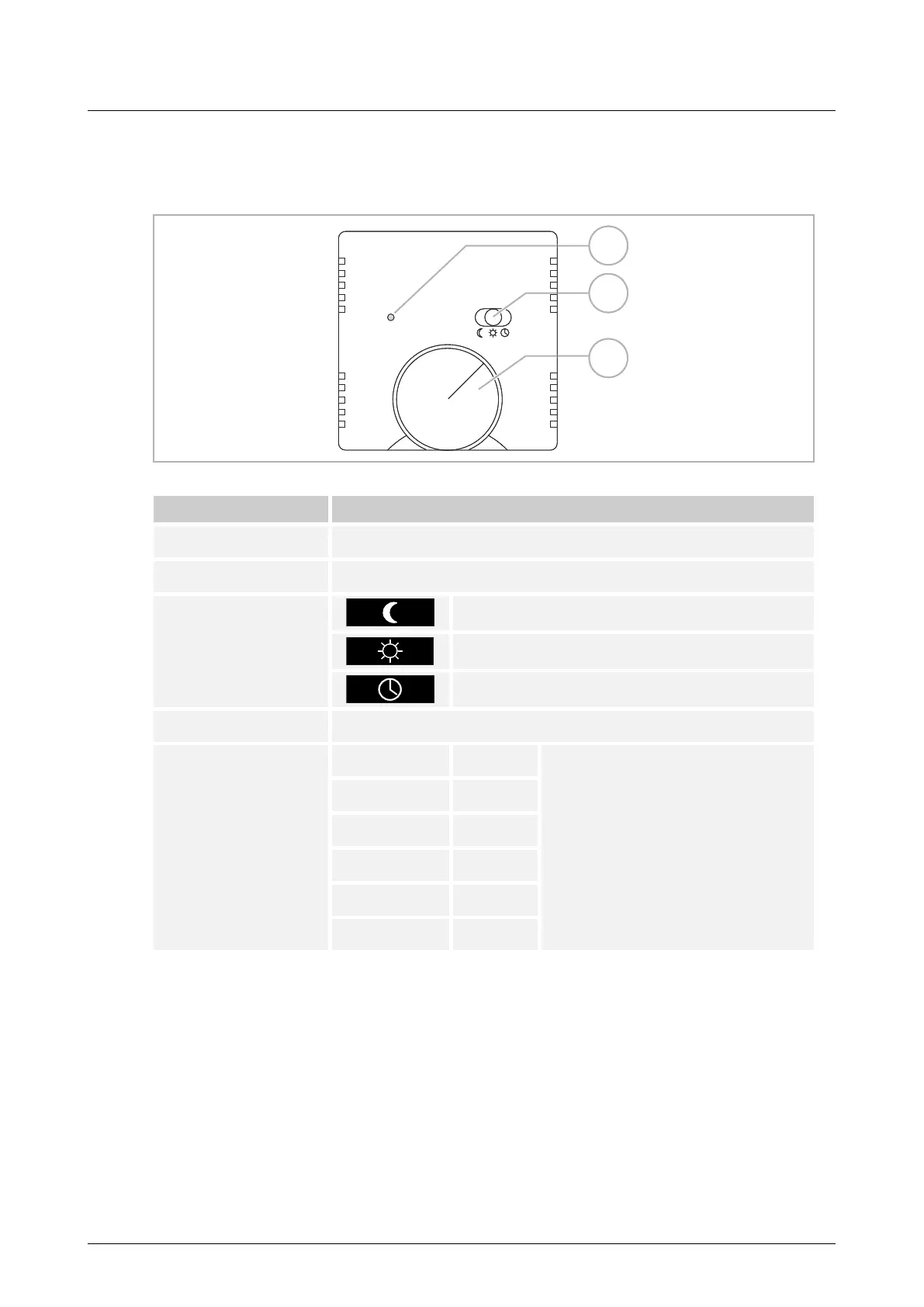

Fig. 5: Cover 1795-...
Mark / Icon Designation / Function
1 LED temperature reduction is active
2 Slide switch
Switch position for continuous temperature reduction
Switch position for selected temperature
Switch position for external temperature reduction
3 Adjusting knob for selecting the desired room temperature
1 = 5°C
The temperature is continuously variable
with the adjusting knob [3]. The
difference in temperature between two
digits is approximately 5°C. For
temperature adjustment and values, see
opposite
2 = 10°C
3 = 15°C
4 = 20°C
5 = 25°C
6 = 30°C
