Connection, installation / mounting
Product manual 2CKA001473B8289
6.2 Mounting/dismantling
Danger - Electric voltage!
Risk of death and fire due to electric voltage of 100 to 240 V.
– Work on the 100 - 240 V supply system may only be performed by
authorised and qualified electricians.
– Disconnect the mains voltage prior to mounting and dismantling.
Caution! The device can sustain damage when coming into contact with
hard objects!
The plastic parts of the device are sensitive.
– Pull the attachment off only with your hands.
– Do not lever parts off with screwdrivers or similar hard objects.
In Germany the flush-mounted insert must only be installed in flush-mounted boxes according to
DIN 49073-1, Part 1, or suitable surface-mounted housings.
Different installation standards apply in other countries. These are to be taken into account
when used in connection with a different support ring and flush-mounted box.
The temperature controller is suitable for use in dry rooms only.
ca. 30 cm
ca. 150 cm
A B C D

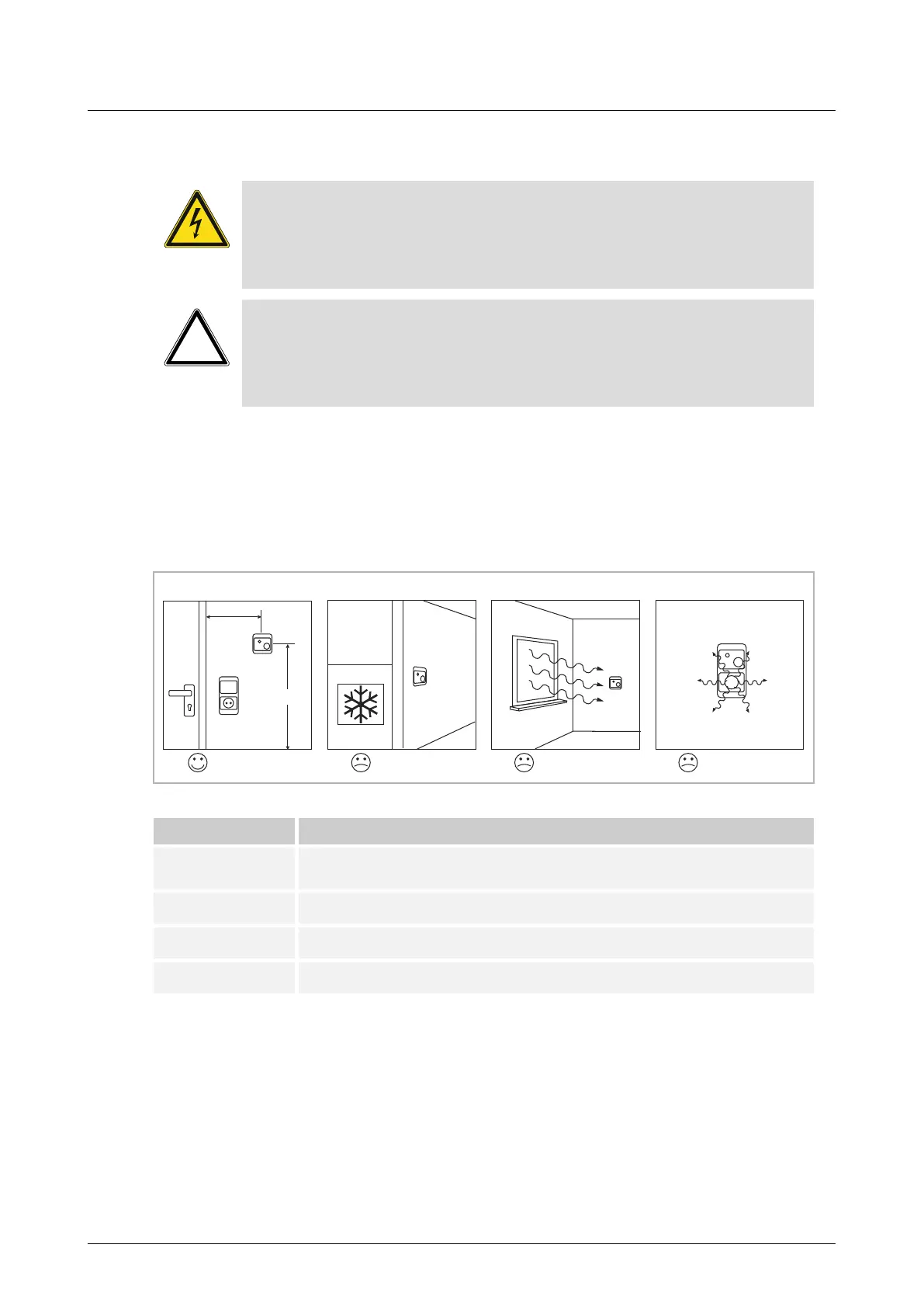

Fig. 1: Installation site
Position Description
A
Mounting height: approx. 150 cm
Minimum distance to doors or windows: approx. 30 cm
B Avoid mounting on cold walls (thermal bridges)
C Avoid draught and heat radiation, such as direct sunlight
D Avoid heat radiation from adjacent devices (dimmers)
