Bush B-3363A - Wall Mounting Guide

17
Other information
Wall mounting
Safety
Tools
required
Before drilling into wall surface, check for hidden cables or pipes.
Wear safety goggles and dust mask when drilling.
The use of a residual current device (RCD) is recommended when working with power tools.
Drill fitted with masonry drill bit
Screwdriver
Pencil
Ruler
Spirit level
Choose a suitable location for the soundbar away from areas where it will get wet or knocked. Check that the
audio cables will reach the connected device / TV, the supply cable will reach the electrical socket and that it
will not become a trip hazard.

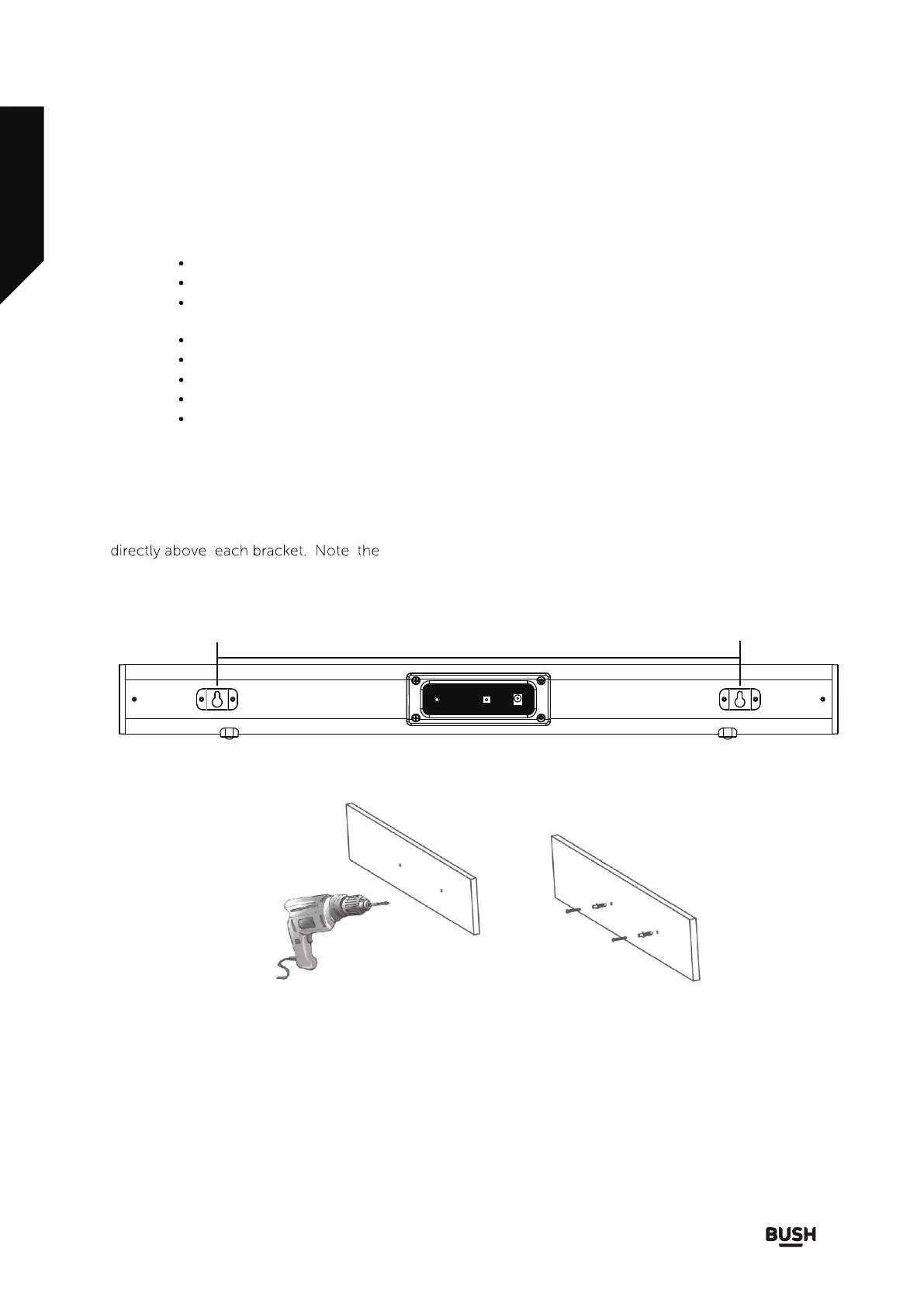

Make a light pencil mark on the wall at the top edge of both fixing brackets. The mark shou
ld be positioned
Place the soundbar away from the work area and then mark two fixing points 5mm below the light pencil .
marks for the screws. These marks should be 450mm apart and level. Before drilling, use a spirit level to
check that the fixing points marked are level
If fixing to a solid masonry wall, use a masonry drill bit, drill holes to a depth of approximately 39mm and insert
the rawl plugs.
Insert the screws into the rawl plugs and drive home the screws until the heads stand proud of
the wall by about 1mm.
If fixing to timber, follow the directions above, but only drill a small pilot hole for each screw and do not use
the rawl plugs provided.
If fixing to hollow plaster board walls, use a drill bit suitable for wood and replace the rawl plugs with wall
anchors appropriate for t
he application. Locate the fixing points into wall studs and cross braces where
possible.
Locate the soundbar onto the screw heads and check that the screws are fully engaged into the keyhole
mount before releasing your hold.
1.
2.
3.
4.
5.
6.
7.
8.
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions
450mm
Place the soundbar in the desired position and using a spirit level check that the soundbar is le vel.
centres of the mounting brackets are 85mm from each end. Pitch
between them 450mm . You can use the soundbar as a template to get the right mounting position.
