18
through holes on rack and secure with nuts. Install clamp assembly in the same order- as
above for back end of rack. Level rack and tighten nuts evenly in an alternating pattern,

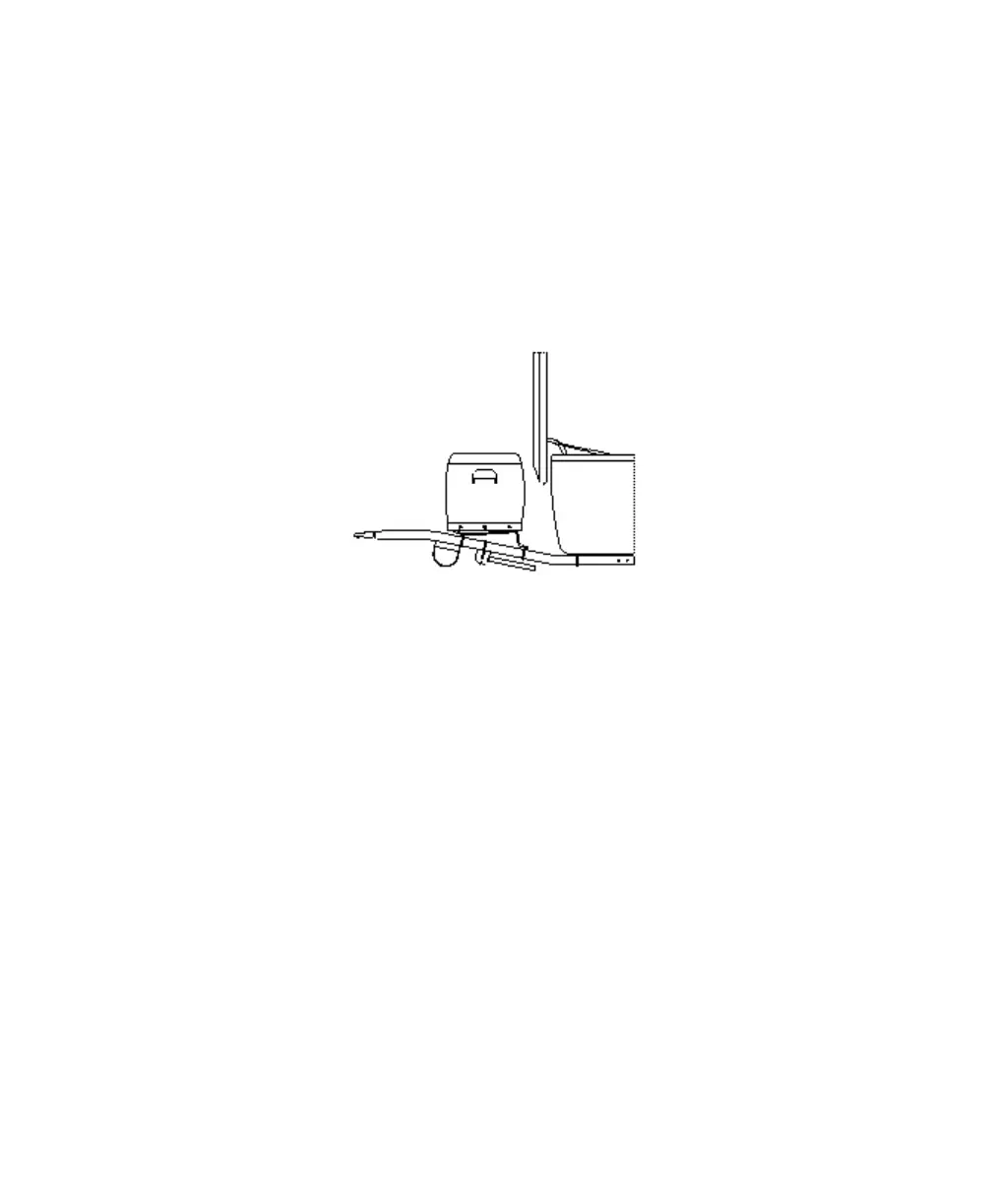

until snug. Check that rack is secure. After installing the rack, place the cooler and cover
on the rack and snap the cover down around the rack. On pre-1998 Turbo and Ultimate
trailers, install cooler rack so that with the cooler in place and the trailer lid open, there is
approximately a ½ to 1-inch gap between the cooler and lid. Carefully open the trailer lid
to insure that the trailer lid or luggage rack does not rub on the cooler cover. If the cooler
is too close, loosen the cooler rack hardware and move it away from the front of the
trailer body until proper clearance is achieved.
CAUTION: The cooler and the lid cannot be opened at the same time on some Turbo
trailers.
CAUTION: When backing the motorcycle with the trailer attached, it is possible to
“jackknife” and cause the cooler to make contact with the rear end of the motorcycle.
Have someone watch the back of the motorcycle during these operations.
Cooler Operation: To open the cooler, lift the top skirt over the zipper. Grab the zipper
by the tassel and pull all the way around front and to the opposite side rear. Fold back
cover and open cooler lid by lifting on lid recess at front. To close, close cooler lid and
fold cooler cover over top to cooler. Grab tassel by zipper and pull all the way around
the front and to the opposite side rear. Fold down skirt on top of cooler cover.
CAUTION: Failure to close cooler cover can result in damage to finish by cover.
Drain Operation
To Remove: Lift the brass handle until it is straight up, and lift plug out.
