1-Series Instruction Booklet
When assembling battery pack (M), make sure to aim for the battery terminal
connection for proper electricity conductivity.
10

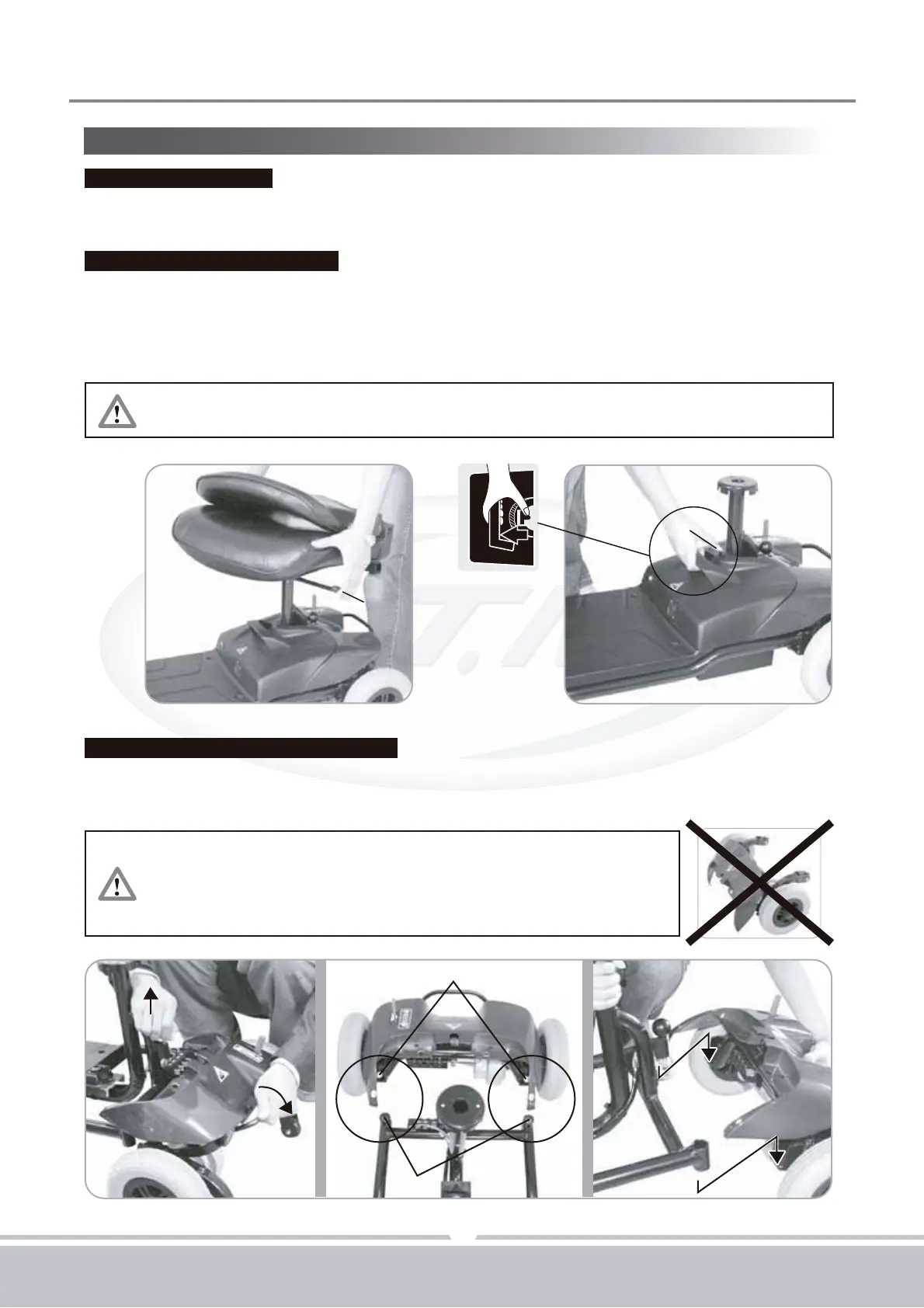

DISASSEMBLING YOUR SCOOTER
I. Seat Disassembling :
Remove seat by pulling up Seat Rotation Lever (H). Then lift up away from scooter.
II. Battery Pack Disassembling :
As indication, Push Release Lever (L) backward and pull Battery Pack Handle (M) to
r
emove batteries from scooter. Caution: batteries are heavy. When lifting please use
correct lifting posture to avoid injury. Ask for assistance if necessary.
Figure 14
(L)
(M)
Figure 13
(H)
(I)
To prevent shroud damage, do not lean disassembled rear
frame forward.
When assembling front & rear frame, align left and right
sides' stickers and push in to complete the assembly.
III. Front & Rear Frame Disassembling :
Lift up front & rear frame's fixation pin (N); and hold and pull rear frame as arrow indicates
d
irection to disassembling front and rear frame.
Figure 15
(N)
(O)
(O1)
(M)
To Next Page
