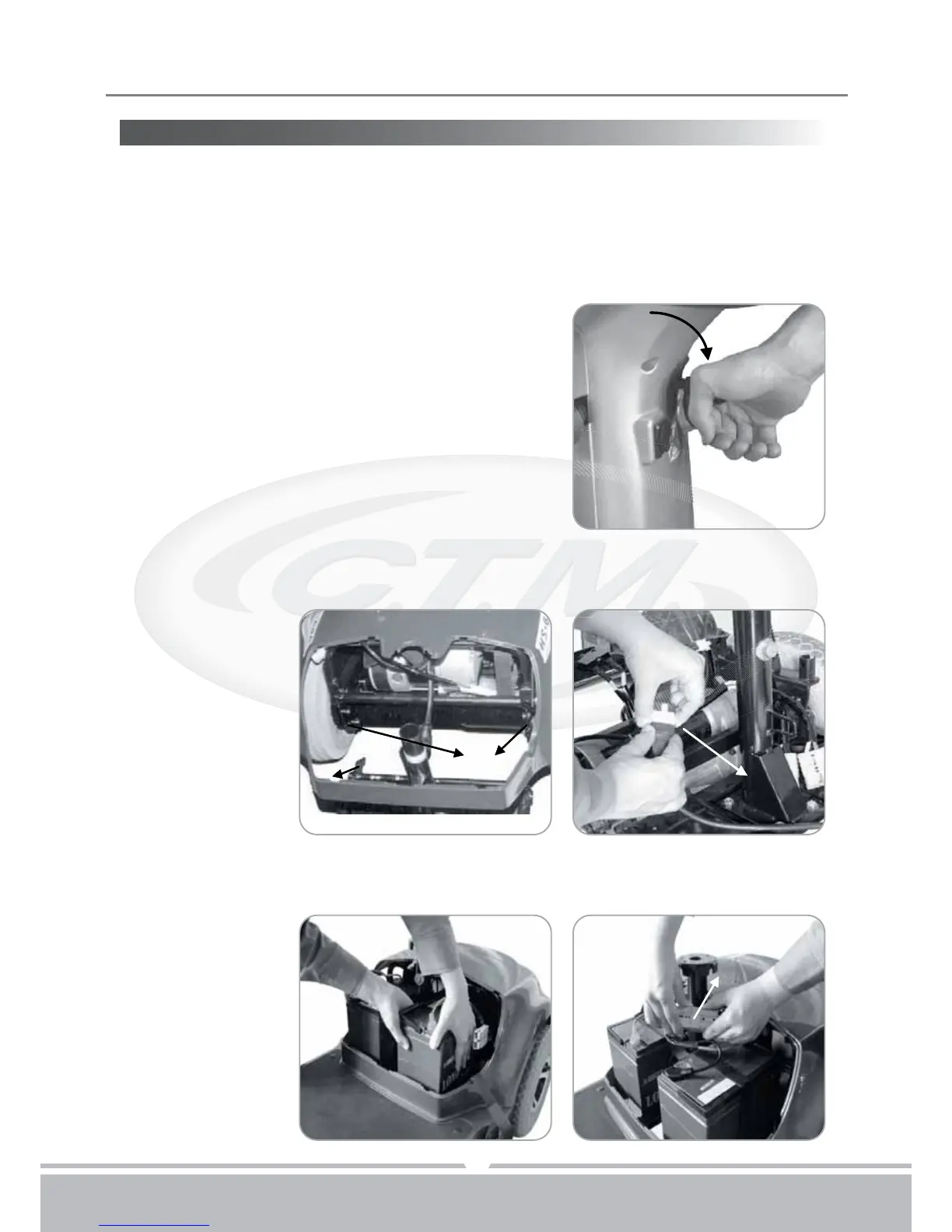

ASSEMBLING YOUR SCOOTER
No tools are necessary. A screwdriver is needed to adjust seat height after assembly.
To assemble C.T
.M. Mobility Scooter you should have the three scooter parts : front.
section, rear section and seat.
You will also need two batteries and a battery charger.
Follow these steps:
Use the
Tiller Angle Adjustment Lever to move the Tiller Angle Adjustment up out of the
way.(See Fig. 3)
Connect front and rear sections by linking latching hook (A) to pin (B).(See Fig. 4)
Pluging the two wire connectors (C)between the front and rear sections.(See Fig. 5)
Figure 3
Figure 3
Figure 4
Figure 4
Figure 5
Figure 5
Place batteries, one on each side of the seat post.(See Fig. 6)
Attach the power plugs (D).(See Fig. 7)
Figure 6
Figure 6
Figure 7
Figure 7

C.T.M. HS-665 Specifications

General

Brand	C.T.M.
Model	HS-665
Category	Scooter
Language	English
