Instruction Booklet7-Series
Tall Back Rotating
Seat-Sliding Adjustment
Tilting
Armrest
Seat Rotation
13" Rear Wheels
Mirror Delta handle bar
Front Basket
Tiller Angle Adjustment
Seat Slide
Head Light
Front
Bumper
11" Front Wheels
Self-diagnostic
Warning Light
Power Reserve
Indicator
Amrest Width
Adjustment
Thumbscrews
Rear Light
and Turn
Signals
Free-Wheels
Lever
Anti-Tip Wheels
Warning
button
Horn
button
Speed
Control Knob

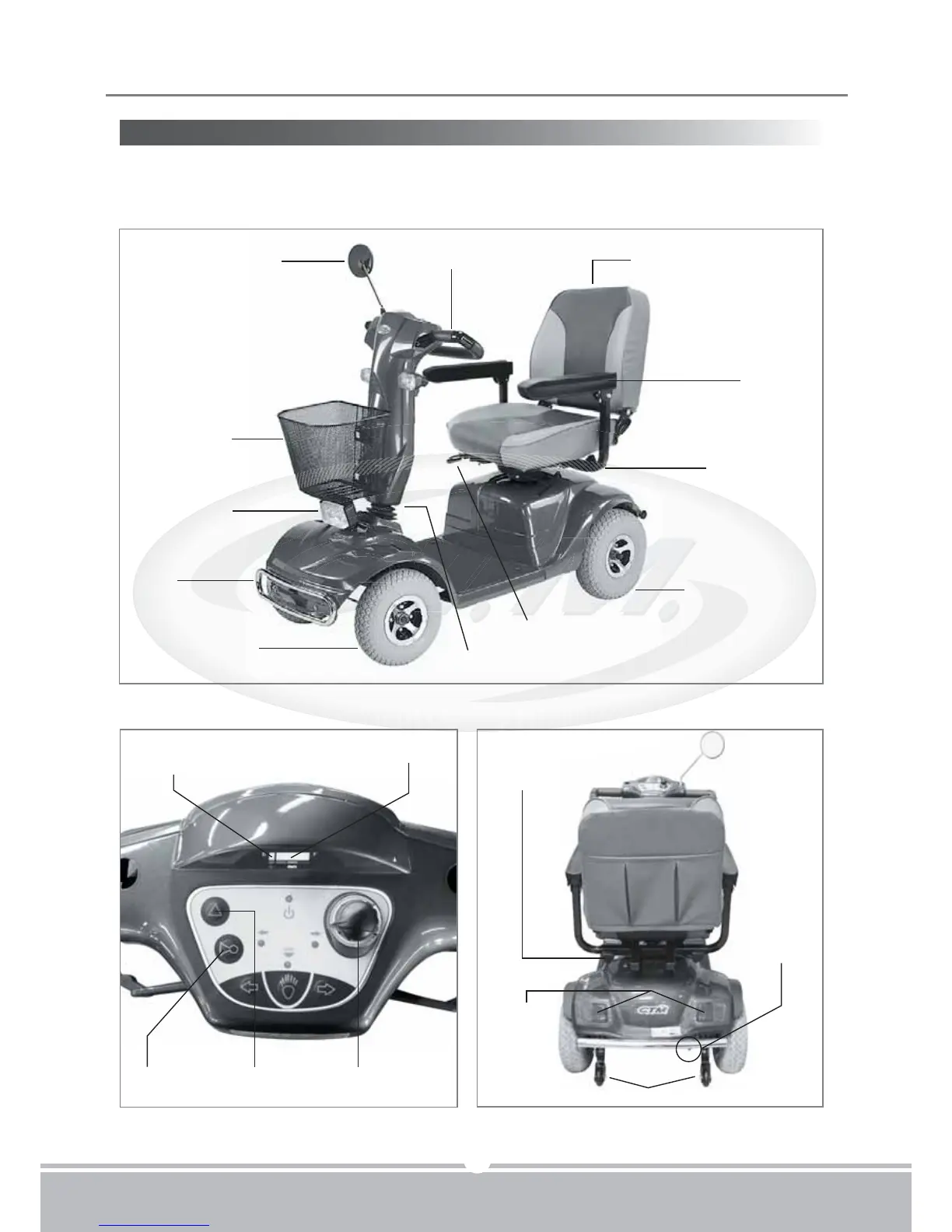

Figure 1 - HS-740 Scooter Front View
Figure 2 - HS-740 Controls Panel Top View
Figure 3 - HS-740 Scooter Rear View
IDENTIFICATION OF PARTS
5
Before attempting to drive this scooter on your own, it is important that you familiarize
yourself with the controls, and how to operate
