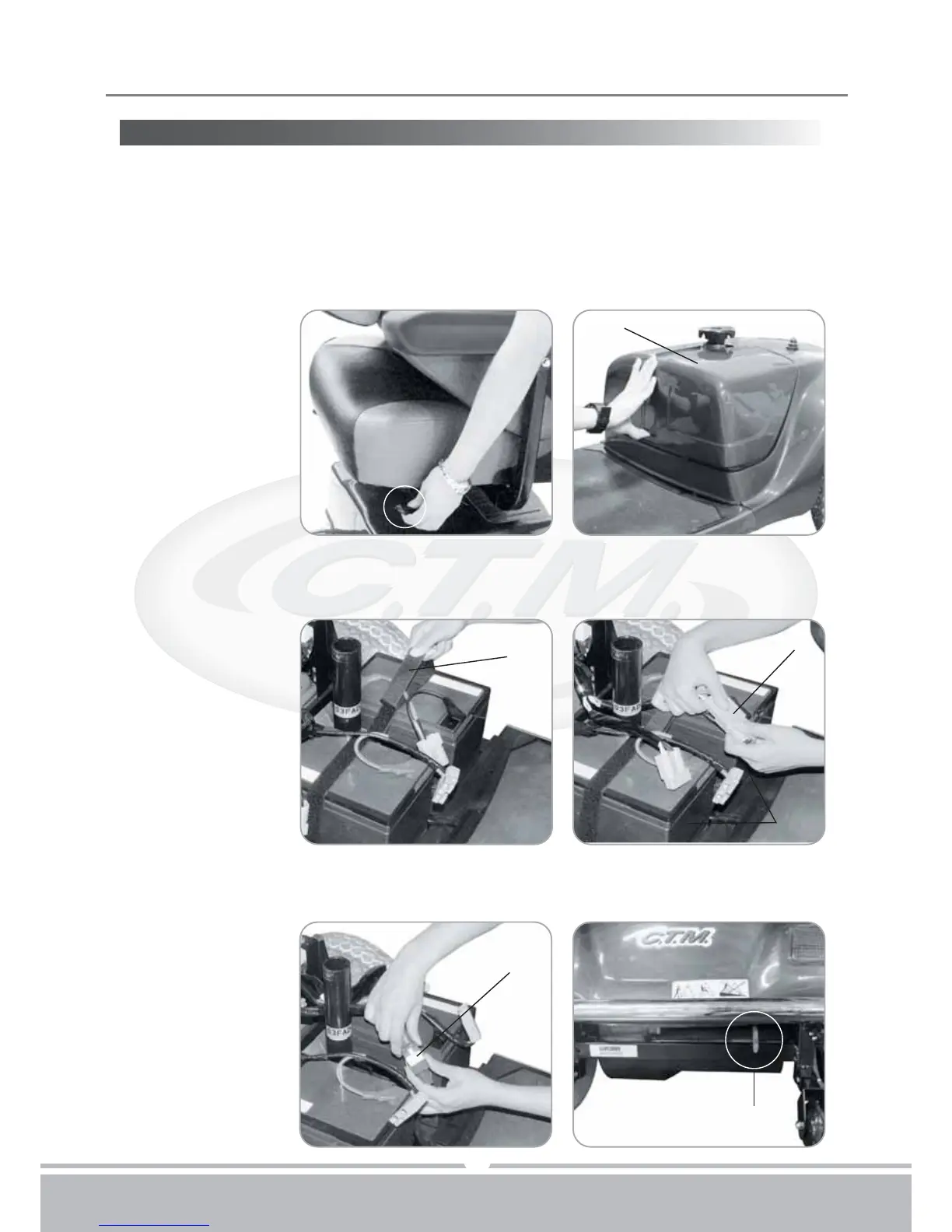

DISASSEMBLING YOUR SCOOTER
No tools are necessary to disassemble scooter. You can disassemble scooter for
transportation.
Remove seat by releasing Seat Rotation Lever (A) and then lift off. (See Fig. 4)
Remove Battery Cover (B) by pressing button in center.
(See Fig. 5)
Remove Battery Fixing Velcro (C). (See Fig. 6)
Detach Battery Power Plugs (D) and remove two batteries (E). (See Fig. 7)
Figure 4
Figure 4
Figure 5
Figure 5
Figure 6
Figure 6
Figure 7
Figure 7
Unplug Wire Connect (F) between the front rear units. (See Fig. 8)
Unscrew the Free-Wheeling Knob (G). (See Fig. 9)
Figure 9
Figure 9
Figure 8
Figure 8
A
B
C
F
G
D
E
