Instruction Booklet8-Series
Figure 8
Figure 8
Figure 9
Figure 9
Figure 10
Figure 10
Figure 11
Figure 11
Figure 13
Figure 13
Figure 12
Figure 12
(B)
(C)
(D)
(G)
(H)
(F)
(E)
10

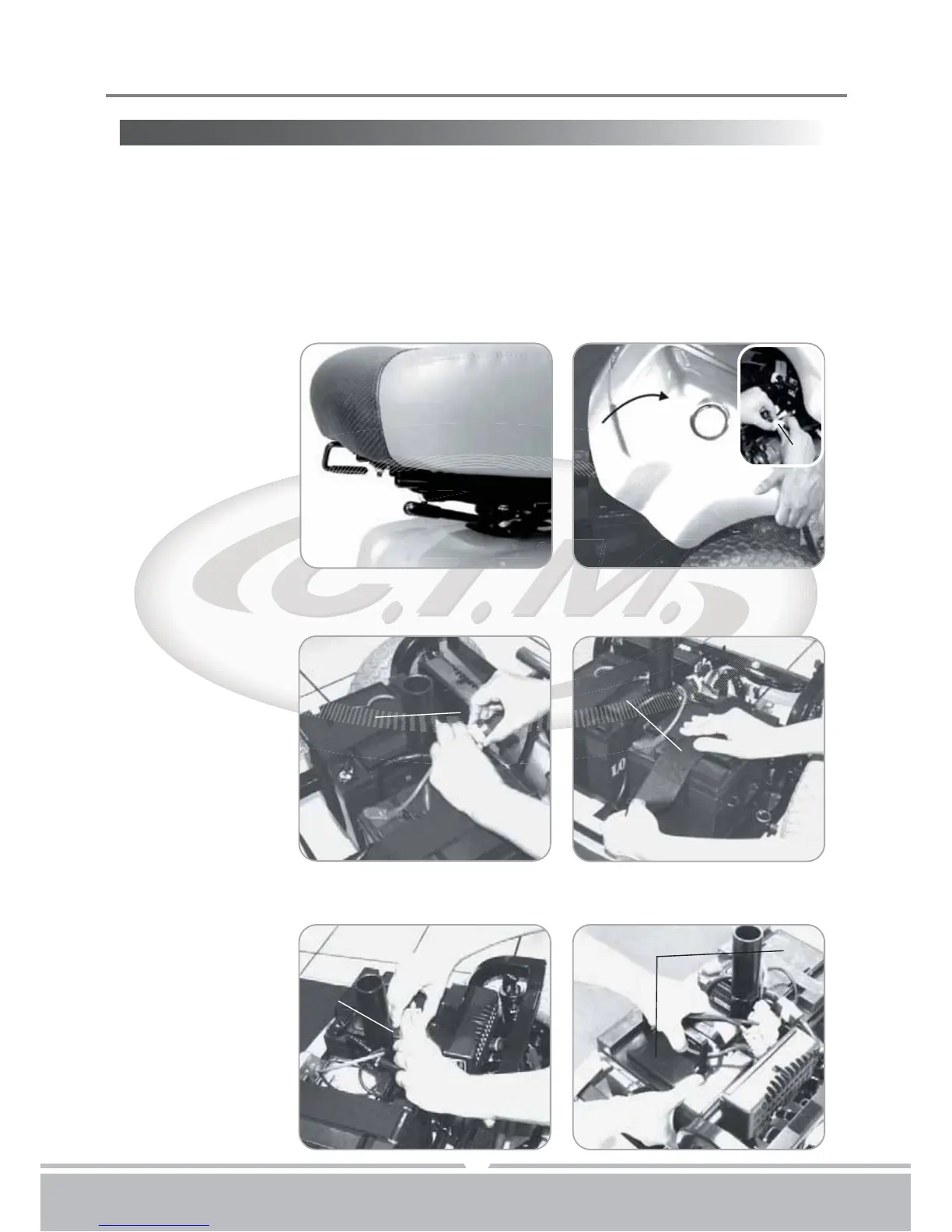

DISASSEMBLING YOUR SCOOTER
Extreme care must be taken when assembling or disassembling the scooter. Please take
care near any moring parts and finger traps,between opening and closing parts. Taking
apart your scooter enables you to save space when keeping it in storage or to carry it
a
long in your vehicle when going away from home. Having the scooter disassembled is
e
asier than ever since no tools are required. please follow these steps:
Remove seat by pulling Seat Rotation Lever (B) up and then lift seat off. (See Fig. 8)
B
efore remove Rear Shroud (C) off scooter, detach the rear lighting wiring harnesses
(D). (See Fig. 9)
Unscrew Main Wire Harness (E) between front and rear units. (See Fig. 10)
R
emove Battery Fixing Velcro (F). (See Fig. 11)
Detach Battery Power Plugs (G). (See Fig. 12)
Remove Batteries (H). (See Fig. 13)
