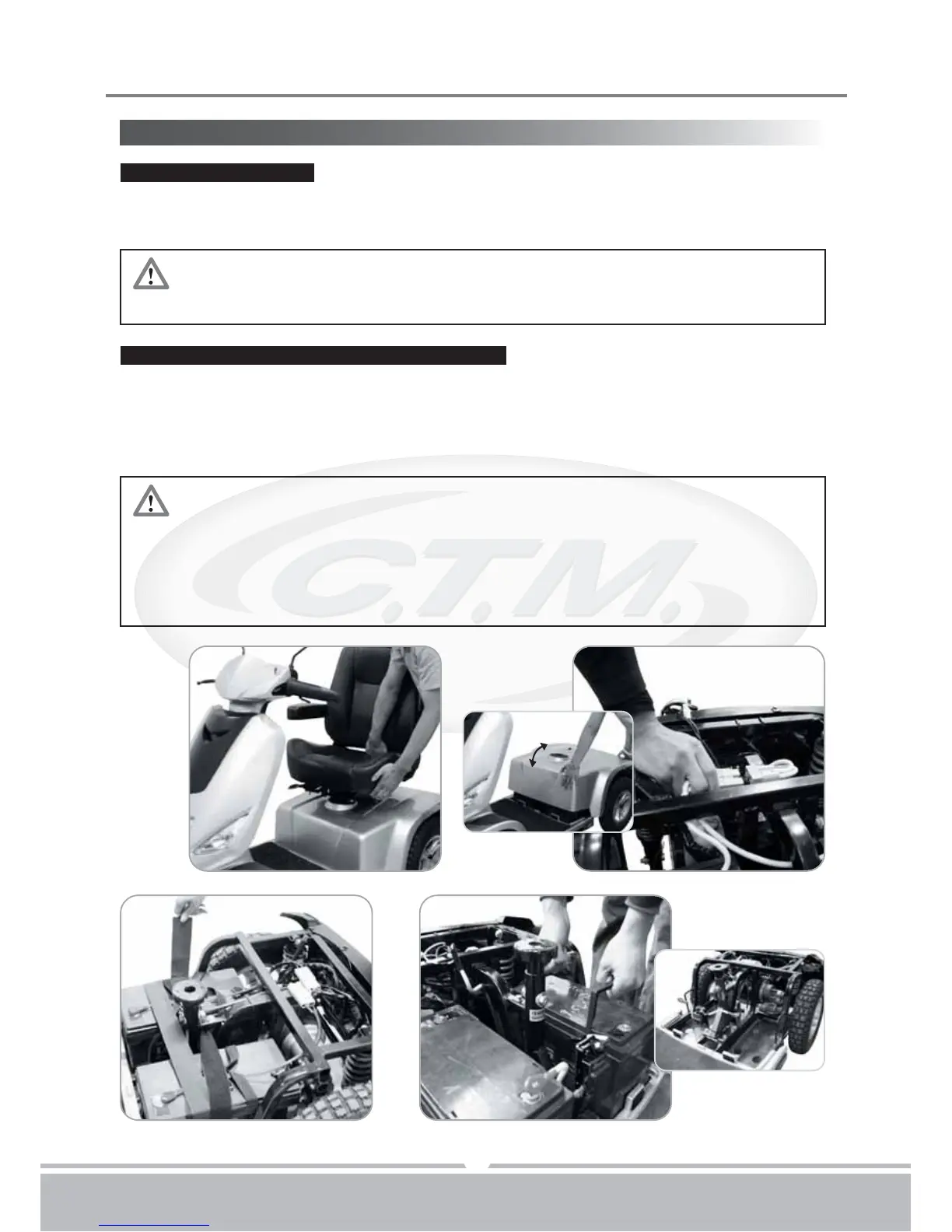

C.T.M. HS-928 Instruction Booklet

Instruction Booklet9-Series
If found the seat (P) uneasy to remove, hold seat swivel lever (R), and then
rotate the seat to reduce resistance then pull up.
Proceed with caution, if you need assistance, please have some one to help you
Take into account the heavy weight of the batteries (C1) please consider
your physical condition before disassembling.
DO NOT short-circuit battery terminals (C1).
Battery's red wire plug connects to red positive location, black wire plug
connects to black negative location.
For safety reason, please wash your hands after disassembly.
Pull the lever (T) upwards to disengage the seat (P), hold the seat (P) firmly by the
backrest and front edge and remove it upwards.
Seat (P) disassembling :
1.Remove rear shroud (Z) upwards. (Figure 18)
2.Unplug one battery connector (A1) (Figure 19)
3.Release Velcro (B1) (Figure 20)
4.Remove two batteries (C1) (Figure 21)
Rear Shroud (Z) and Batteries (C1) Disassembling :
13
DISASSEMBLING YOUR SCOOTER
Figure 18
Figure 18
Figure 19
Figure 19
(P)
(T)
Figure 20
Figure 20
(B1)
Figure 21
Figure 21
(C1)
(C1)
(A1)
(Z)
