Instruction Booklet9-Series

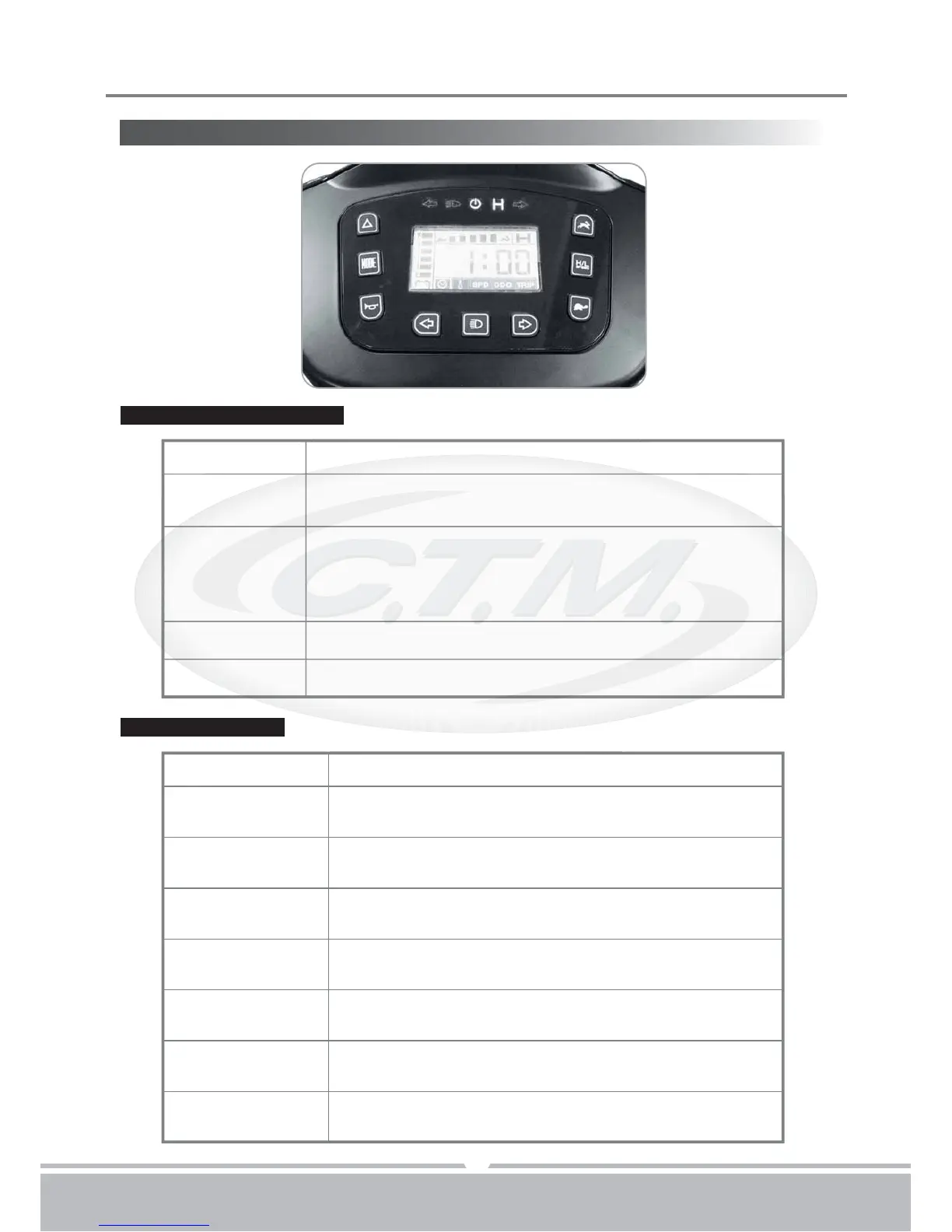

Function Buttons & Indicators
15
LCD DISPLAY PANEL
Figure 25
Figure 25
ITEM SPECIFICATION
Control Buttons
LED Indicators
Connector
LCD Back Light
Hazard Light, Horn, Right Turn Light, Headlight, Left Turn
Light, Turtle(decelerate), H/L Speed, Rabbit(accelerate)
Status Indicator (Green)
Headlight Indicator (Green)
Left / Right Indicators (Green)
High/Low Speed Indicator (Green)
20PIN
Blue LEDs illuminate while key on.
Function Descriptions
FUNCTION SPECIFICATION
1.Full Lighting
Control
2.Speedometer
3.Digital High / Low
Speed Control
4.Power Indicator
5.Malfunction
Messages
6.Key On Display
7.Warning Tone
Setup
Headlight , Taillight, Left/Right Turn Signal, Hazard
Light, Brake Light
7 Segment display (2 1/2 digits +1 decimal)
"km/h" and "mph" symbol
Low (L) Speed: 1 - 5 Rate
High (H) Speed: 1 - 5 Rate
Battery discharge and charging indicator (6 segments)
Error code: 1~7 (1 digit) + LED Indicator
LCD full segments display
Volume adjustment for tones of Left/Right turn light,
Parking light, Low voltage warning and horn
