Charge Status
ITEM DESCRIPTIONS

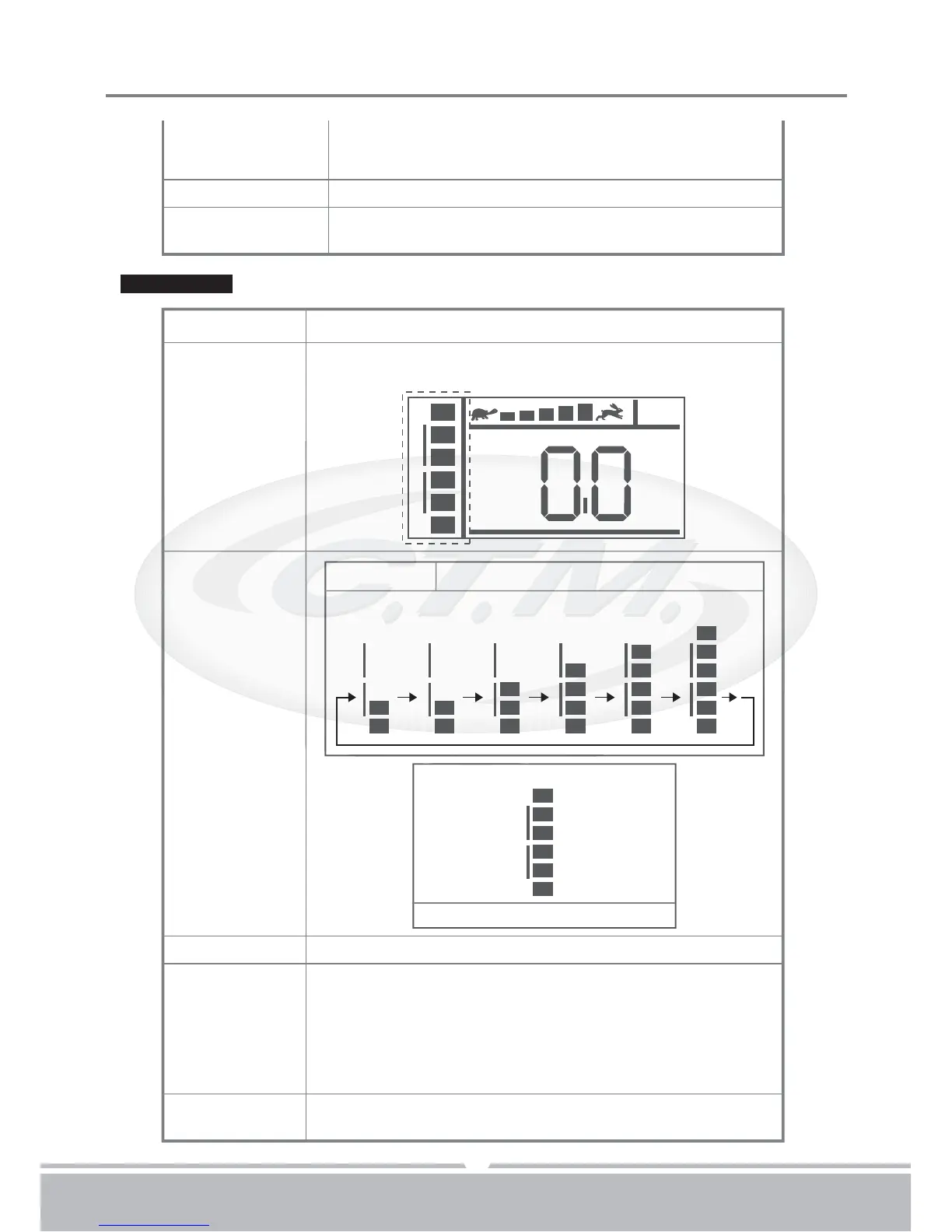

Charge Status
The charging status displays with segments cycling,
increasing only, won't decrease.
Increasing ratio 0.5 second
Operation
Feature
(1) The segments will increase only, won¡¦t decrease.
(2) Take PIN3 (CH3) of charger as determinant signal. No
matter of KEY ON or KEY
OFF, the charging mode will
be activated once CH3 is connected to Ground(L)
(3)
The LCD back light will be ON while any button is pressed.
It will light off automatically in 5 seconds if no button
has been pressed.
Remarks
Displayed segments are for reference only. Please refer to
indicator of charger for more accurate charging status.
Charging
Indicating
Flicker Frequency Once per two seconds
Usage Condition
While (1) controller shut down (2) in charging-mode,
the function will be disabled.
Low Voltage
Warning Tone
When the battery capacity is lower than 30%, the warning
tone will be beeped once with "BiBi － BiBi -- BiBi"
3 short double beeps.
24
Capacity(%)
40% 55% 70% 80% 90%
Display status of segments
displays with 6 segments
F
E
F
E
F
E
F
E
F
E
F
E
100%
F
E
