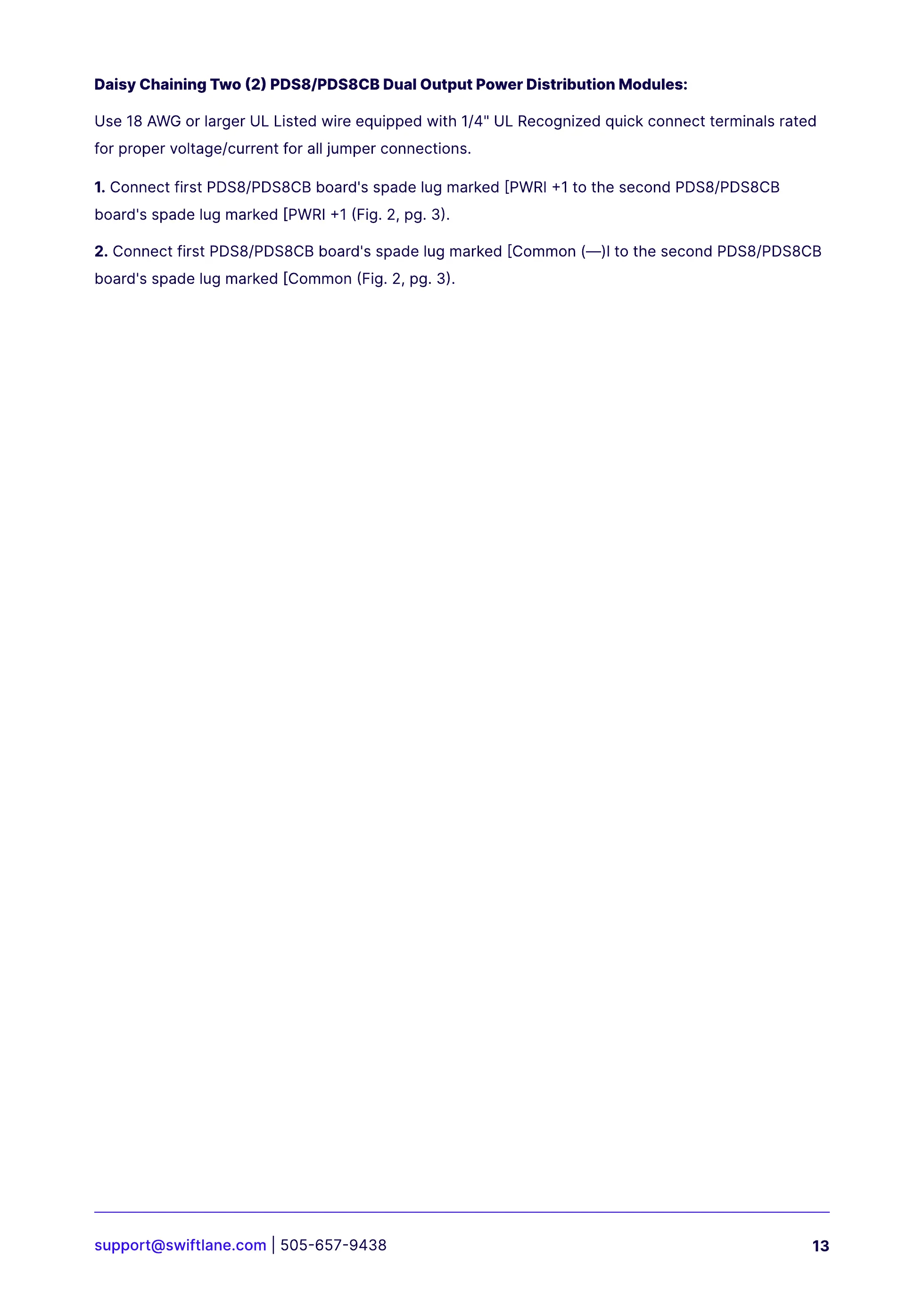

Daisy Chaining Two (2) PDS8/PDS8CB Dual Output Power Distribution Modules:

Use 18 AWG or larger UL Listed wire equipped with 1/4" UL Recognized quick connect terminals rated

for proper voltage/current for all jumper connections.

1. Connect first PDS8/PDS8CB board's spade lug marked [PWRI +1 to the second PDS8/PDS8CB

board's spade lug marked [PWRI +1 (Fig. 2, pg. 3).

2. Connect first PDS8/PDS8CB board's spade lug marked [Common (—)l to the second PDS8/PDS8C

board's spade lug marked [Common (Fig. 2, pg. 3).
