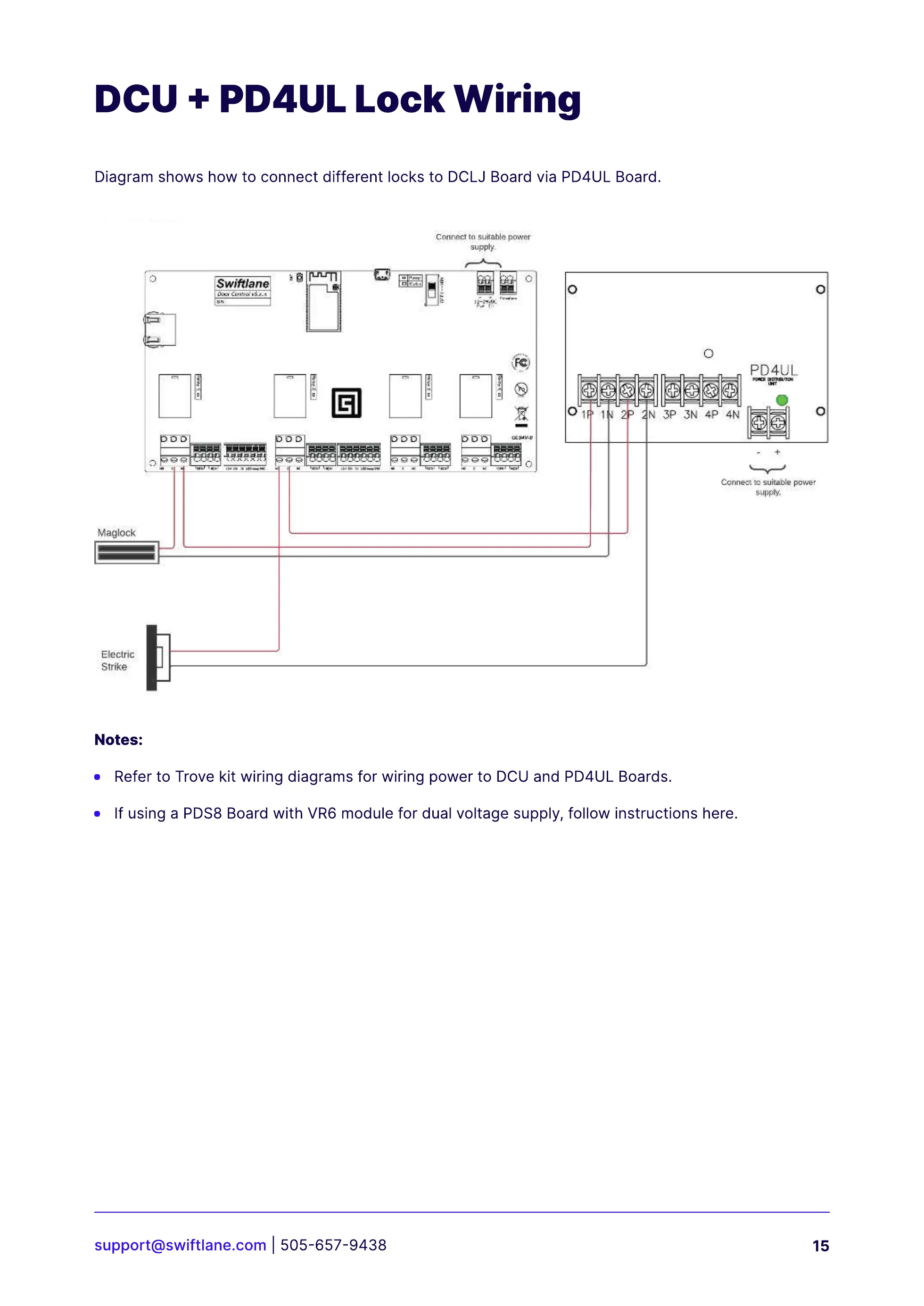

Diagram shows how to connect different locks to DCLJ Board via PD4UL Board.
DCU + PD4UL Lock Wiring
Notes:
Refer to Trove kit wiring diagrams for wiring power to DCU and PD4UL Boards.
If using a PDS8 Board with VR6 module for dual voltage supply, follow instructions here.
