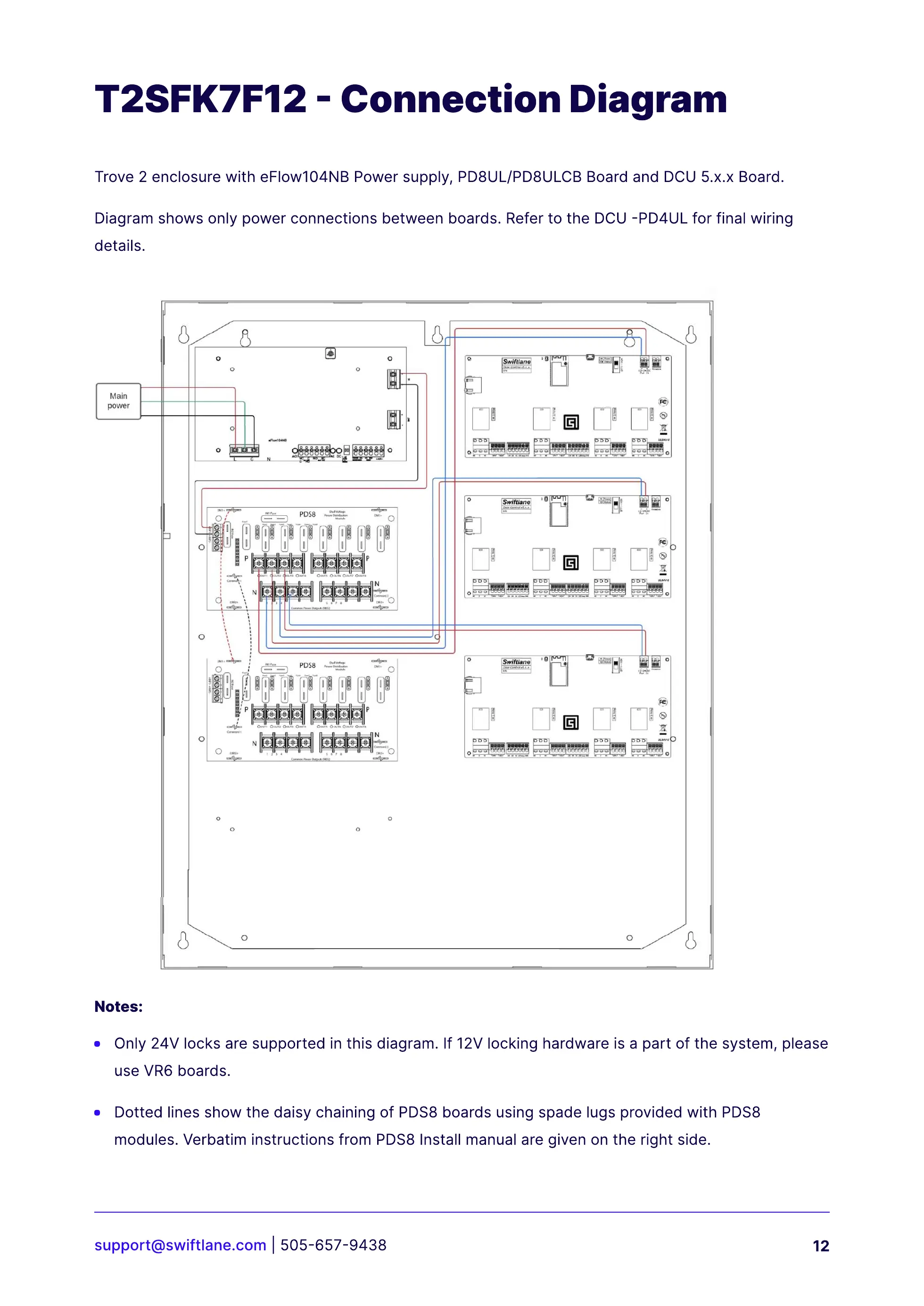

Trove 2 enclosure with eFlow104NB Power supply, PD8UL/PD8ULCB Board and DCU 5.x.x Board.
Diagram shows only power connections between boards. Refer to the DCU -PD4UL for final wiring
details.
T2SFK7F12 - Connection Diagram
Notes:
Only 24V locks are supported in this diagram. If 12V locking hardware is a part of the system, please
use VR6 boards.
Dotted lines show the daisy chaining of PDS8 boards using spade lugs provided with PDS8
modules. Verbatim instructions from PDS8 Install manual are given on the right side.
