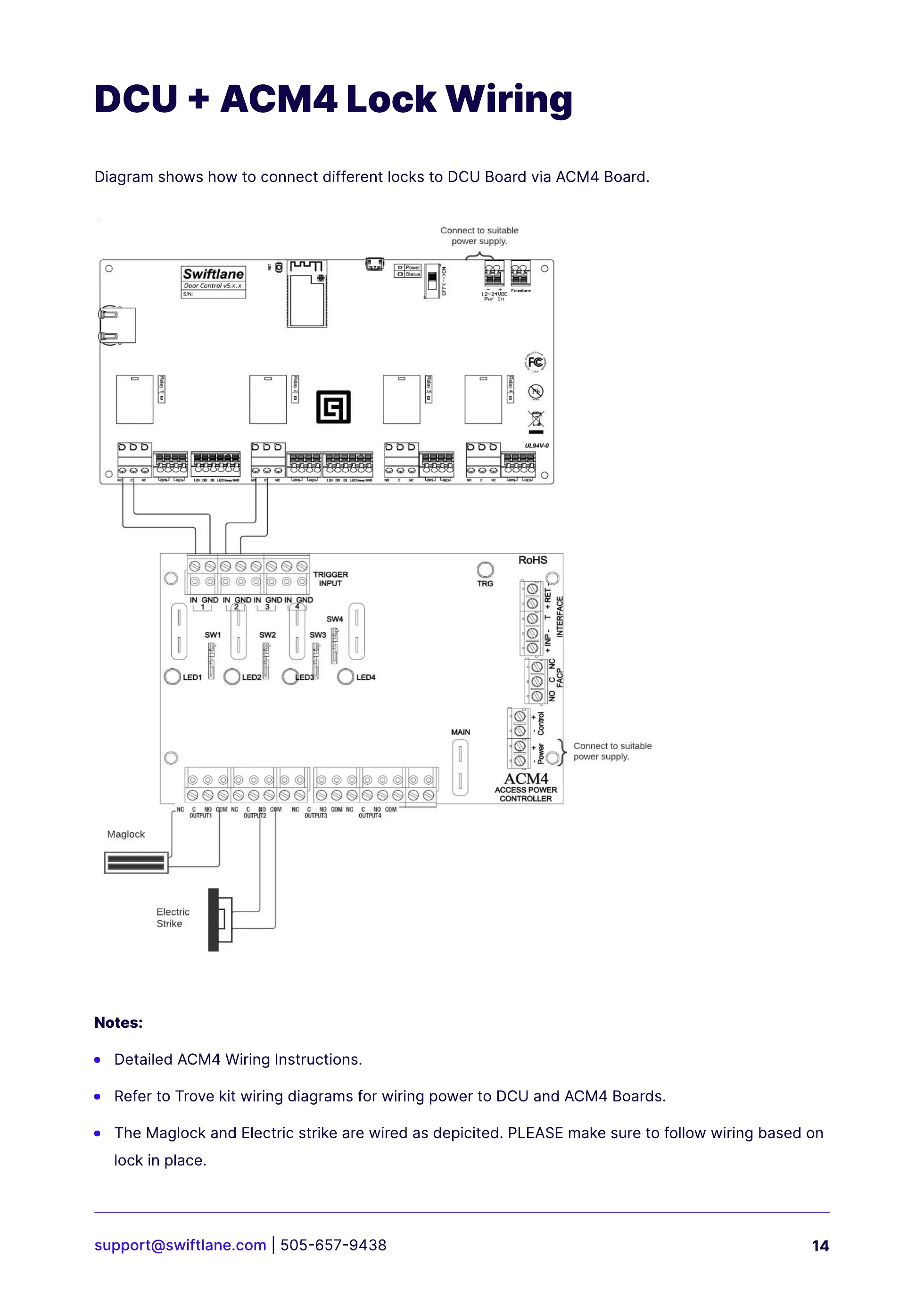

Diagram shows how to connect different locks to DCU Board via ACM4 Board.
DCU + ACM4 Lock Wiring
Notes:
Detailed ACM4 Wiring Instructions.
Refer to Trove kit wiring diagrams for wiring power to DCU and ACM4 Boards.
The Maglock and Electric strike are wired as depicited. PLEASE make sure to follow wiring based on
lock in place.
