Cabela's 46578 - Generator Controls and Features; Generator Component Identification

5 REV 46578-20140521
ENGLISH 46578
Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.

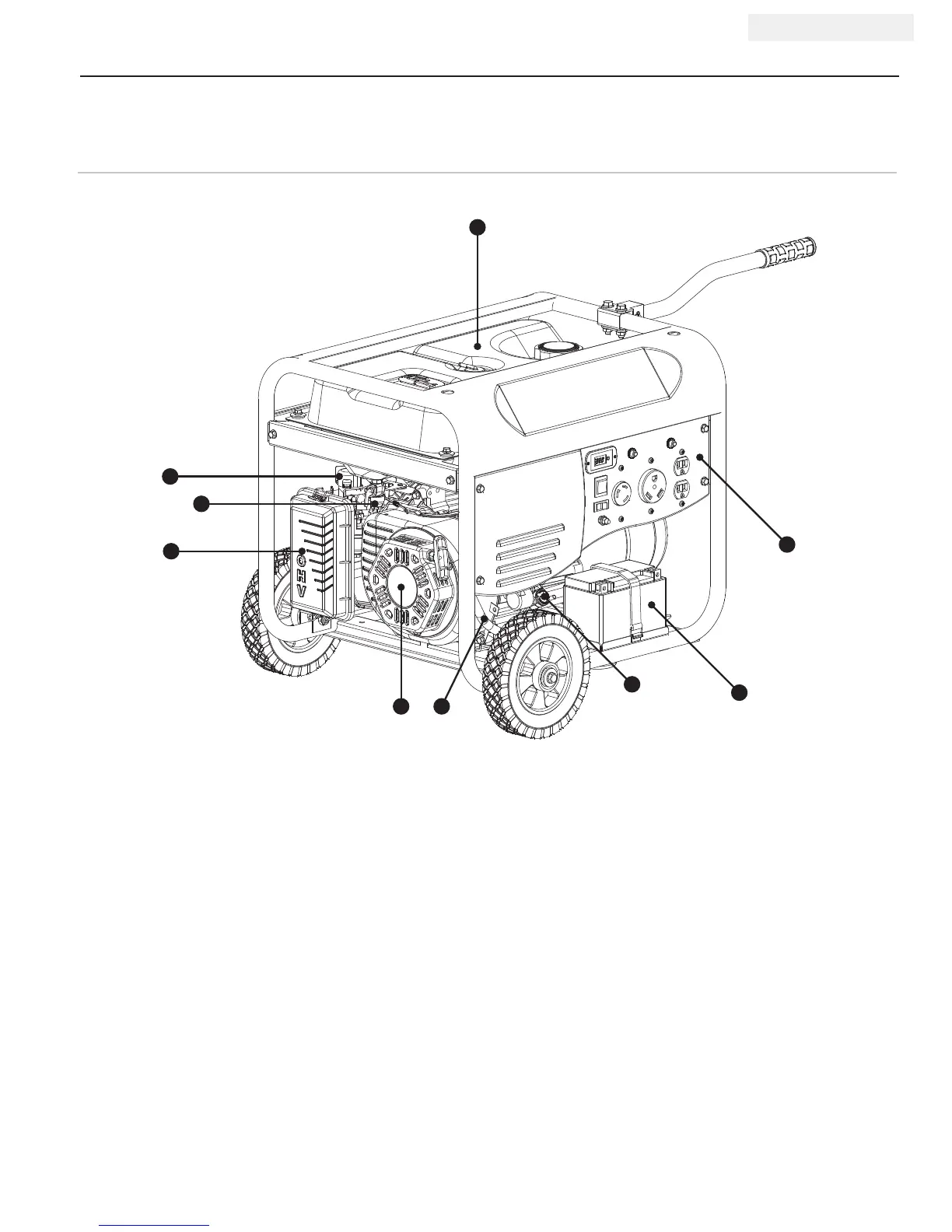

(1) Fuel Tank – 3.8 gal. (14.4 L) capacity fuel tank.
(2) Auto-Choke – Automatically chokes the engine
in wireless or electric start modes. No manual
adjustment required.
(3) Fuel Valve – Turn this valve to the “ON” position to
supply fuel to the engine.
(4) Air Filter – Protects the engine by filtering dust
and debris from the intake air.
(5) Recoil Starter – Used to manually start the engine.
(6) Quick Drain Tube – Used to easily and quickly
drain oil from the engine.
(7) Oil Filler Cap – Check and fill engine oil level.
(8) Battery – Used to start the engine. Provides 12V
DC to the electric starter and receiver control
module.
(9) Power Panel – See “Power Panel” section.
1
5 6
3
2
4
8
7
9
Generator
CONTROLS AND FEATURES
