OVERDRIVE BAR ADJUSTMENT.
The Overdrive Bar has a method of changing the bar length, to
suit different riding styles, or different sized kites.
OVERDRIVE OPERATION.
Adjustment from inside to Outside Setting.
• Lightly Push the upper end of the bar end in slightly.
This in turn releases the load on the catch mechanism.
• With the Upper section pushed in, pull down the Overdrive
Catch, and release the upper end of the bar end (FIG 1)
• Pull the upper end of the bar end outwards until you hear the
Catch connect. As a visual guide you will also see the catch
has now moved upwards into the bar end. (FIG 2)
• Repeat this process for the other end of the bar before flight.
Adjustment from Outside to Inside Setting.
• Lightly Push the upper end of the bar end outwards. This in
turn releases the load on the catch mechanism.
• With the Upper Section Pushed outwards, pull down on the
Overdrive Catch, and release the upper end of
the bar. (FIG 3)
• Push the Upper Section of the Bar end inwards until you hear
the Catch connect. As a visual guide you will also see the
catch has now moved upwards into the bar end. (FIG 4)
• Repeat this process for the other end of the bar before flight.
OVERDRIVE BAR ADJUSTMENT
• Wash the Overdrive 1X System frequently in fresh water. Do this by placing the complete bar
in a bucket of fresh water and allow it to sit for 5 minutes. While in the fresh water rotate the
Overdrive Harness Loop, and also operate the Overdrive Bar ends. Allow the Overdrive 1X
System to dry thoroughly before storing.
• Make sure that all sand is rinsed off from the Overdrive System before riding.
• Ensure that the Security Pin is firmly attached to the Overdrive Bridge (as mentioned on Page
17 FIG 8).
• Use the correct leash attachement point on the Overdrive System (as mentioned on page 18
FIG 2).
• Routinely operate the QR2 release.
• To aid in the longevity of the Overdrive Bar Ends, routinely flush water through the bar end
from the upper section down.
CAUTION: Be adivised to check that the bar ends
are functioning correctly before use, and both ends
are locked in the required position. (out/out or in/in).
OVERDRIVE CARE AND MAINTENANCE.

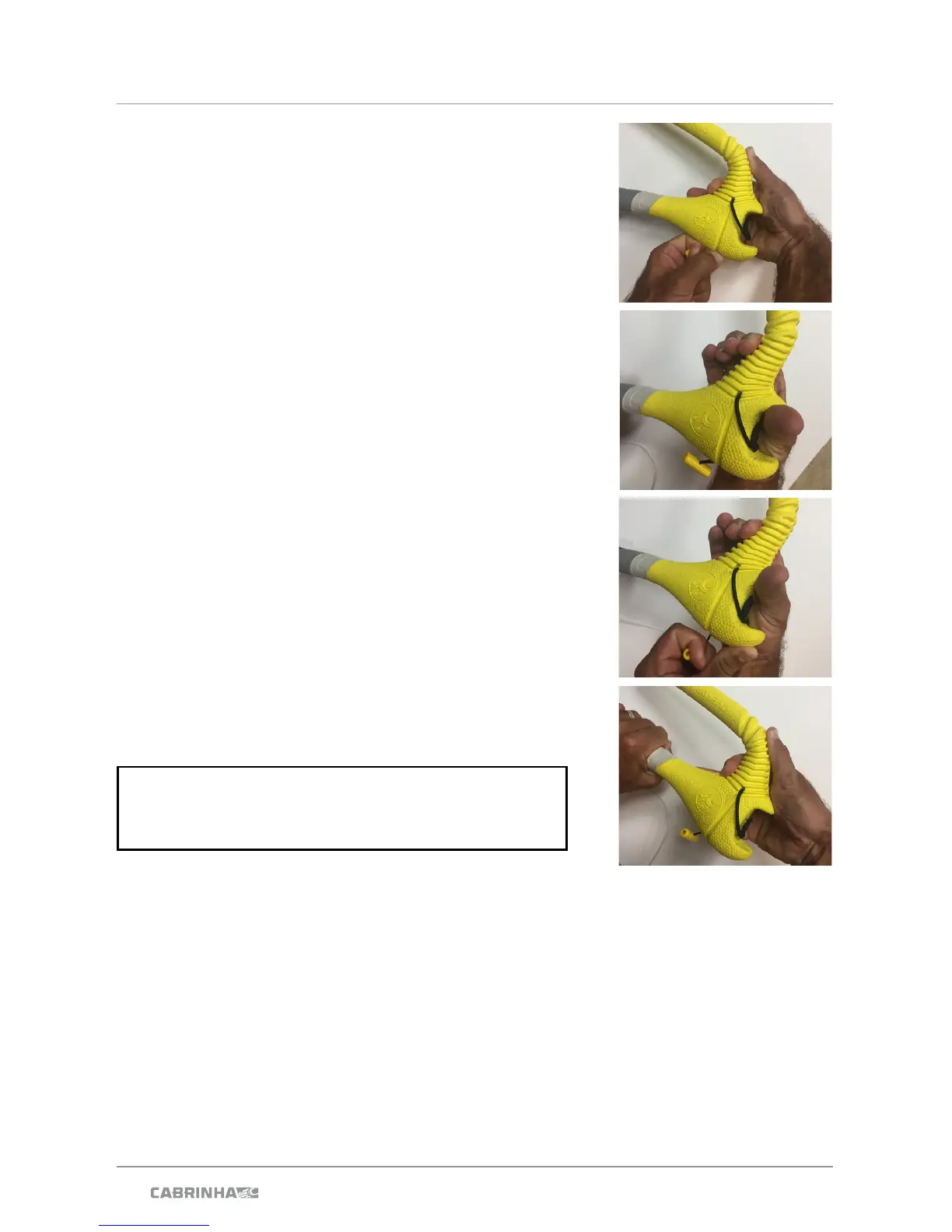

FIG 1
FIG 2
FIG 3
FIG 4
