CONTROL SYSTEM COMMON FEATURES - Crossbow CS, Powerdrive Carbon CS, Powerdrive Alloy CS
QUICK RELEASE SYSTEM (QRS)
You should be familiar with the operation of the QRS in the event of a situation where you wish to activate the QRS feature.

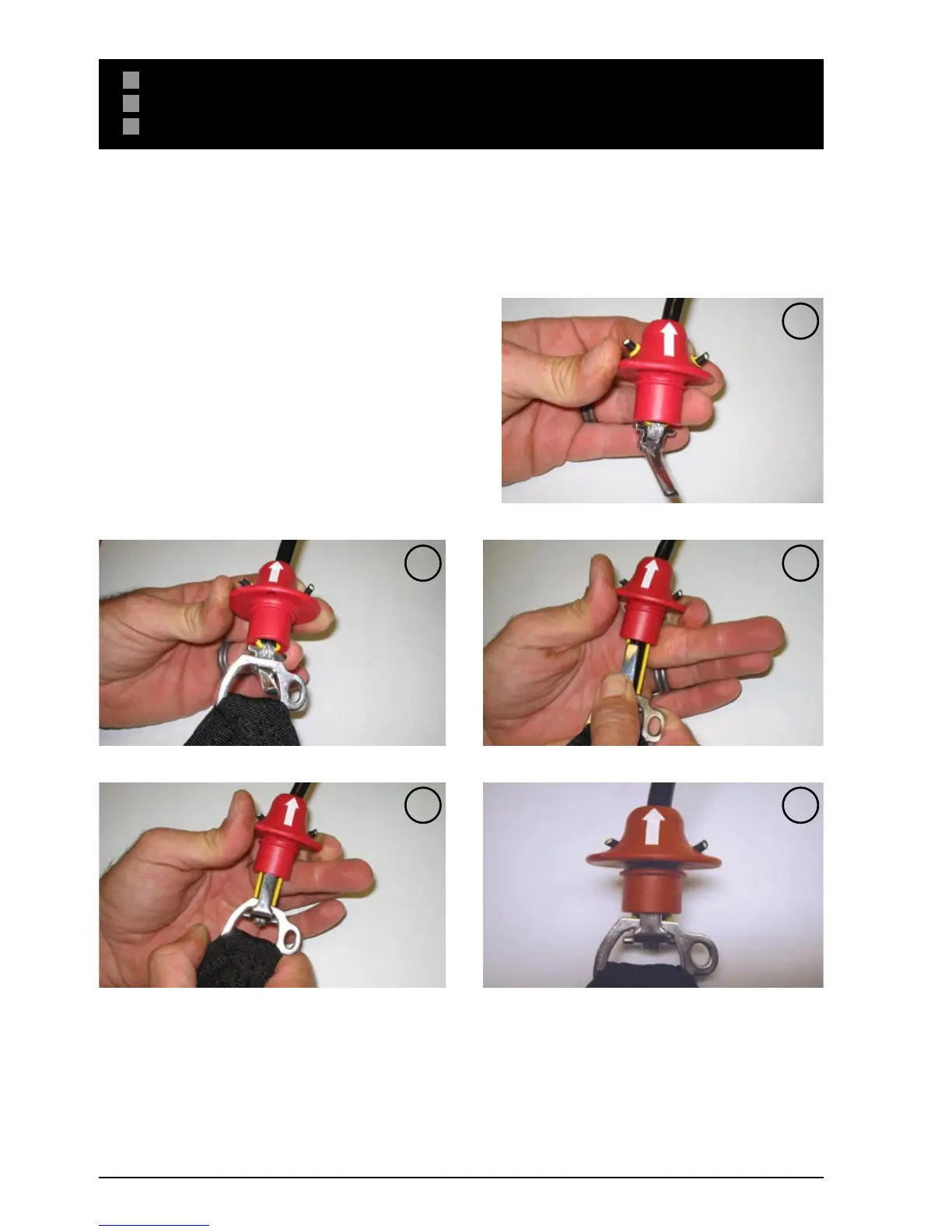

QRS - OPERATION
Grab the release body and pull up until the pin is free.
Under tension, the pin will release the harness loop. (Fig. 1)
QRS - SETTING / RESETTING
• Slide the QR Pin through the stainless steel Trapezoid. (Fig. 2)
• Fold the pin back over itself. (Fig. 3)
• Lift the QR Body up the Depower line. (Fig. 4)
• Lower the QR Body over the QR Pin. (Fig. 5)
• Your QR system is now ready for use.
