12
For three-phase charger, in a power supply system with a neutral line, the voltage between the
phase line and the neutral line cannot be higher than the rated voltage requirement (240VAC).

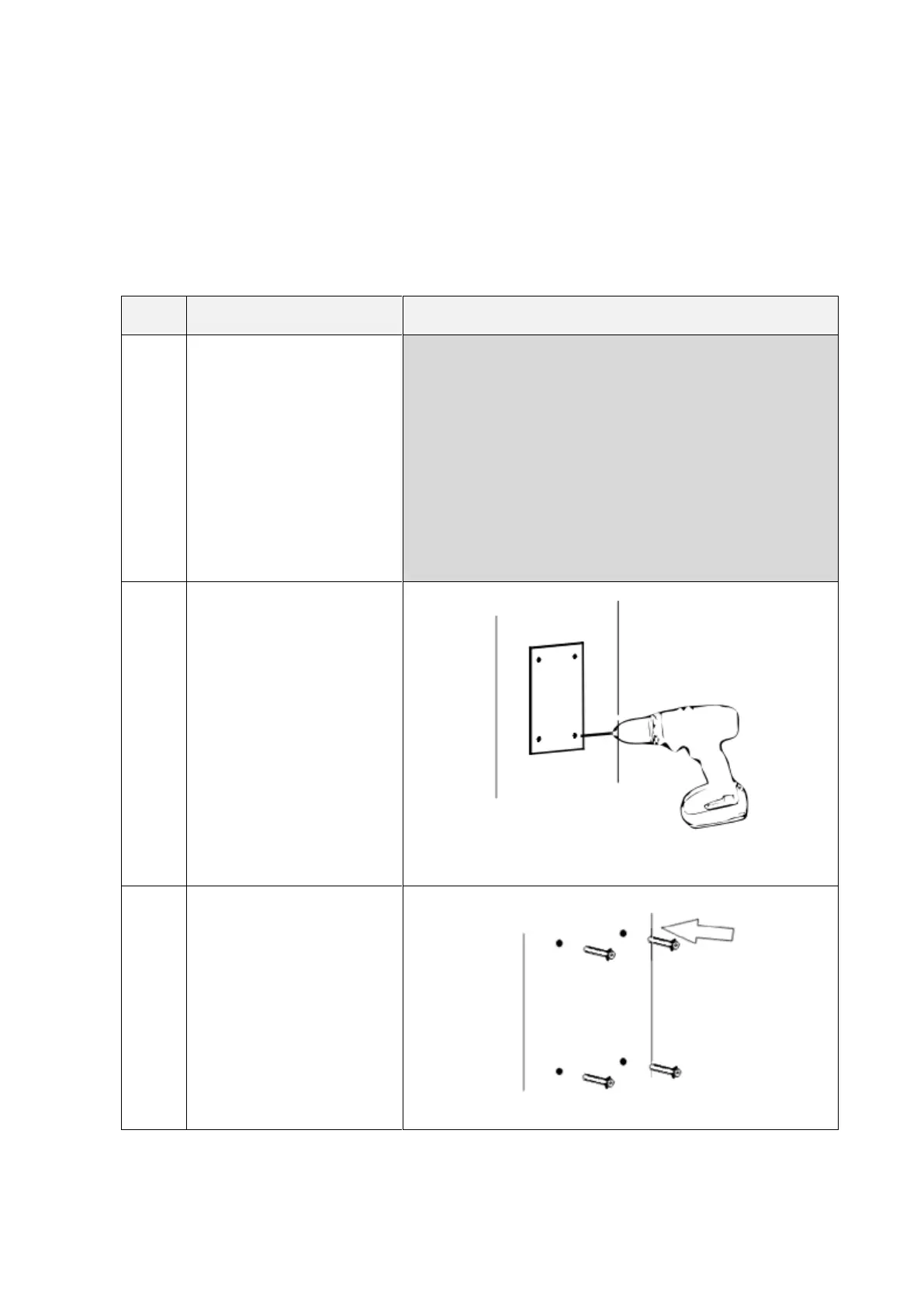

6.8 Installation steps
In the following all the steps to perform for a correct installation of the wallbox:
Open the package which
contains the charger and its
accessories.
Package content:
▪ the charger
▪ four expansion screws
▪ a mounting template
▪ a mounting metal
bracket (already
attached to the
charger rear side)
▪ one rubber gland for
the input cable
Lean the mounting template
against the wall. The height
from the centre of the template
to the ground should be
determined according to your
ideal height (1500mm is
recommended).
Check the template is fully
horizontally aligned.
Mark the expansion screw holes
positions on the wall.
Create the screw holes with a
tool.
Insert the four expansion bolts
into the four holes and just push
them manually or, in case of
resistance, by means of an
hammer
